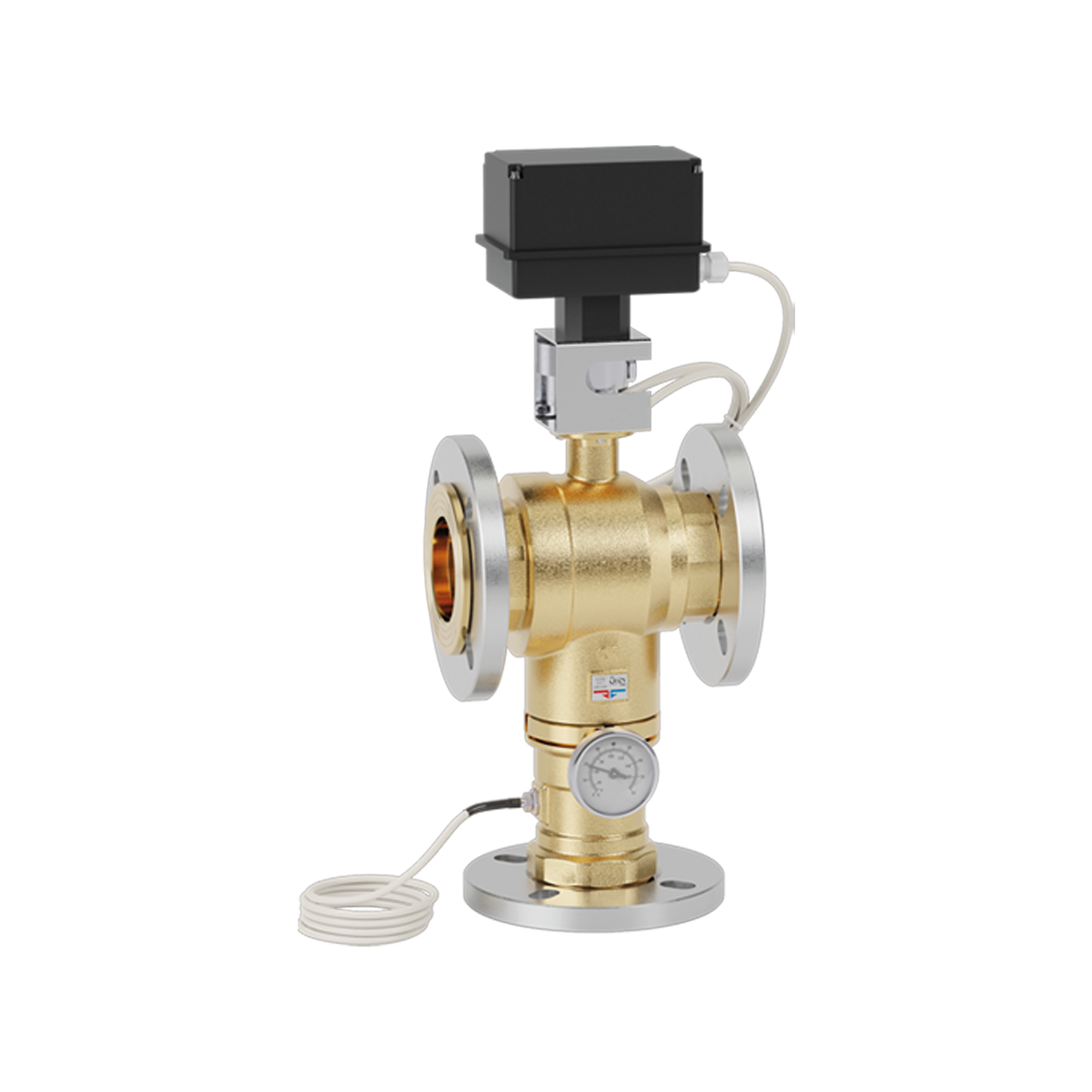

LEGIOMIX® flange, Electronic mixing valve (ANSI flange)
Product Description
Electronic mixing valve (ANSI flange)
115/24 VAC transformer included.
Technical data
Maximum operating pressure:
150 psi
Maximum static operating pressure:
230 psi
Adjustment temperature range:
70–185 °F
Maximum inlet temperature:
212 °F
Disinfection temperature range:
100–185 °F
Electric supply:
24 V (AC)
Power consumption at full capacity:
6 VA
Protection class:
IP 54
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 600060A | 2 1/2" ANSI 150 flange |
30 | |
|
3D models
Tender text
Electronic mixing valve (ANSI flange)
115/24 VAC transformer included. connection: 2 1/2" ANSI 150 flange. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 30.
|
|||
| 600080A | 3" ANSI 150 flange |
42 | |
|
3D models
Tender text
Electronic mixing valve (ANSI flange)
115/24 VAC transformer included. connection: 3" ANSI 150 flange. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 42.
|
|||
bim
