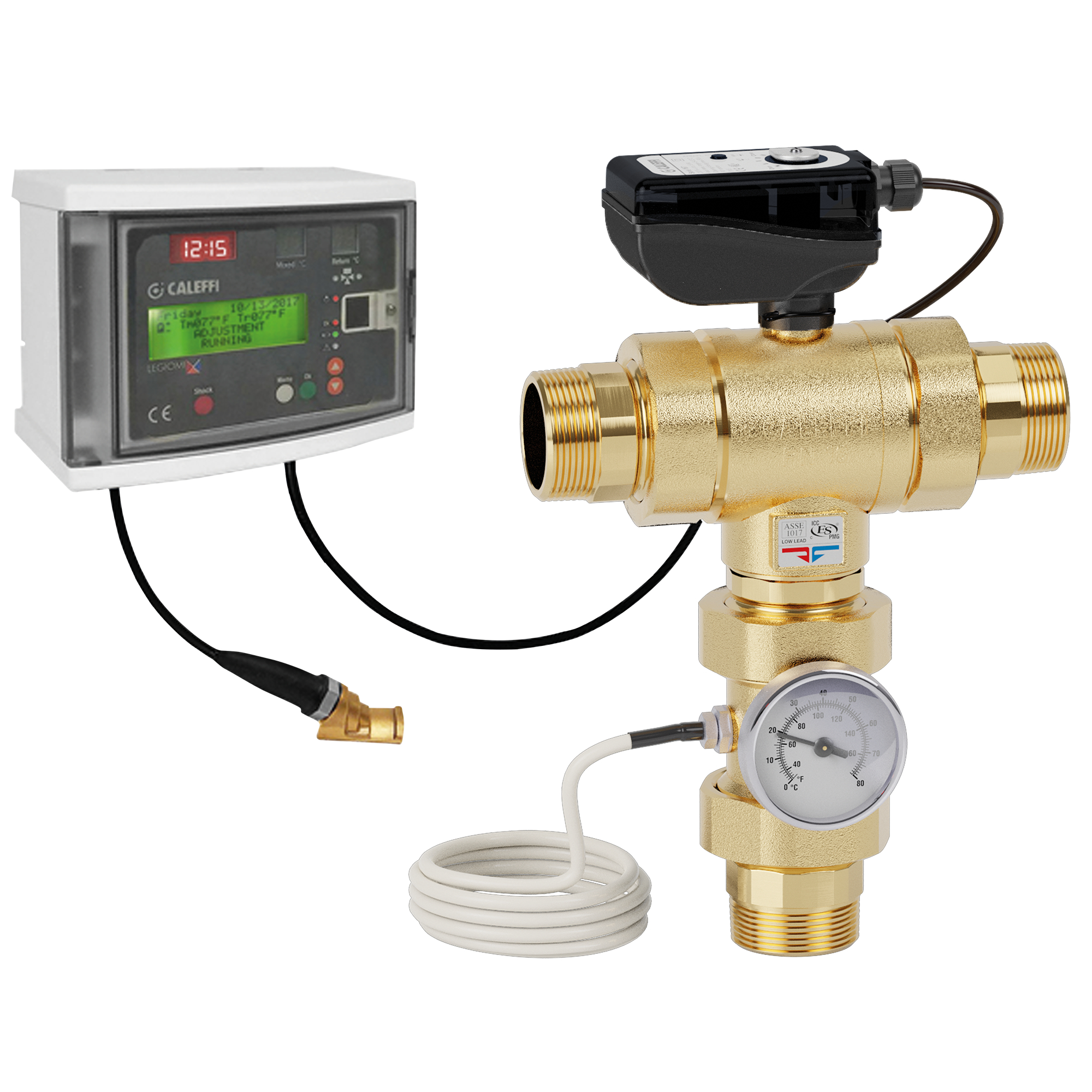

LEGIOMIX®, Electronic mixing valve (NPT)
Product Description
Electronic mixing valve (NPT)
115/24 VAC transformer included.
Technical data
Maximum operating pressure:
150 psi
Maximum static operating pressure:
230 psi
Adjustment temperature range:
70–185 °F
Maximum inlet temperature:
212 °F
Disinfection temperature range:
100–185 °F
Electric supply:
24 V AC
Power consumption at full capacity:
6 VA
Protection class:
IP 54
Certifications
pdf
Drawings and specifications
| Code | Connection | Cv | |
|---|---|---|---|
| 600054A | 3/4" MNPT union |
9.7 | |
|
3D models
Tender text
Electronic mixing valve (NPT)
115/24 VAC transformer included. connection: 3/4" MNPT, union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 9.7.
|
|||
| 600064A | 1" MNPT union |
21 | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Electronic mixing valve (NPT)
115/24 VAC transformer included. connection: 1" MNPT, union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 21.
|
|||
| 600064A 001 | 1" M NPT union |
9.7 | |
|
3D models
Tender text
Electronic mixing valve (NPT)
115/24 VAC transformer included. connection: 1" M NPT, union. Cv: 9.7.
|
|||
| 600074A | 1 1/4" MNPT union |
24 | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Electronic mixing valve (NPT)
115/24 VAC transformer included. connection: 1 1/4" MNPT, union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 24.
|
|||
| 600084A | 1 1/2" MNPT union |
31 | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Electronic mixing valve (NPT)
115/24 VAC transformer included. connection: 1 1/2" MNPT, union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 31.
|
|||
| 600094A | 2" MNPT union |
48 | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Electronic mixing valve (NPT)
115/24 VAC transformer included. connection: 2" MNPT, union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 48.
|
|||
bim
