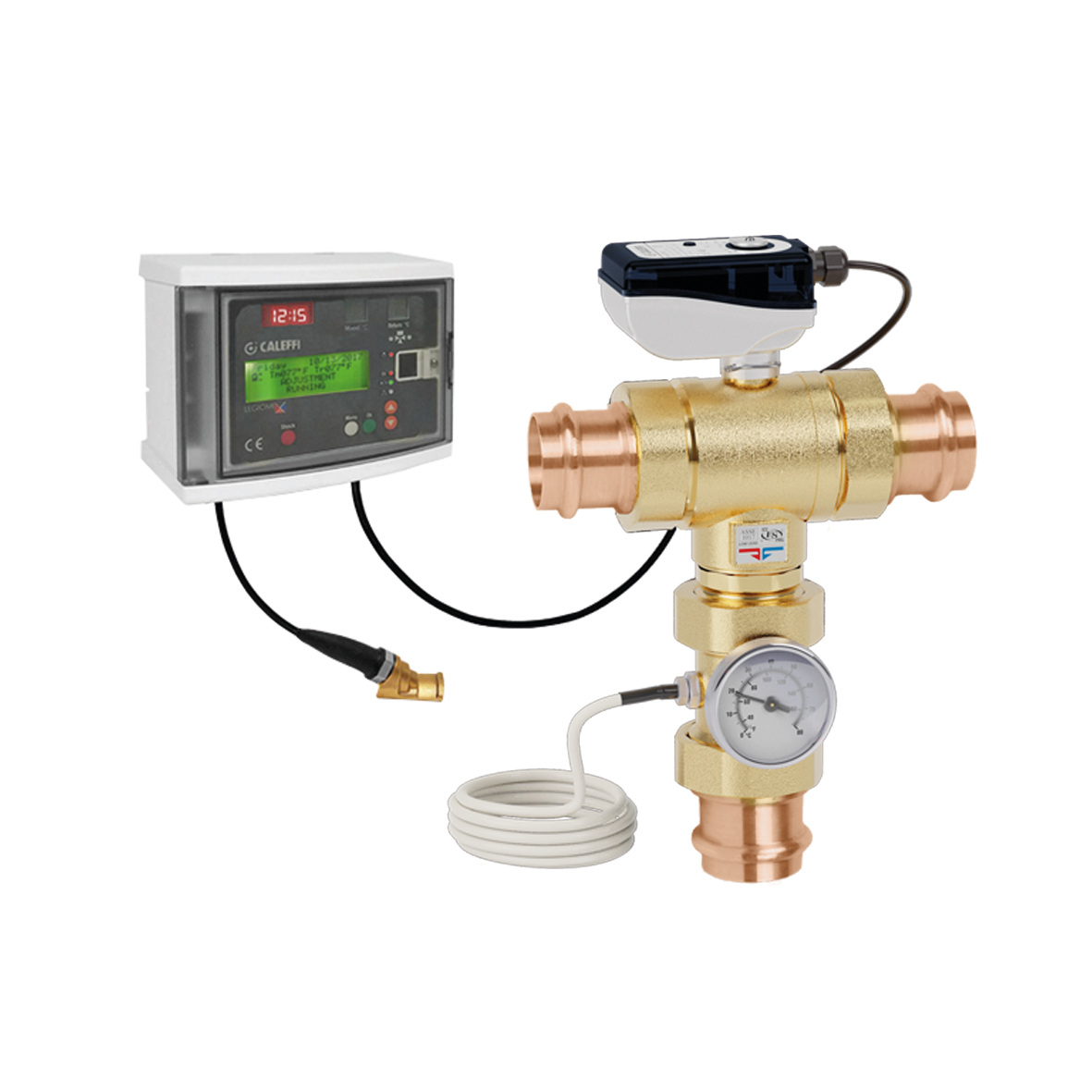

LEGIOMIX®, Electronic mixing valve (press)
Product Description
Electronic mixing valve (press)
115/24 VAC transformer included.
Technical data
Maximum operating pressure:
150 psi
Maximum static operating pressure:
230 psi
Adjustment temperature range:
70–185 °F
Maximum inlet temperature:
212 °F
Disinfection temperature range:
100–185 °F
Electric supply:
24 V (AC)
Power consumption at full capacity:
6 VA
Protection class:
IP 54
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 600056A | 3/4" press union |
5.1 | |
|
3D models
Tender text
Electronic mixing valve (press)
115/24 VAC transformer included. connection: 3/4", press union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 5.1.
|
|||
| 600066A | 1" press union |
7.3 | |
|
3D models
Tender text
Electronic mixing valve (press)
115/24 VAC transformer included. connection: 1", press union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 7.3.
|
|||
| 600066A 001 | 1" press union |
9.7 | |
|
3D models
Tender text
Electronic mixing valve (press)
115/24 VAC transformer included. connection: 1", press union. Cv: 9.7.
|
|||
| 600076A | 1 1/4" press union |
8.2 | |
|
3D models
Tender text
Electronic mixing valve (press)
115/24 VAC transformer included. connection: 1 1/4", press union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 8.2.
|
|||
| 600086A | 1 1/2" press union |
21 | |
|
3D models
Tender text
Electronic mixing valve (press)
115/24 VAC transformer included. connection: 1 1/2", press union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 21.
|
|||
| 600096A | 2" press union |
22 | |
|
3D models
Tender text
Electronic mixing valve (press)
115/24 VAC transformer included. connection: 2", press union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 22.
|
|||
