LEGIOMIX®, Electronic mixing valve (sweat)
Product Description
Electronic mixing valve (sweat)
115/24 VAC transformer included.
Technical data
Maximum operating pressure:
150 psi
Maximum static operating pressure:
230 psi
Adjustment temperature range:
70–185 °F
Maximum inlet temperature:
212 °F
Disinfection temperature range:
100–185 °F
Electric supply:
24 V AC
Power consumption at full capacity:
6 VA
Protection class:
IP 54
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|

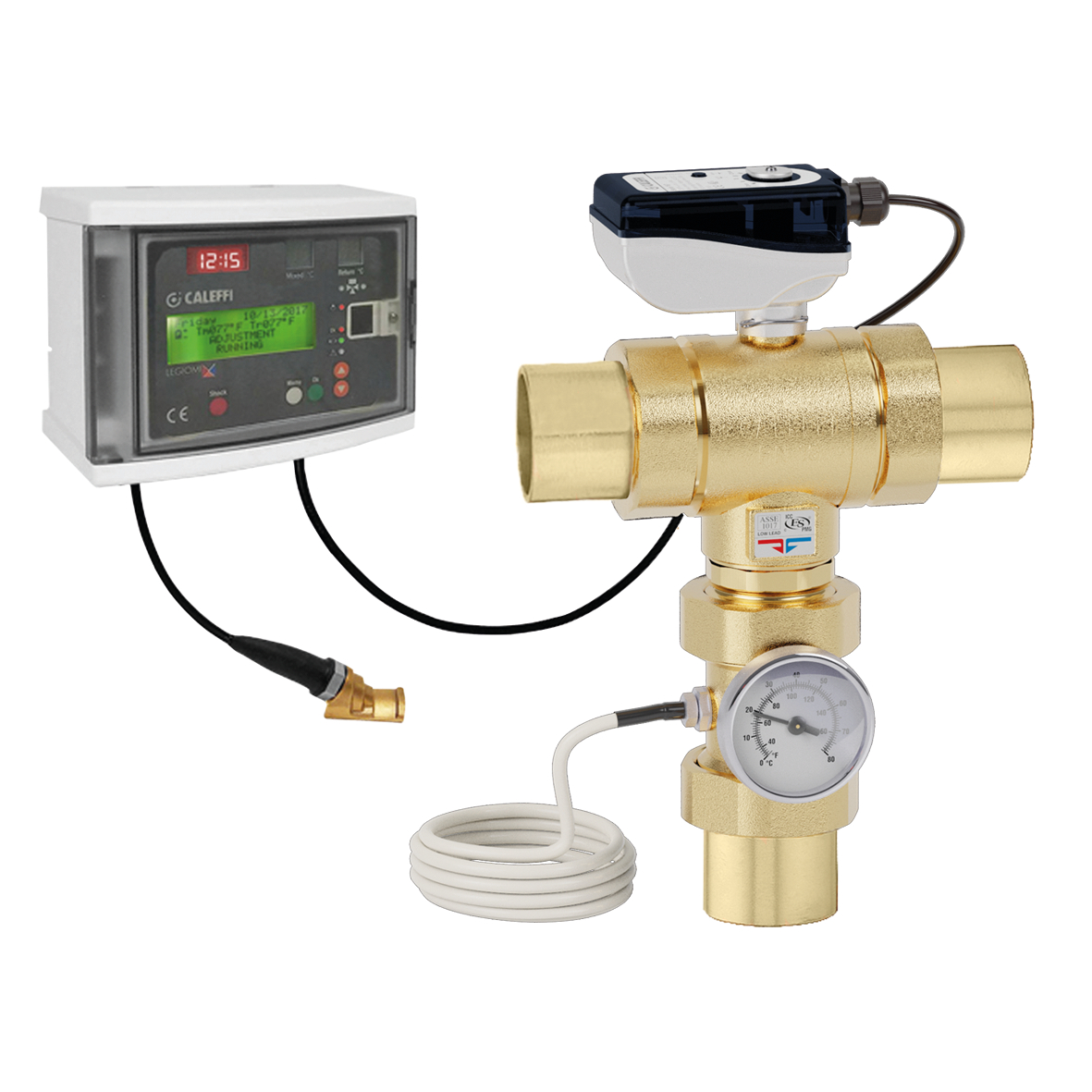

| 600059A | 3/4" sweat union |
9.7 | |
|
3D models
Tender text
Electronic mixing valve (sweat)
115/24 VAC transformer included. connection: 3/4", sweat union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 9.7.
|
|||

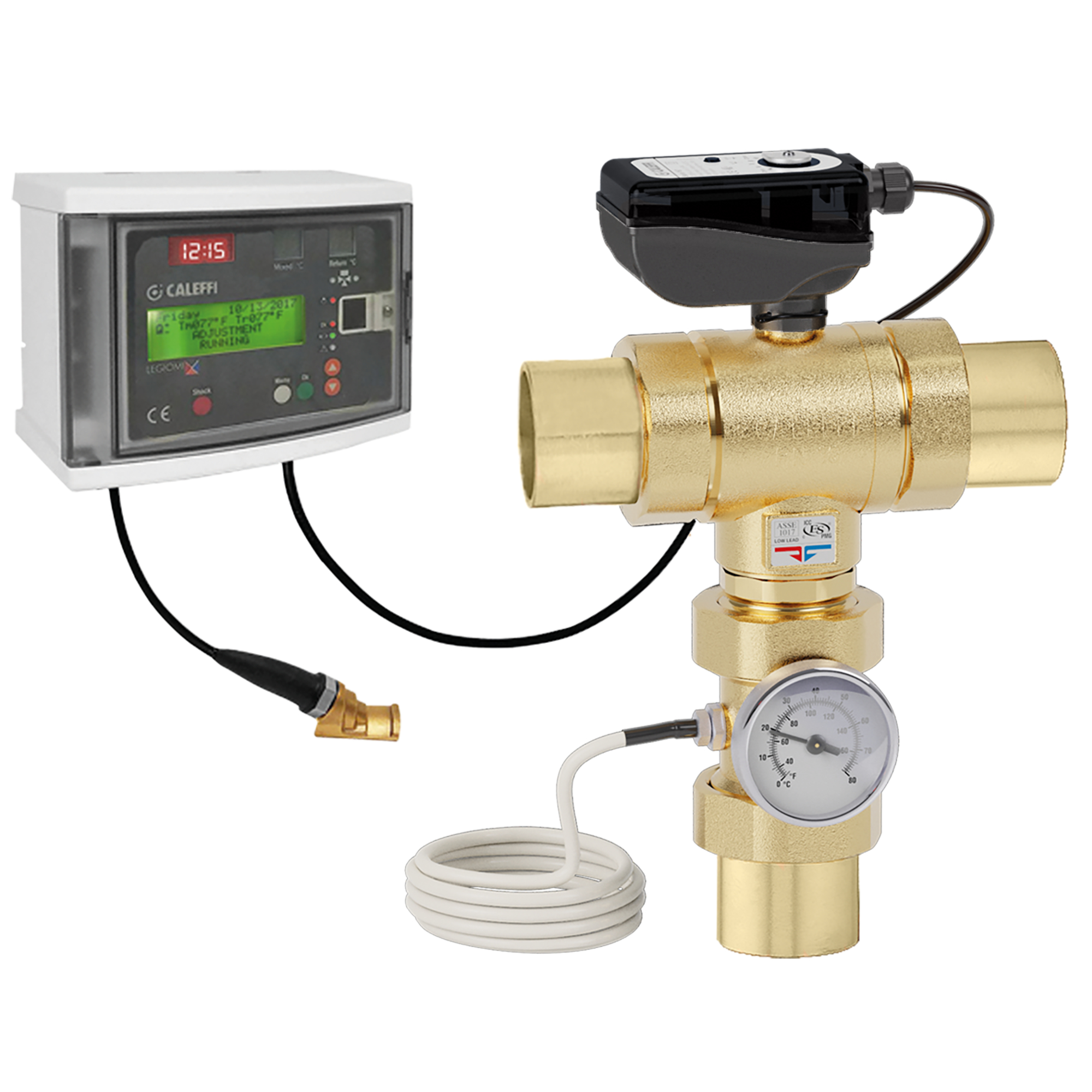

| 600069A | 1" sweat union |
21 | |
|
3D models
Tender text
Electronic mixing valve (sweat)
115/24 VAC transformer included. connection: 1", sweat union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 21.
|
|||
| 600069A 001 | 1" sweat union |
9.7 | |
|
3D models
Tender text
Electronic mixing valve (sweat)
115/24 VAC transformer included. connection: 1", sweat union. Cv: 9.7.
|
|||
| 600079A | 1 1/4" sweat union |
24 | |
|
3D models
Tender text
Electronic mixing valve (sweat)
115/24 VAC transformer included. connection: 1 1/4", sweat union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 24.
|
|||
| 600089A | 1 1/2" sweat union |
34 | |
|
3D models
Tender text
Electronic mixing valve (sweat)
115/24 VAC transformer included. connection: 1 1/2", sweat union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 34.
|
|||
| 600099A | 2" sweat union |
48 | |
|
3D models
Tender text
Electronic mixing valve (sweat)
115/24 VAC transformer included. connection: 2", sweat union. Maximum operating pressure: 150 psi. Maximum static operating pressure: 230 psi. Adjustment temperature range: 70–185 °F. Maximum inlet temperature: 212 °F. Disinfection temperature range: 100–185 °F. Electric supply: 24 V AC. Power consumption at full capacity: 6 VA. Protection class: IP 54. Cv: 48.
|
|||
