Can I add a zone to an existing ZSR or ZVR relay board?
December 10, 2019

Can I add a zone to an existing ZSR or ZVR relay board?

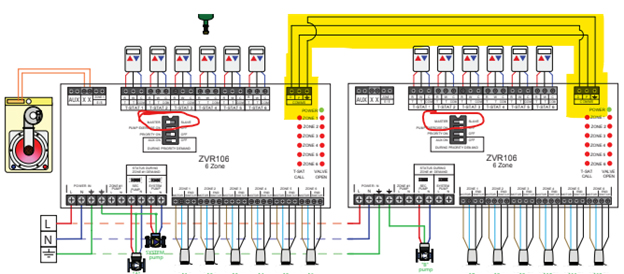

The ZVR or ZSR Series relay boards are available for 3, 4 or 6 zone options.  If your system has more zones, you can add any number of additional zone panels.  They can all tie back to a master zone panel to simplify the installation by selecting one main panel as a “master” panel.  Any number of additional panels may be set up as “slave” panels and are wired together via the “COMMS” terminals.



Refer to page 36-37 of the Wiring Guide for further information:

↓  Wiring Guide
