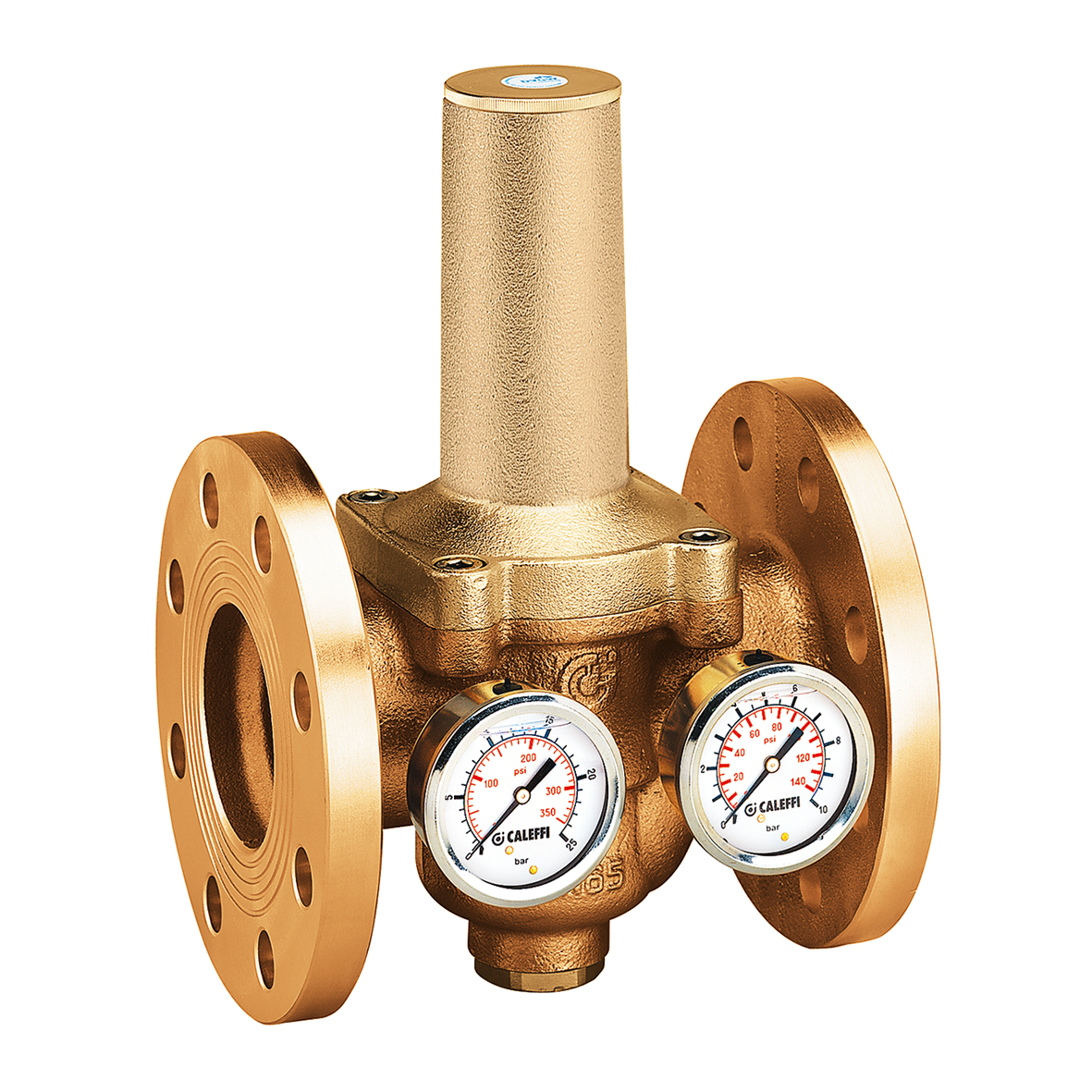

Pressure reducing valve with replaceable cartridge and flanged connections, PN 16.
Product Description
Pressure reducing valve with replaceable cartridge and flanged connections, PN 16.
To be coupled with flat counterflanges EN 1092-1.
With stainless steel double pressure gauge in glycerine bath:
- 0–25 bar upstream;
- 0–10 bar downstream.
Technical data
Maximum upstream pressure:
16 bar
Medium temperature range:
2–80 °C
Adjustment pressure range:
0,5–6 bar
Material:
bronze
Certifications
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 536660 | DN 65 (EN 1092-1) PN 16 |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Pressure reducing valve with replaceable cartridge and flanged connections, PN 16.
To be coupled with flat counterflanges EN 1092-1. With stainless steel double pressure gauge in glycerine bath:
- 0–25 bar upstream;
- 0–10 bar downstream. Connection: DN 65 (EN 1092-1) PN 16. Maximum upstream pressure: 16 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 0,5–6 bar. Material: bronze.
