CALEFFI XF, Xtra Filtration magnetic dirt separator (NPT)

Go to
Show In 3D
Download high resolution

Product Description

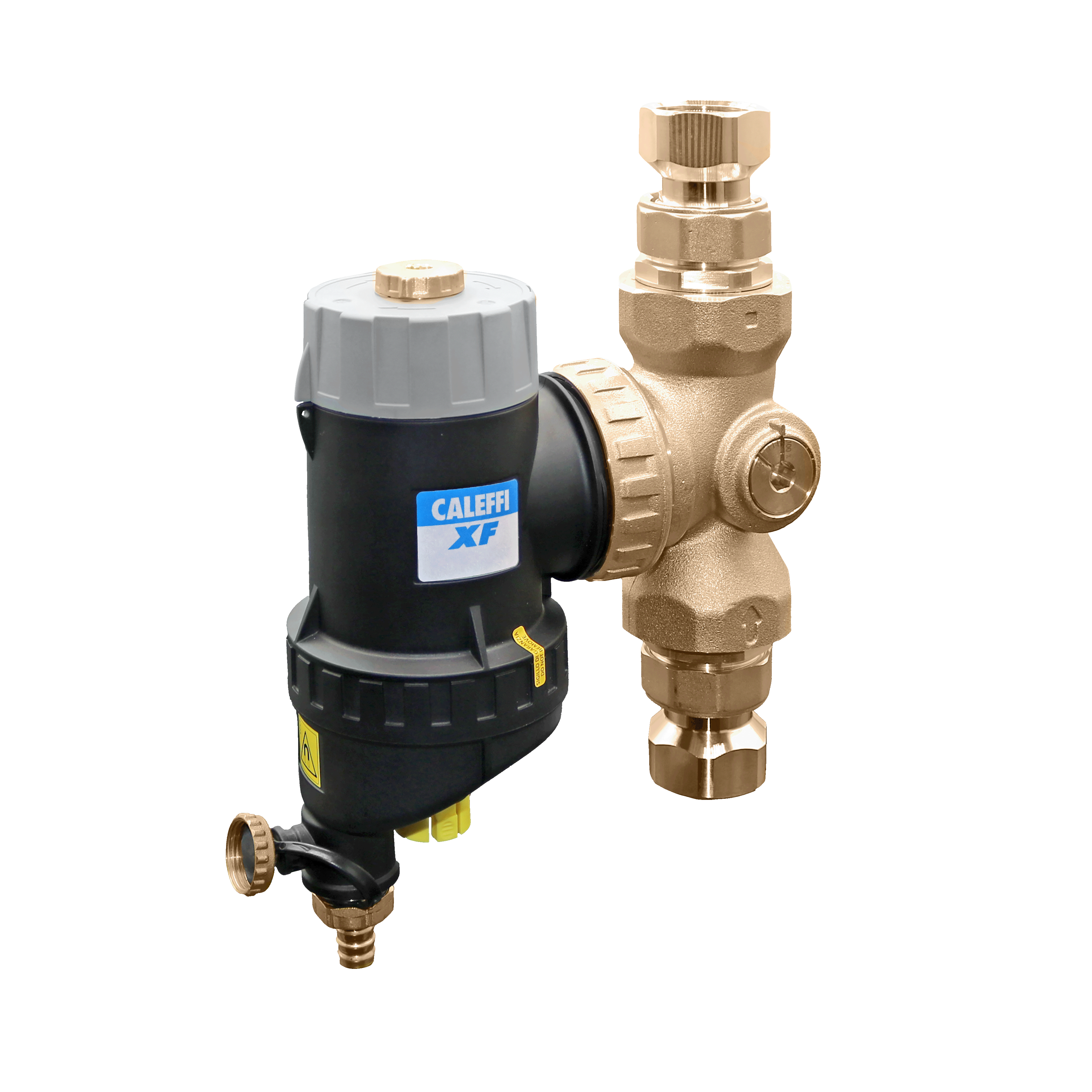

Xtra Filtration magnetic dirt separator (NPT)

Complete with:

First-pass debris filter with an internal cleaning brush mechanism.
160 μm mesh filter to remove fine particle impurities.
Rotating collar which permits vertical or horizontal placement.
50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop.

Technical data

Maximum working pressure: 45 psi
Medium temperature range: 32 – 195 °F
Maximum percentage of glycol: 30 %
Medium: water, glycol solutions

Note

High-efficiency ferrous and non-ferrous impurity separation.

Perfect for heat pump and condensing boiler applications. The unique internal brush mechanism cleans the filter for simple and efficient "clean hands" purging.

Certifications

Buy American Act

Drawings and specifications

Part number Connection
3D models
Tender text
Xtra Filtration magnetic dirt separator (NPT) Complete with: First-pass debris filter with an internal cleaning brush mechanism. 160 μm mesh filter to remove fine particle impurities. Rotating collar which permits vertical or horizontal placement. 50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop. Connection: 1" MNPT, union. Maximum working pressure: 45 psi. Medium temperature range: 32 – 195 °F. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions.
3D models
Tender text
Xtra Filtration magnetic dirt separator (NPT) Complete with: First-pass debris filter with an internal cleaning brush mechanism. 160 μm mesh filter to remove fine particle impurities. Rotating collar which permits vertical or horizontal placement. 50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop. Connection: 1 1/4" FNPT, union.
3D models
Tender text
Xtra Filtration magnetic dirt separator (NPT) Complete with: First-pass debris filter with an internal cleaning brush mechanism. 160 μm mesh filter to remove fine particle impurities. Rotating collar which permits vertical or horizontal placement. 50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop. Connection: 1 1/2" FNPT, union.
