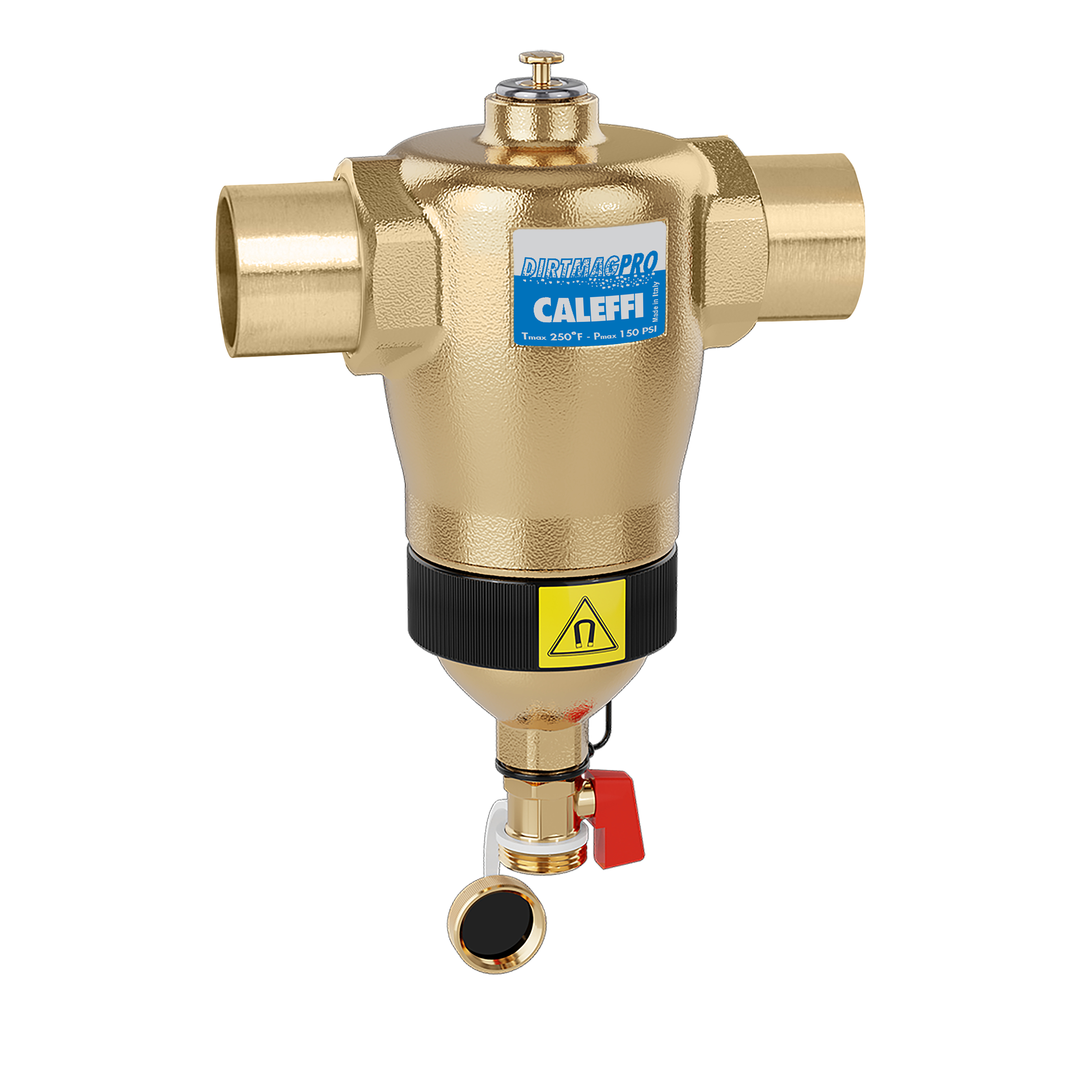

DIRTMAG® Pro, Dual magnet dirt separator (sweat)
Product Description
Dual magnet dirt separator (sweat)
Internal magnet in drywell.
External clip-on magnet.
Ferrous impurities separation efficiency: 100%.
Technical data
Maximum working pressure:
150 psi
Medium temperature range:
32–250 °F
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 546328AM | 1" sweat |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Dual magnet dirt separator (sweat)
Internal magnet in drywell. External clip-on magnet. Ferrous impurities separation efficiency: 100%. Connection: 1" sweat. Maximum working pressure: 150 psi. Medium temperature range: 32–250 °F. Material: brass.
SCIP code
bfbd5a27-42e6-4395-8bc6-20dedc36754f
|
|||
| 546335AM | 1 1/4" sweat |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Dual magnet dirt separator (sweat)
Internal magnet in drywell. External clip-on magnet. Ferrous impurities separation efficiency: 100%. Connection: 1 1/4" sweat. Maximum working pressure: 150 psi. Medium temperature range: 32–250 °F. Material: brass.
SCIP code
34ce144d-ba83-4065-8234-e316fbfbca31
|
|||
| 546341AM | 1 1/2" sweat |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Dual magnet dirt separator (sweat)
Internal magnet in drywell. External clip-on magnet. Ferrous impurities separation efficiency: 100%. Connection: 1 1/2" sweat. Maximum working pressure: 150 psi. Medium temperature range: 32–250 °F. Material: brass.
SCIP code
7020b61a-b640-4d2a-96e4-e489d3c9588e
|
|||
| 546354AM | 2" sweat |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Dual magnet dirt separator (sweat)
Internal magnet in drywell. External clip-on magnet. Ferrous impurities separation efficiency: 100%. Connection: 2" sweat. Maximum working pressure: 150 psi. Medium temperature range: 32–250 °F. Material: brass.
SCIP code
09a1060c-5730-49d1-880a-ca1286bb591e
|
|||
igs
stp
bim
