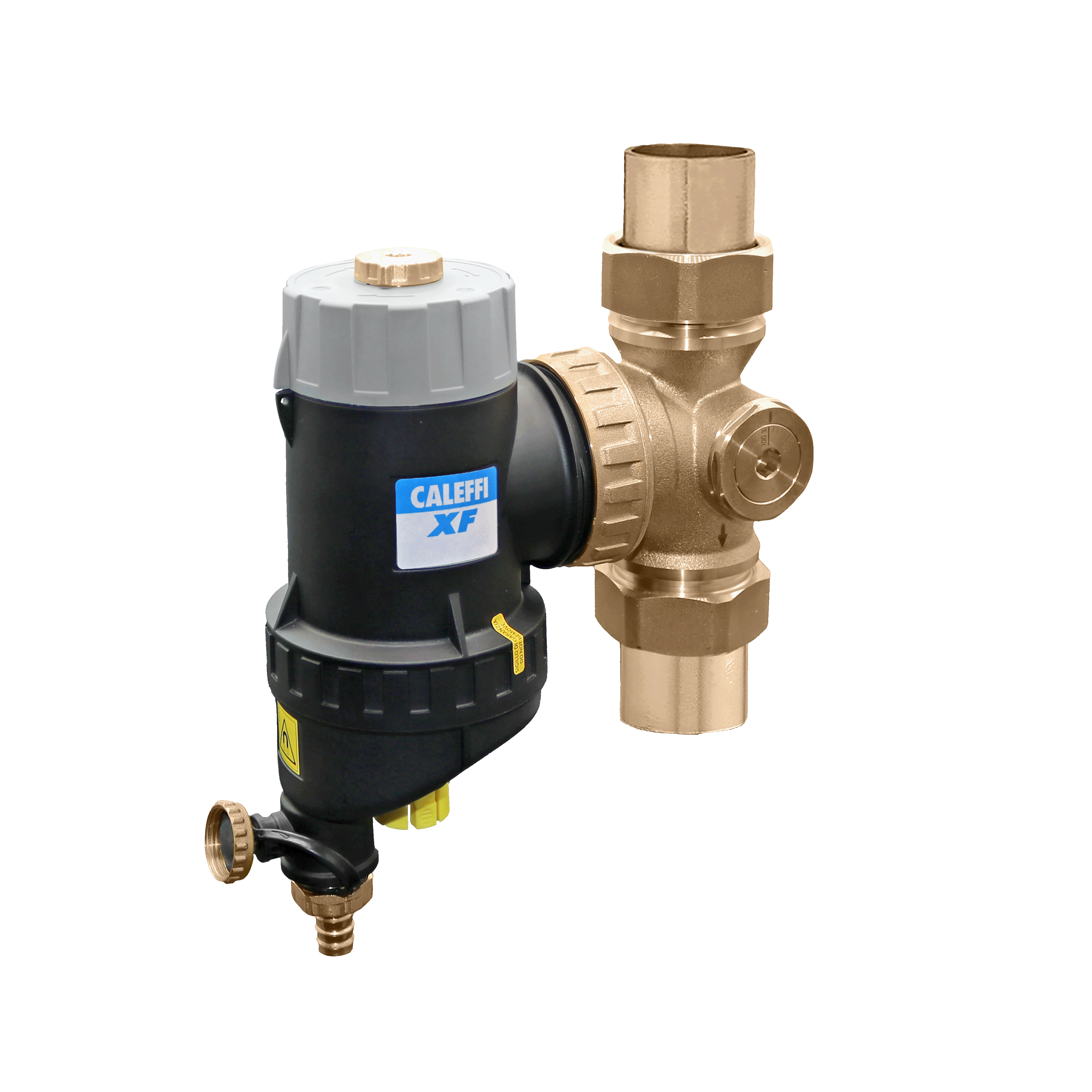

CALEFFI XF, Xtra Filtration magnetic dirt separator (sweat)
Product Description
Xtra Filtration magnetic dirt separator (sweat)
Complete with:
First-pass debris filter with an internal cleaning brush mechanism.
160 μm mesh filter to remove fine particle impurities.
Rotating collar which permits vertical or horizontal placement.
50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop.
Technical data
Maximum operating pressure:
45 psi
Fluid temperature range:
32 – 195 °F
Maximum glycol %:
30 %
Medium:
water, glycol solutions
Note
High-efficiency ferrous and non-ferrous impurity separation.
Perfect for heat pump and condensing boiler applications. The unique internal brush mechanism cleans the filter for simple and efficient "clean hands" purging.
pdf
Drawings and specifications
| Code | Connection | ||
|---|---|---|---|
| 577669A | 1" sweat union |
||
|
3D models
Tender text
Xtra Filtration magnetic dirt separator (sweat)
Complete with:
First-pass debris filter with an internal cleaning brush mechanism.
160 μm mesh filter to remove fine particle impurities.
Rotating collar which permits vertical or horizontal placement.
50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop.
connection: 1", sweat union. Maximum operating pressure: 45 psi. Fluid temperature range: 32 – 195 °F. Maximum glycol %: 30 %. Medium: water, glycol solutions.
|
|||
| 577879A | 1 1/4" sweat union |
||
|
3D models
Tender text
Xtra Filtration magnetic dirt separator (sweat)
Complete with:
First-pass debris filter with an internal cleaning brush mechanism.
160 μm mesh filter to remove fine particle impurities.
Rotating collar which permits vertical or horizontal placement.
50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop.
connection: 1 1/4", sweat union.
|
|||
| 577989A | 1 1/2" sweat union |
||
|
3D models
Tender text
Xtra Filtration magnetic dirt separator (sweat)
Complete with:
First-pass debris filter with an internal cleaning brush mechanism.
160 μm mesh filter to remove fine particle impurities.
Rotating collar which permits vertical or horizontal placement.
50% bypass feature (on 1 ¼" and 1 ½" sizes) to reduce pressure drop.
connection: 1 1/2", sweat union.
|
|||
