Series 128

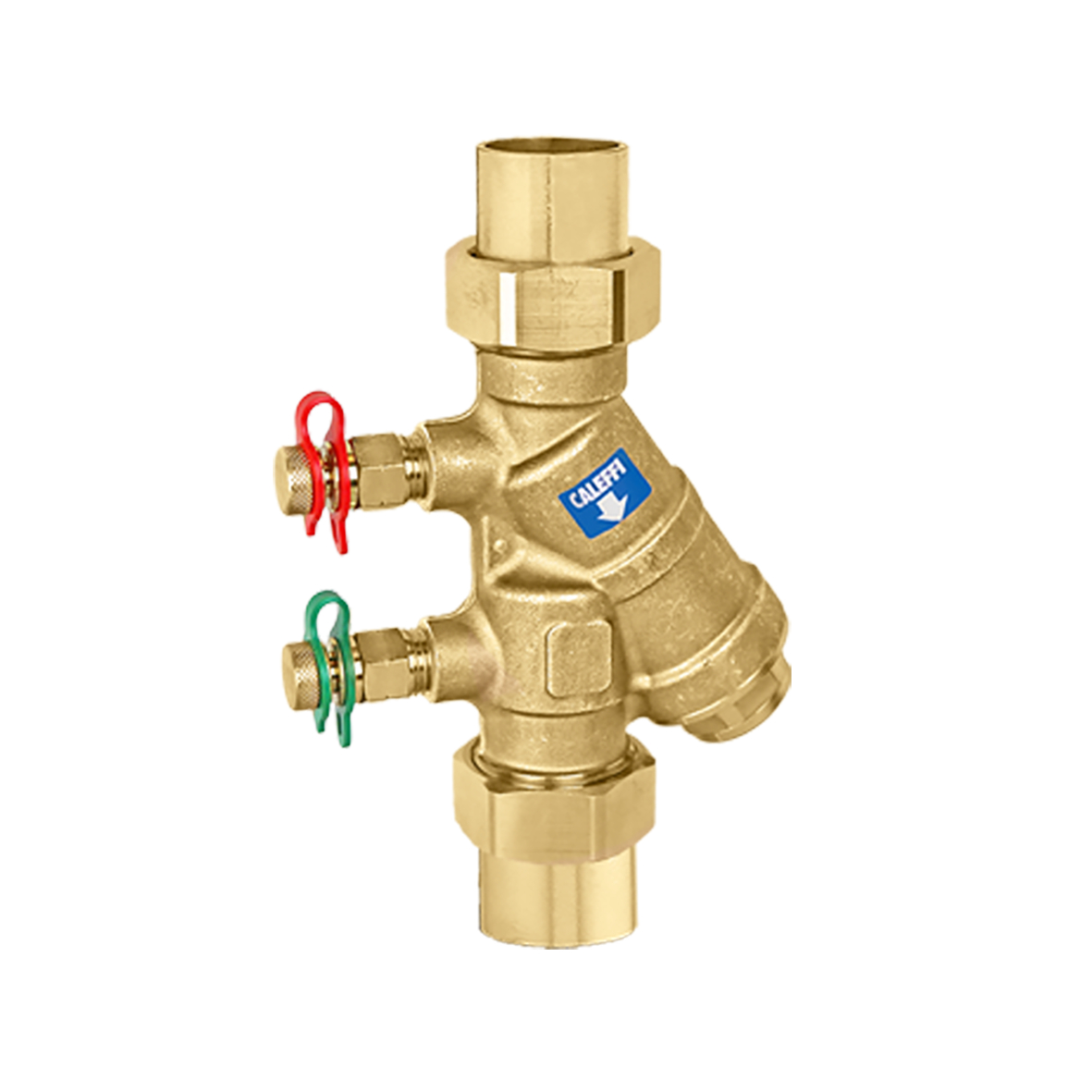

Union Y-strainer with PT ports connections (sweat)

Download high resolution

Product Description

Union Y-strainer with PT ports connections (sweat)
PT ports included.
½" FNPT plugged blowdown port.
The 128 Series Y-strainer uses the same brass body as the 128 Series
FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without
removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown.

Technical data

Maximum operating pressure: 400 psi

Medium temperature range: 32 – 212 °F

Maximum glycol %: 50 %

Certifications

Download

Drawings and specifications

Part number	Connection
128749A 000	1/2" sweat union
3D models bim Tender text Union Y-strainer with PT ports connections (sweat) PT ports included. ½" FNPT plugged blowdown port. The 128 Series Y-strainer uses the same brass body as the 128 Series FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown. connection: 1/2", sweat union. Maximum operating pressure: 400 psi. Fluid temperature range: 32 – 212 °F. Maximum glycol %: 50 %.
128759A 000	3/4" sweat union
3D models bim Tender text Union Y-strainer with PT ports connections (sweat) PT ports included. ½" FNPT plugged blowdown port. The 128 Series Y-strainer uses the same brass body as the 128 Series FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown. connection: 3/4", sweat union. Maximum operating pressure: 400 psi. Fluid temperature range: 32 – 212 °F. Maximum glycol %: 50 %.
128769A 000	1" sweat union
3D models bim Tender text Union Y-strainer with PT ports connections (sweat) PT ports included. ½" FNPT plugged blowdown port. The 128 Series Y-strainer uses the same brass body as the 128 Series FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown. connection: 1", sweat union. Maximum operating pressure: 400 psi. Fluid temperature range: 32 – 212 °F. Maximum glycol %: 50 %.
