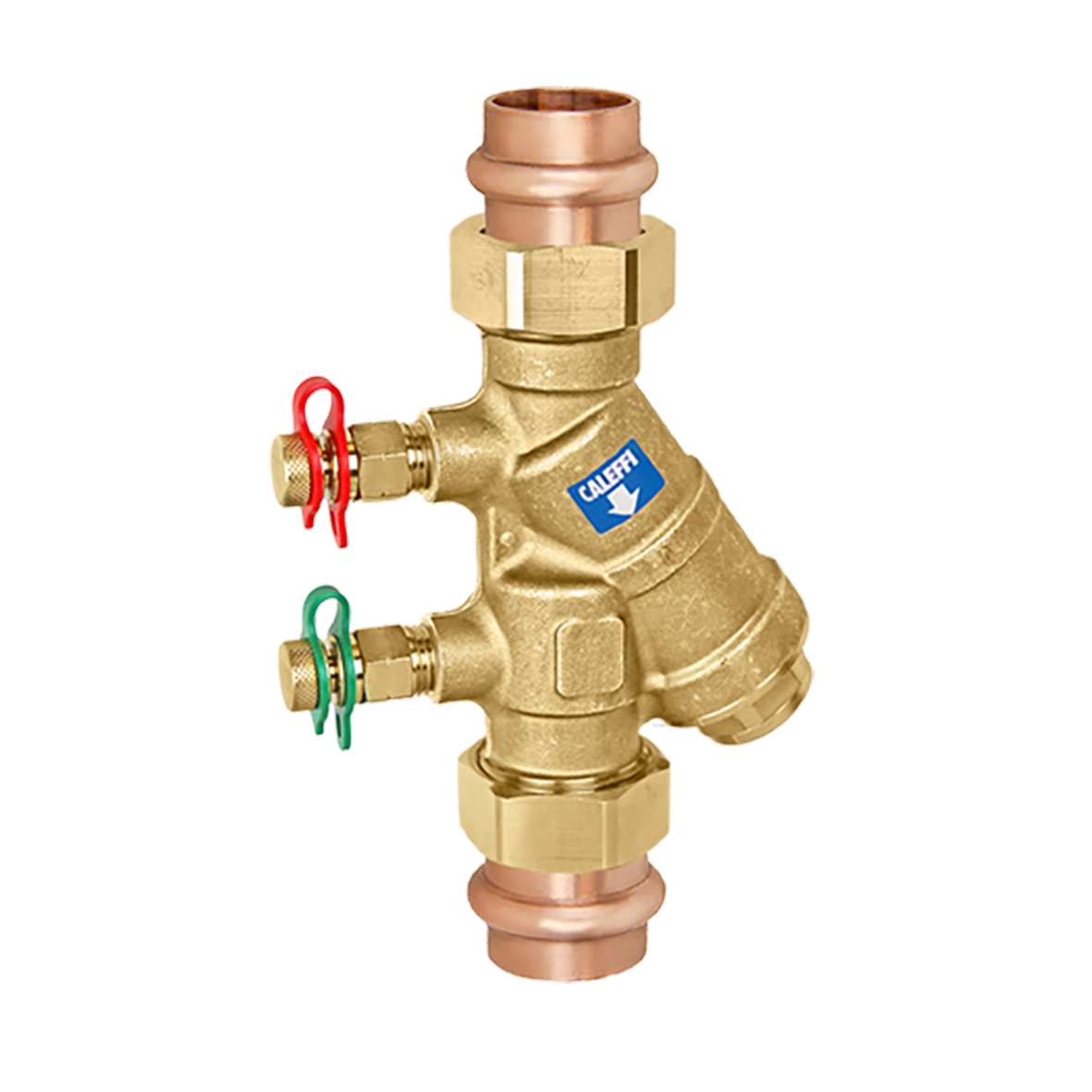

Union Y-strainer with PT ports connections (press)
Product Description
Union Y-strainer with PT ports connections (press)
PT ports included.
½" FNPT plugged blowdown port.
The 128 Series Y-strainer uses the same brass body as the 128 Series
FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without
removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown.
Technical data
Maximum operating pressure:
400 psi
Medium temperature range:
32 – 212 °F
Maximum glycol %:
50 %
Certifications







Download
Drawings and specifications
Part number | Connection | ||
---|---|---|---|
128746A 000 | 1/2" press union |
||
3D models
Tender text
Union Y-strainer with PT ports connections (press)
PT ports included.
½" FNPT plugged blowdown port.
The 128 Series Y-strainer uses the same brass body as the 128 Series
FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without
removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown. connection: 1/2", press union. Maximum operating pressure: 400 psi. Medium temperature range: 32 – 212 °F. Maximum glycol %: 50 %.
|
|||
128756A 000 | 3/4" press union |
||
3D models
Tender text
Union Y-strainer with PT ports connections (press)
PT ports included.
½" FNPT plugged blowdown port.
The 128 Series Y-strainer uses the same brass body as the 128 Series
FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without
removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown. connection: 3/4", press union. Maximum operating pressure: 400 psi. Medium temperature range: 32 – 212 °F. Maximum glycol %: 50 %.
|
|||
128766A 000 | 1" press union |
||
3D models
Tender text
Union Y-strainer with PT ports connections (press)
PT ports included.
½" FNPT plugged blowdown port.
The 128 Series Y-strainer uses the same brass body as the 128 Series
FlowCal balancing valve. The 20 mesh stainless steel screen can be easily removed for cleaning without
removing the body from the piping or a ½" purge valve can replace the plug for easy dirt blowdown. connection: 1", press union. Maximum operating pressure: 400 psi. Medium temperature range: 32 – 212 °F. Maximum glycol %: 50 %.
|
