Series 100

Fast-plug pressure/temperature test ports

Go to
Download high resolution

Product Description

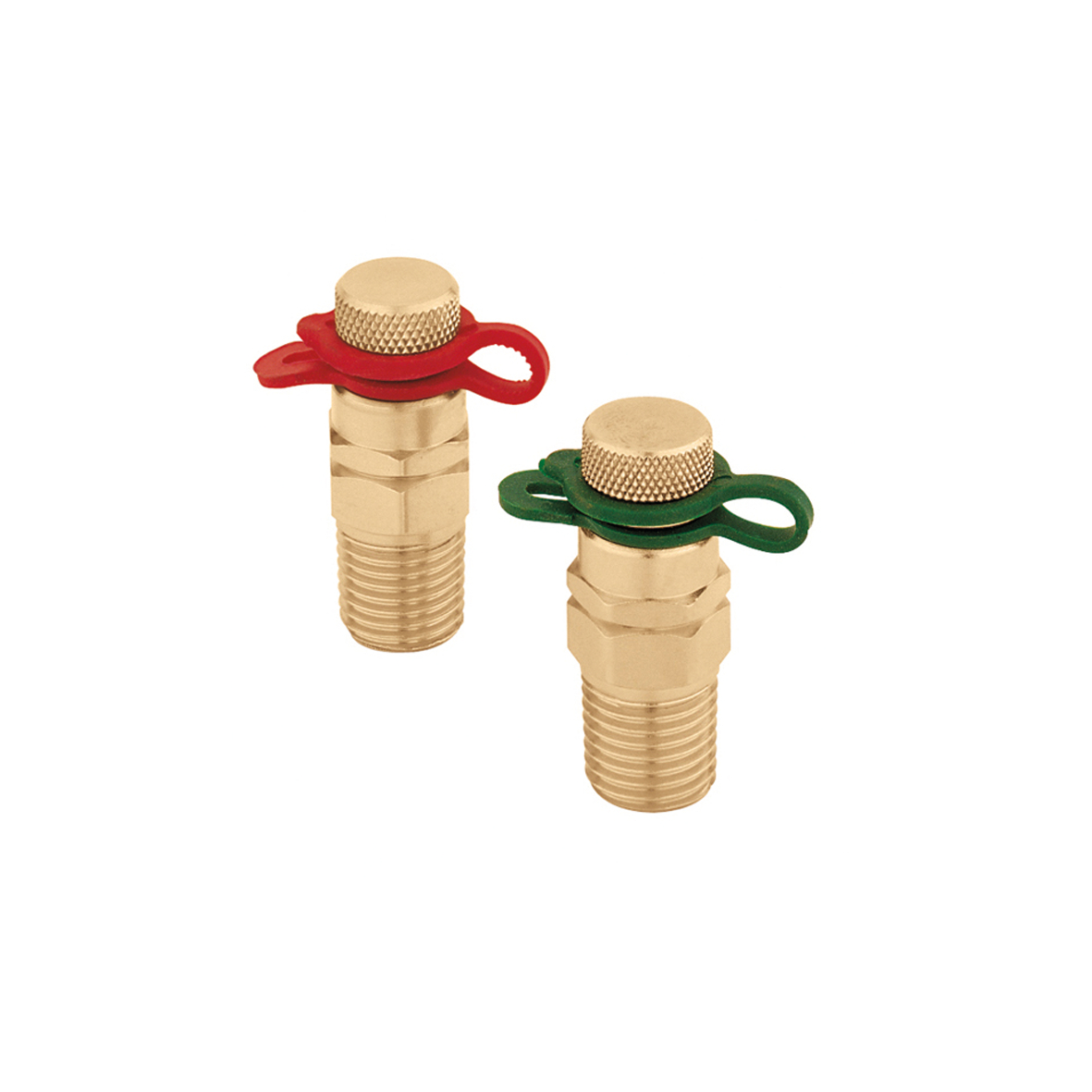

Fast-plug pressure/temperature test ports
Pair (2 ports included).
The double-sealing core insures long and trouble free service.
Nordel Core.
Cap thread: 3/8"-24 UNF.

Technical data

Maximum operating pressure: 435 psi
Fluid temperature range: 0–275 °F
Material: DZR low lead brass

Certifications

ES LOW LEAD
Buy American Act
California HSC 116875
Maryland HB372
United States S.3874
Vermont Act 193
NSF/ANSI/CAN 372

Download

icc_es_report_pmg-1360.pdf pdf
Brochures
Download

Drawings and specifications

Code Note
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Fast-plug pressure/temperature test ports Pair (2 ports included). The double-sealing core insures long and trouble free service. Nordel Core. Cap thread: 3/8"-24 UNF. Maximum operating pressure: 435 psi. Fluid temperature range: 0–275 °F. Material: DZR low lead brass.
SCIP code
c463c321-613e-4bd6-88f5-4afc1d4fe919
