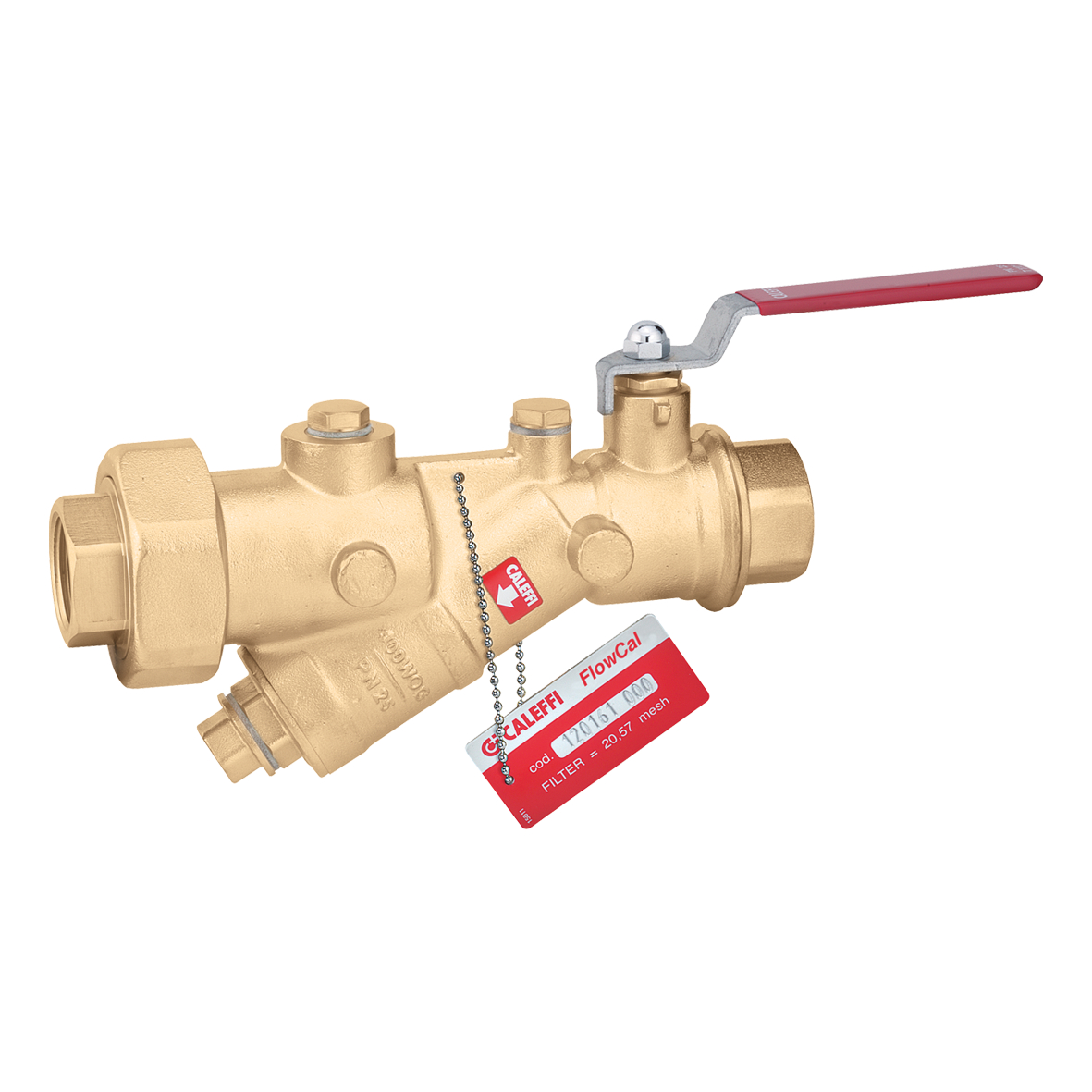

Y-strainer with integral ball valve
Product Description
Y-strainer with integral ball valve
Stainless steel strainer cartridge.
Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4".
Strainer (20 mesh).
Pressure and temperature ports: 1/4" NPT.
Technical data
Maximum working pressure:
400 psi
Medium temperature range:
32–212 °F
Maximum percentage of glycol:
50 %
Medium:
technical water, glycol solutions
Material:
brass
Download
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 120141A 000 | 1/2" FNPT |
- | 8.0 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1/2" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.0 gpm. Material: brass.
|
|||
| 120149A 000 | 1/2" sweat |
- | 8.0 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1/2", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.0 gpm. Material: brass.
|
|||
| 120151A 000 | 3/4" FNPT |
- | 8.4 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 3/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.4 gpm. Material: brass.
|
|||
| 120159A 000 | 3/4" sweat |
- | 8.4 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 3/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.4 gpm. Material: brass.
|
|||
| 120161A 000 | 1" FNPT |
- | 19 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 19 gpm. Material: brass.
|
|||
| 120169A 000 | 1" sweat |
- | 19 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 19 gpm. Material: brass.
|
|||
| 120171A 000 | 1 1/4" FNPT |
- | 20 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1 1/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 20 gpm. Material: brass.
|
|||
| 120179A 000 | 1 1/4" sweat |
- | 20 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1 1/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 20 gpm. Material: brass.
|
|||
| 120341A 000 | 1/2" FNPT |
With PT | 8.0 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1/2" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.0 gpm. Material: brass.
|
|||
| 120349A 000 | 1/2" sweat |
With PT | 8.0 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1/2", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.0 gpm. Material: brass.
|
|||
| 120351A 000 | 3/4" FNPT |
With PT | 8.4 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 3/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.4 gpm. Material: brass.
|
|||
| 120359A 000 | 3/4" sweat |
With PT | 8.4 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 3/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 8.4 gpm. Material: brass.
|
|||
| 120361A 000 | 1" FNPT |
With PT | 19 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 19 gpm. Material: brass.
|
|||
| 120369A 000 | 1" sweat |
With PT | 19 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 19 gpm. Material: brass.
|
|||
| 120371A 000 | 1 1/4" FNPT |
With PT | 20 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1 1/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 20 gpm. Material: brass.
|
|||
| 120379A 000 | 1 1/4" sweat |
With PT | 20 gpm |
|
3D models
Tender text
Y-strainer with integral ball valve
Stainless steel strainer cartridge. Drain port connection: 1/4" for1/2" & 3/4" or1/2" for 1" & 1 1/4". Strainer (20 mesh). Pressure and temperature ports: 1/4" NPT. connection: 1 1/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Cv: 20 gpm. Material: brass.
|
|||
