Series 172

Low temperature manifold mixing station (with high efficiency pump)

Go to
Download high resolution

Product Description

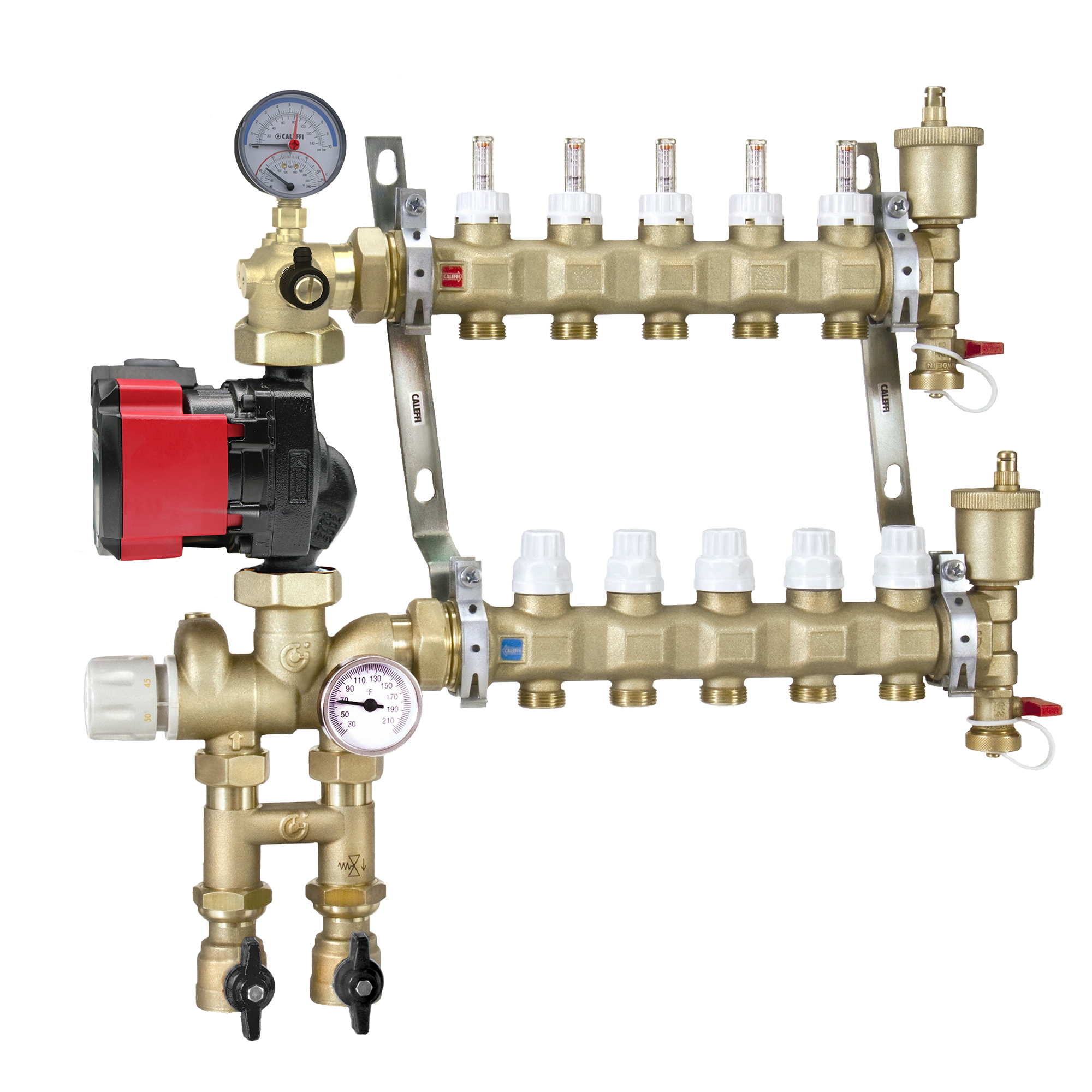

Low temperature manifold mixing station (with high efficiency pump)
Supply manifold complete with:

  • Flow meters
  • Adjustable balancing valves

Return manifold complete with:

  • Shut-off valves that can be replaced by thermo-electric actuators

Includes Grundfos UPMS 25-58 pump

Models with "IN" suffix are built inverted with tubing connections going upward

Technical data

Maximum operating pressure: 150 psi
Adjustment temperature range: 80–130 °F, 80–130 °C
Maximum inlet temperature: 195 °F
Outlet center distance: 2 "

Drawings and specifications

Part number Connection Outlet Connection
3D models
Tender text
