Hydro Separator (ANSI flange ASME & CRN, 2-6")
Product Description

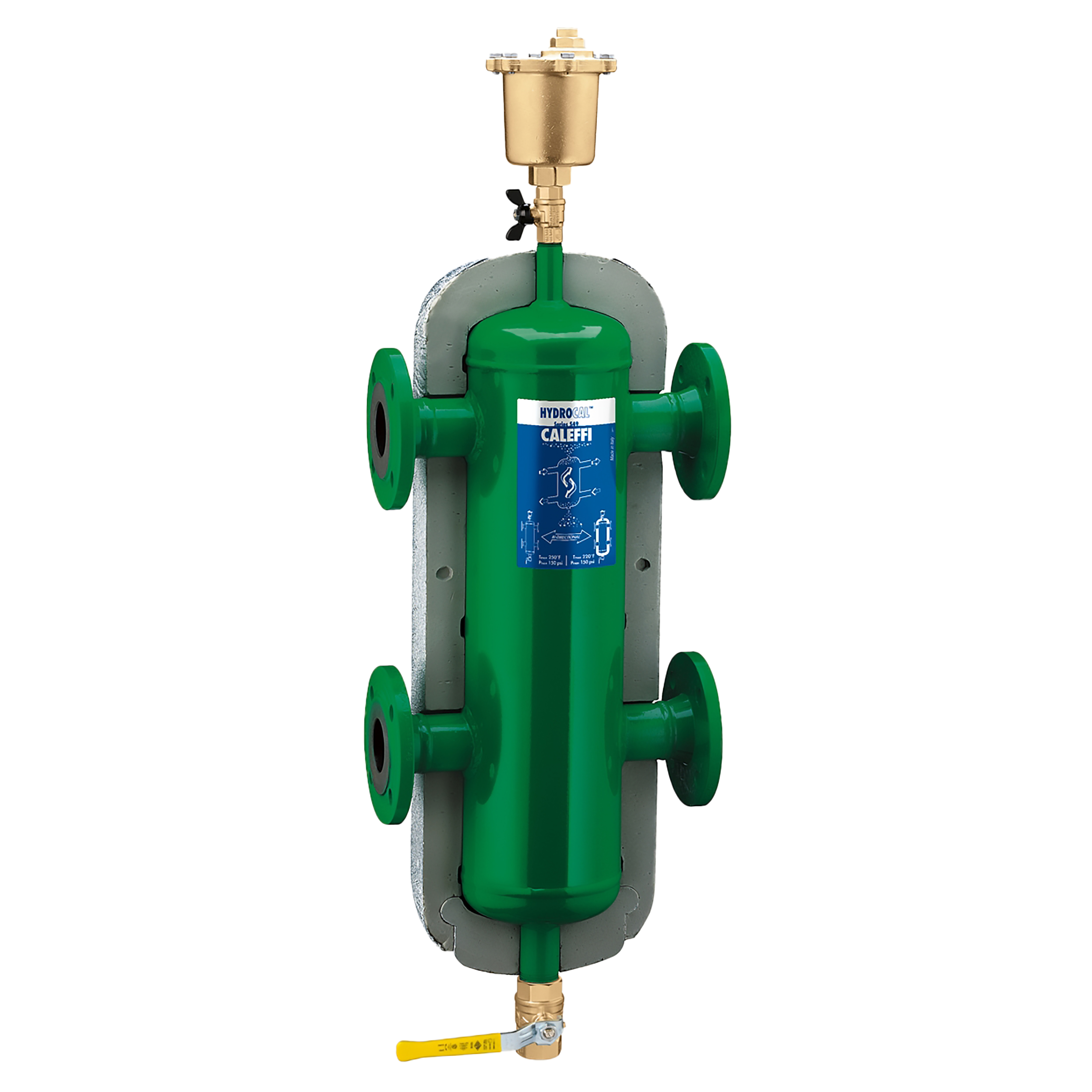

Hydro Separator (ANSI flange ASME & CRN, 2-6")
Complete with:
- automatic air vent (code 501502A)
- shut-off valve (code NA39589)
- drain valve (code NA39588)
Baffle plates for all sizes: 304 SS.
Vessel temp. w/o insulation: 32—270°F.
Pre-formed insulation on 2"— 4" sizes.
Technical data
Maximum working pressure:
150 psi
Medium temperature range:
32–220 °F
Material:
steel
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| NA548052A | 2" ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME & CRN, 2-6")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Baffle plates for all sizes: 304 SS. Vessel temp. w/o insulation: 32—270°F. Pre-formed insulation on 2"— 4" sizes. connection: 2" ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–220 °F. Material: steel.
|
|||
| NA548062A | 2 1/2" ANSI 150 flange |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME & CRN, 2-6")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Baffle plates for all sizes: 304 SS. Vessel temp. w/o insulation: 32—270°F. Pre-formed insulation on 2"— 4" sizes. connection: 2 1/2" ANSI 150 flange. Maximum working pressure: 150 psi. Medium temperature range: 32–220 °F. Material: steel.
|
|||
| NA548082A | 3" ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME & CRN, 2-6")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Baffle plates for all sizes: 304 SS. Vessel temp. w/o insulation: 32—270°F. Pre-formed insulation on 2"— 4" sizes. connection: 3" ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–220 °F. Material: steel.
|
|||
| NA548102A | 4" ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME & CRN, 2-6")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Baffle plates for all sizes: 304 SS. Vessel temp. w/o insulation: 32—270°F. Pre-formed insulation on 2"— 4" sizes. connection: 4" ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–220 °F. Material: steel.
|
|||
| NA548120A | 5'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME & CRN, 2-6")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Baffle plates for all sizes: 304 SS. Vessel temp. w/o insulation: 32—270°F. Pre-formed insulation on 2"— 4" sizes. connection: 5'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–220 °F. Material: steel.
|
|||
| NA548150A | 6'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
Hydro Separator (ANSI flange ASME & CRN, 2-6")
Complete with:
automatic air vent (code 501502A)
shut-off valve (code NA39589)
drain valve (code NA39588)
Baffle plates for all sizes: 304 SS. Vessel temp. w/o insulation: 32—270°F. Pre-formed insulation on 2"— 4" sizes. connection: 6'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–220 °F. Material: steel.
|
|||
