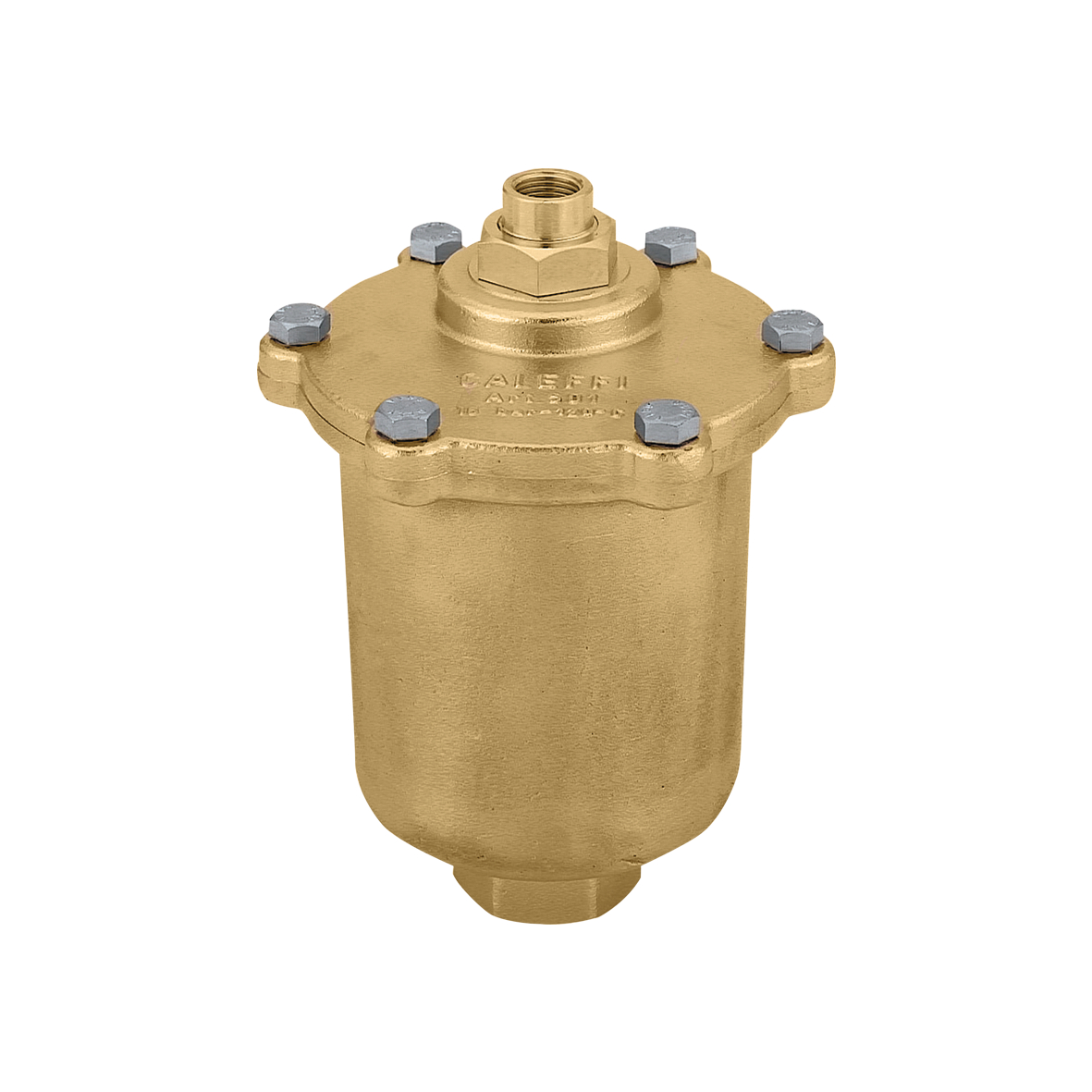

MAXCAL™, Extra high capacity automatic air vent
Product Description
Extra high capacity automatic air vent
Complete with:
- Stainless steel guide pin & linkage
- Discharge thread: ⅜” straight thread female (top)
Connection Options:
- Size: ¾”
- Connection Type: NPT Female
Compatible with:
- 548 and NA548 Hydro Separators (flange)
- 5495 SEP4™ (flange)
- NA549 HydroCal™ (flange)
Technical data
Material:
brass
Maximum discharge rate:
9 SCFM
Medium temperature range:
-4 – 250 °F
Maximum air discharge pressure:
90 psi
Maximum working pressure:
230 psi
pdf
Drawings and specifications
| Part number | Connection | Actions | |
|---|---|---|---|
| 501502A | 3/4" NPT female |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 501502A, MAXCAL™.
Extra high capacity automatic air vent
Complete with:
Stainless steel guide pin & linkage
Discharge thread: ⅜” straight thread female (top)
Connection Options:
Size: ¾”
Connection Type: NPT Female
Compatible with:
548 and NA548 Hydro Separators (flange)
5495 SEP4™ (flange)
NA549 HydroCal™ (flange)
Connection: 3/4" NPT female. Maximum working pressure: 230 psi. Maximum air discharge pressure: 90 psi. Medium temperature range: -4 – 250 °F. Maximum discharge rate: 9 SCFM. Material: brass.
