Series 5495

SEP4™, 4-in-1 Hydraulic Separators (ANSI flange, 2-4")

Go to
Download high resolution

Product Description

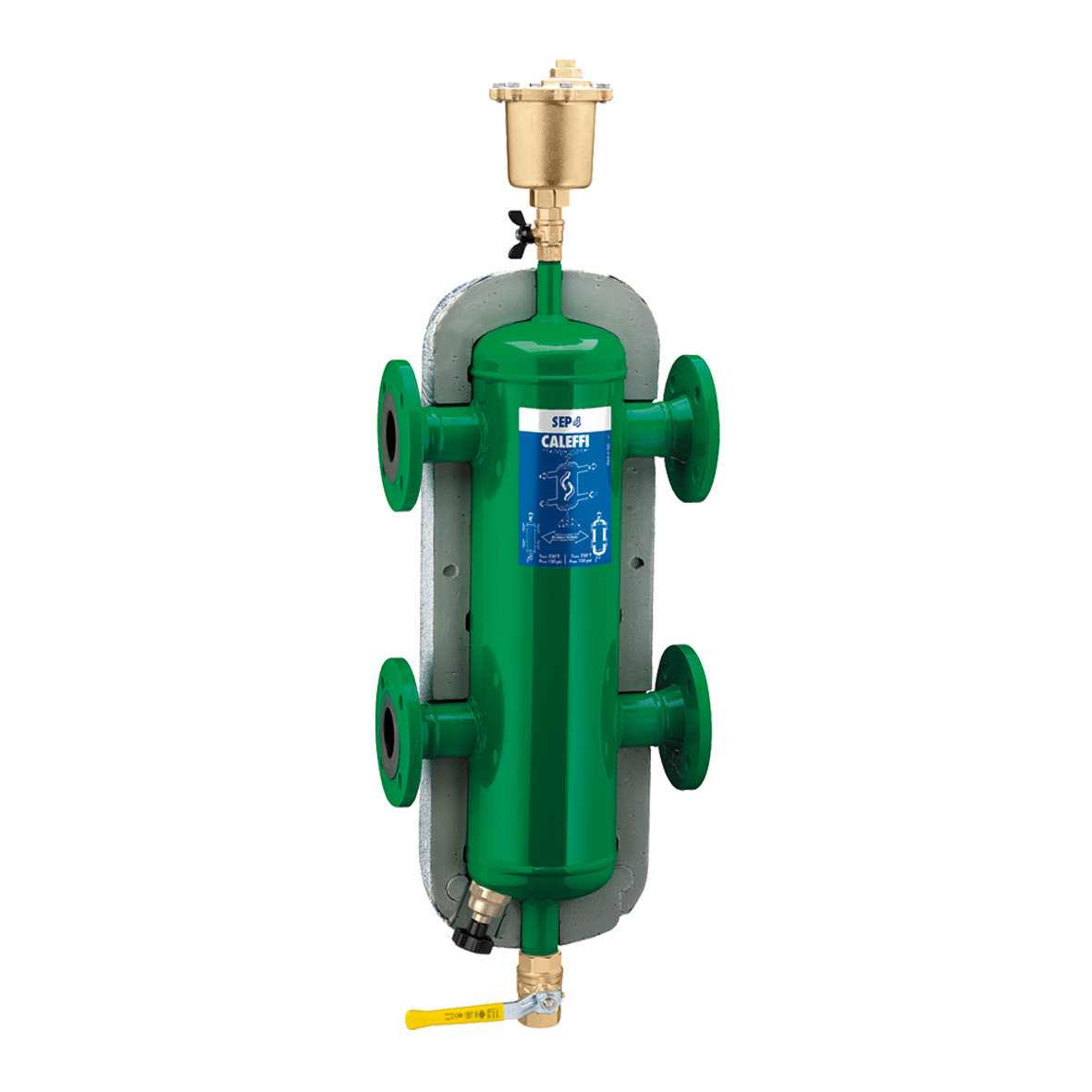

4-in-1 Hydraulic Separators (ANSI flange, 2-4")
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:

  • Air vent isolation valve
  • Drain valve
  • Insulation jacket (2-4" sizes)

Technical data

Maximum operating pressure: 150 psi
Medium temperature range: 32 – 220 °F
Material: steel
Find us in MasterSpec

Download

01249_NA.pdf pdf
Technical brochure
Download
38712_NA.pdf pdf
Instruction sheet
Download
NA11040.pdf pdf
Instruction sheet
Revit Content Instruction Guide
Download
Idronics_15_NA_Separation in hydronic systems.pdf pdf
Idronics
Idronics 15 - Separation in Hydronic Systems
Download
Idronics_13_NA_Hydronic cooling.pdf pdf
Idronics
Idronics 13 - Hydronic cooling
Download
02930-4_NA.pdf pdf
Submittal data
Download

Drawings and specifications

Part number Connection
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 549552A, SEP4™. 4-in-1 Hydraulic Separators (ANSI flange, 2-4") Combination: air, hydraulic, dirt, and magnetic separation Complete with:  Air vent isolation valve Drain valve Insulation jacket (2-4" sizes) connection: 2" ANSI 150 flange. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 220 °F. Material: steel.
3D models
igs
Share this file Download this file
Download
stp
Share this file Download this file
Download
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 549562A, SEP4™. 4-in-1 Hydraulic Separators (ANSI flange, 2-4") Combination: air, hydraulic, dirt, and magnetic separation Complete with:  Air vent isolation valve Drain valve Insulation jacket (2-4" sizes) connection: 2 1/2" ANSI 150 flange. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 220 °F. Material: steel.
3D models
igs
Share this file Download this file
Download
stp
Share this file Download this file
Download
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 549582A, SEP4™. 4-in-1 Hydraulic Separators (ANSI flange, 2-4") Combination: air, hydraulic, dirt, and magnetic separation Complete with:  Air vent isolation valve Drain valve Insulation jacket (2-4" sizes) connection: 3" ANSI 150 flange. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 220 °F. Material: steel.
3D models
igs
Share this file Download this file
Download
stp
Share this file Download this file
Download
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 549510A, SEP4™. 4-in-1 Hydraulic Separators (ANSI flange, 2-4") Combination: air, hydraulic, dirt, and magnetic separation Complete with:  Air vent isolation valve Drain valve Insulation jacket (2-4" sizes) connection: 4" ANSI 150 flange. Maximum operating pressure: 150 psi. Medium temperature range: 32 – 220 °F. Material: steel.
