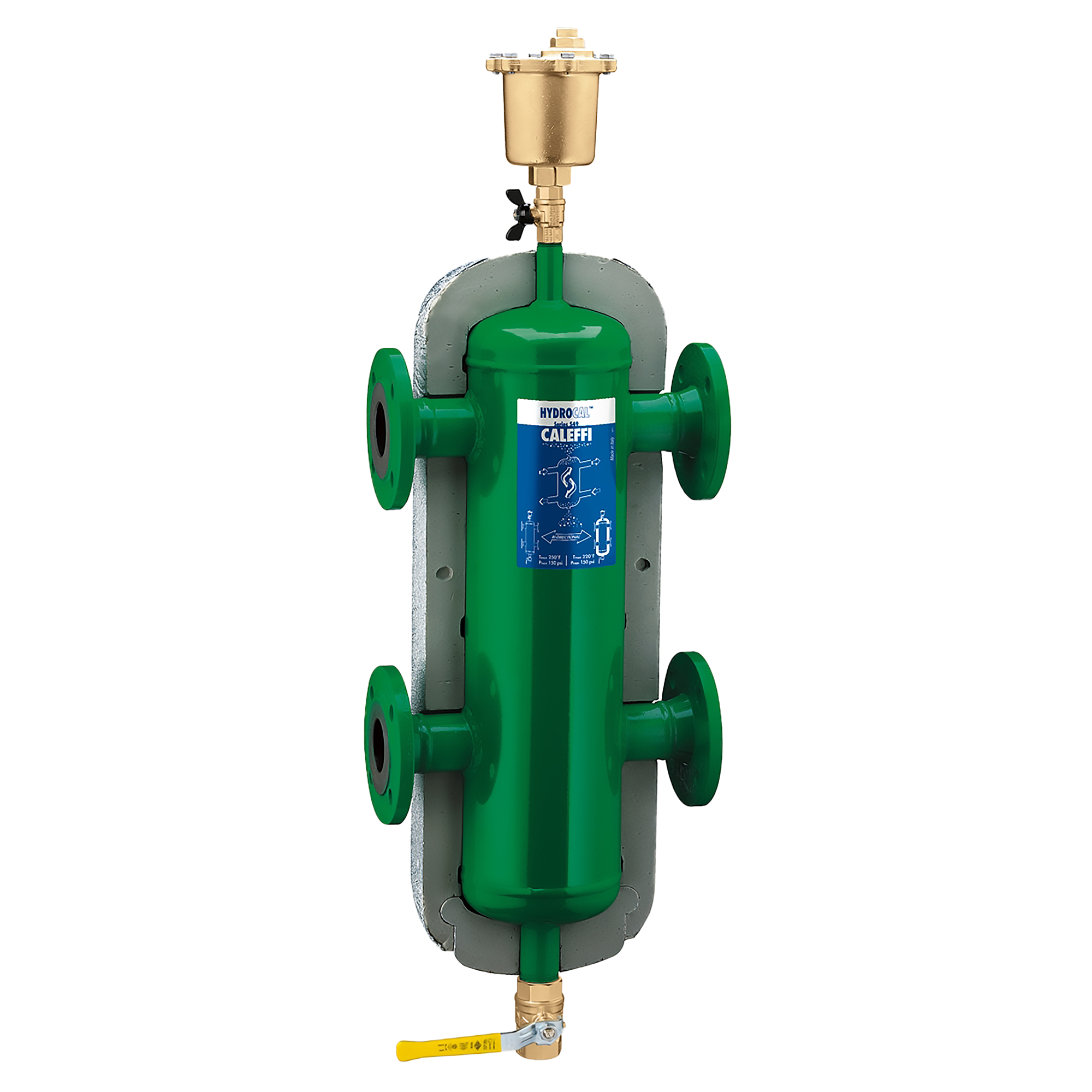

Hydro Separator (ANSI flange 2-4")
Product Description
Hydro Separator (ANSI flange 2-4")
Complete with:
- Air vent isolation valve
- Drain valve
- Insulation jacket (2-4" sizes)
Technical data
Maximum operating pressure:
150 psi
Fluid temperature range:
32–220 °F
Material:
steel
pdf
Drawings and specifications
| Code | Connection | ||
|---|---|---|---|
| 548052A | 2" ANSI 150 flange |
||
|
3D models
Tender text
Hydro Separator (ANSI flange 2-4")
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 2" ANSI 150 flange. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F. Material: steel.
|
|||
| 548062A | 2 1/2" ANSI 150 flange |
||
|
3D models
Tender text
Hydro Separator (ANSI flange 2-4")
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 2 1/2" ANSI 150 flange. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F. Material: steel.
|
|||
| 548082A | 3" ANSI 150 flange |
||
|
3D models
Tender text
Hydro Separator (ANSI flange 2-4")
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 3" ANSI 150 flange. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F. Material: steel.
|
|||
| 548102A | 4" ANSI 150 flange |
||
|
3D models
Tender text
Hydro Separator (ANSI flange 2-4")
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 4" ANSI 150 flange. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F. Material: steel.
|
|||
