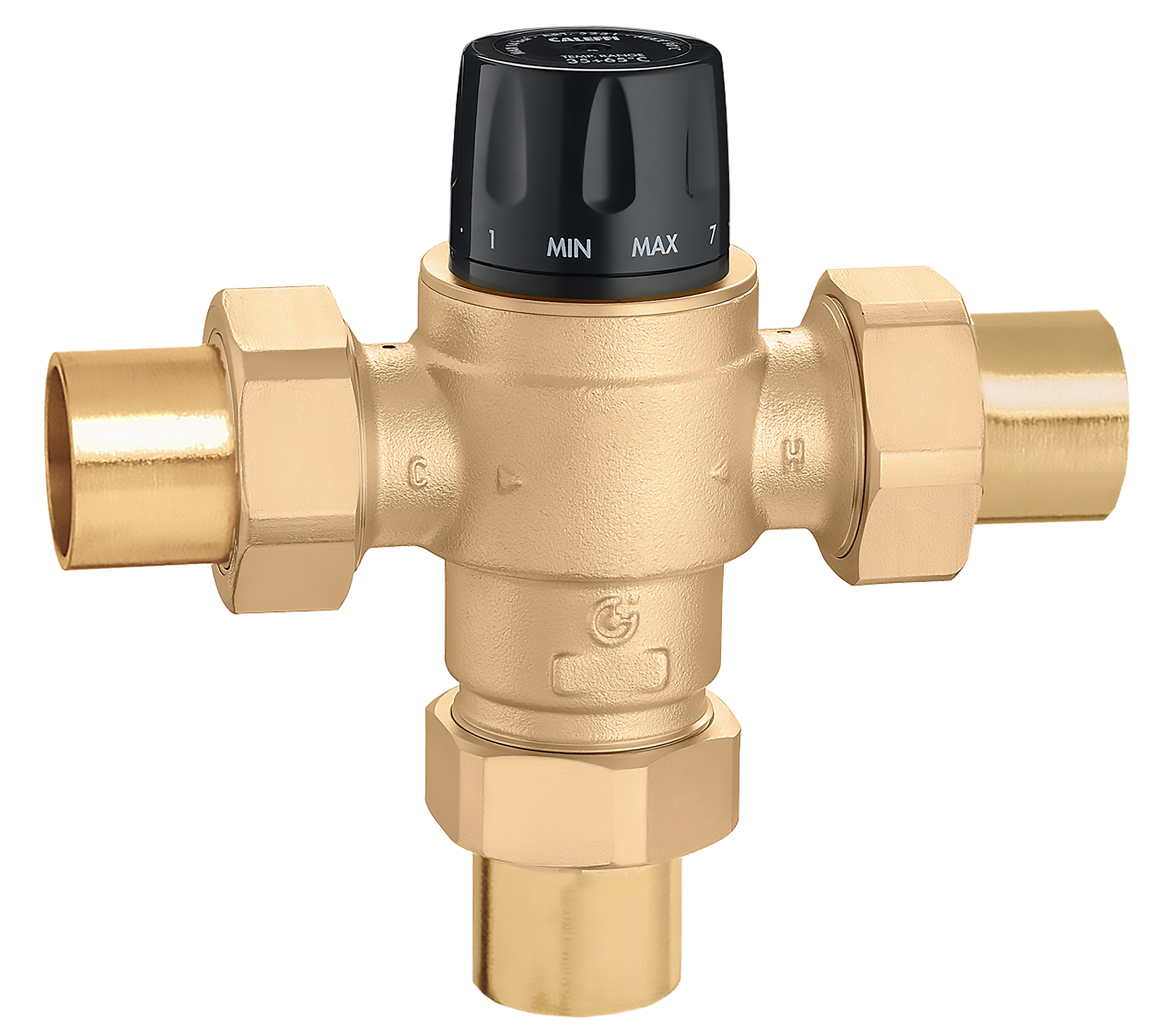

MixCal+™, High flow adjustable thermostatic mixing valve (sweat)
Product Description
High flow adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
95 – 150 °F
Maximum inlet temperature:
195 °F
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Flow rate working range | Cv |
|---|---|---|---|
| 523168A | 1" PRS sweat union |
4.4 – 40 gpm | 7 |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 523168A, MixCal+™.
High flow adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 1" PRS, sweat union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 4.4 – 40 gpm. Cv: 7. Material: DZR low lead brass.
SCIP code
5fee7285-1f43-4bc3-8c7e-39da46b81b6c
|
|||
| 523178A | 1 1/4" PRS sweat union |
4.4 – 40 gpm | 7.6 |
|
3D models
Tender text
CALEFFI, 523178A, MixCal+™.
High flow adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 1 1/4" PRS, sweat union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 4.4 – 40 gpm. Cv: 7.6. Material: DZR low lead brass.
|
|||
| 523188A | 1 1/2" PRS sweat union |
8.8 – 70 gpm | 13 |
|
3D models
Tender text
CALEFFI, 523188A, MixCal+™.
High flow adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 1 1/2" PRS, sweat union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 8.8 – 70 gpm. Cv: 13. Material: DZR low lead brass.
|
|||
| 523198A | 2" PRS sweat union |
8.8 – 70 gpm | 14.2 |
|
3D models
Tender text
CALEFFI, 523198A, MixCal+™.
High flow adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 2" PRS, sweat union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 8.8 – 70 gpm. Cv: 14.2. Material: DZR low lead brass.
|
|||
igs
stp
bim
