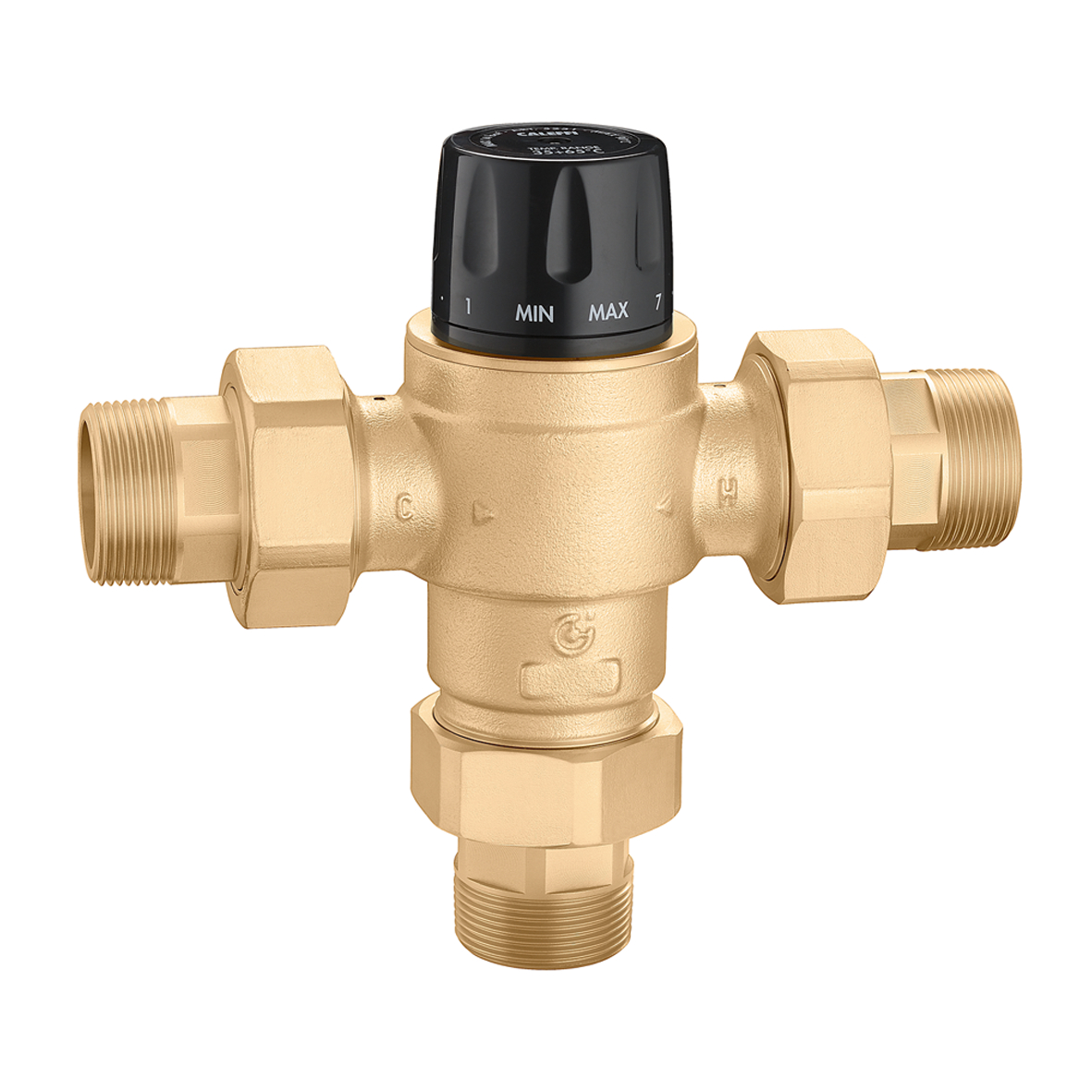

MixCal+™, High flow adjustable thermostatic mixing valve (NPT)
Product Description
High flow adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
95 – 150 °F
Maximum inlet temperature:
195 °F
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Flow rate working range | Cv |
|---|---|---|---|
| 523160A | 1" MNPT union |
4.4 – 40 gpm | 7 |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 1" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 4.4 – 40 gpm. Cv: 7. Material: DZR low lead brass.
|
|||
| 523170A | 1 1/4" MNPT union |
4.4 – 40 gpm | 7.6 |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 1 1/4" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 4.4 – 40 gpm. Cv: 7.6. Material: DZR low lead brass.
|
|||
| 523180A | 1 1/2" MNPT union |
8.8 – 70 gpm | 13 |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 1 1/2" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 8.8 – 70 gpm. Cv: 13. Material: DZR low lead brass.
|
|||
| 523190A | 2" MNPT union |
8.8 – 70 gpm | 14.2 |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
connection: 2" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 8.8 – 70 gpm. Cv: 14.2. Material: DZR low lead brass.
|
|||
