Series 5231

MixCal+™, High flow adjustable thermostatic mixing valve w/ temp. gauge (sweat)

Go to
Download high resolution

Product Description

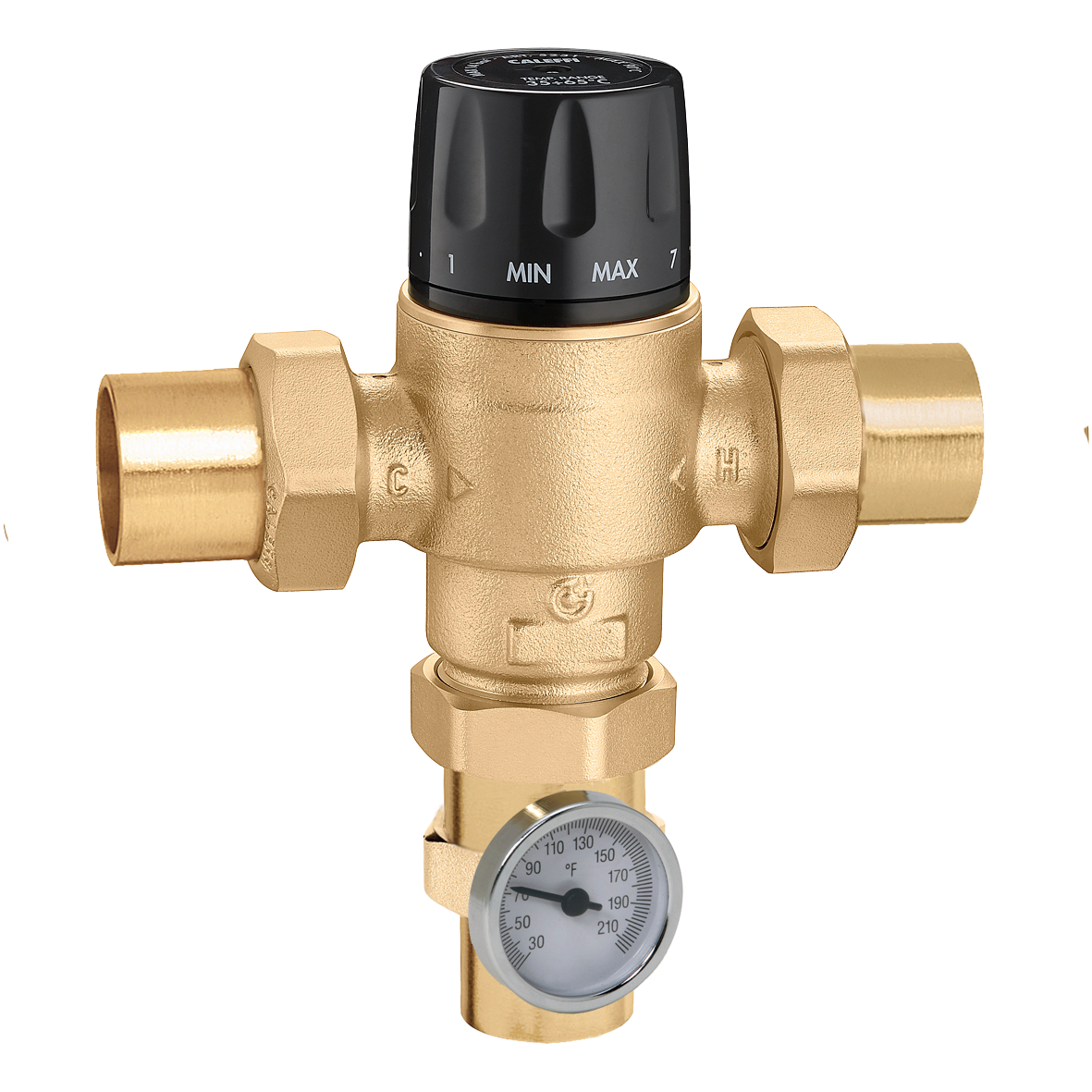

High flow adjustable thermostatic mixing valve w/ temp. gauge (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism

Technical data

Maximum operating pressure: 200 psi
Adjustment temperature range: 95 – 150 °F
Maximum inlet temperature: 195 °F
Temperature gauge scale: 30 – 210 °F
Material: DZR low lead brass

Certifications

ES LOW LEAD
Buy American Act
California HSC 116875
Maryland HB372
United States S.3874
Vermont Act 193
IPC
IRC
UPC
NPC
CSA B125.3
ASSE1017
NSF/ANSI/CAN 372
Find us in MasterSpec

Download

01256_NA.pdf pdf
Technical brochure
Download
NA10341.pdf pdf
Instruction sheet
Download
NA11043.pdf pdf
Instruction sheet
Revit Content Instruction Guide
Download
03587_NA.pdf pdf
Sell sheet
Download
03010_NA.pdf pdf
Submittal data
Download

Drawings and specifications

Part number Connection Flow rate working range Cv
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
High flow adjustable thermostatic mixing valve w/ temp. gauge (sweat) For point of distribution in domestic water systems and radiant hydronic heating systems Adjustable knob with setpoint locking mechanism connection: 1 1/4", sweat union. Maximum operating pressure: 200 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Temperature gauge scale: 30 – 210 °F. Flow rate working range: 4.4 – 40 gpm. Cv: 7.6. Material: DZR low lead brass.
