PresCal™, Compact (sweat)
Product Description
Compact (sweat)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point.
Technical data
Maximum working pressure:
250 psi
Medium temperature range:
35.6–180 °F
Setting:
45 psi
Adjustment pressure range:
15–80 psi
Material:
low lead brass
Certifications
![ES LOW LEAD ES LOW LEAD](/sites/default/files/certifications/ICC%20ES%20PMG-LOW%20LEAD.jpg)
![Buy American Act Buy American Act](/sites/default/files/certifications/Buy-American-Act.png)
![California HSC 116875 California HSC 116875](/sites/default/files/certifications/California-HSC-116875.png)
![Maryland HB372 Maryland HB372](/sites/default/files/certifications/Maryland-HB372.png)
![United States S.3874 United States S.3874](/sites/default/files/certifications/United-States-S.3874.png)
![Vermont Act 193 Vermont Act 193](/sites/default/files/certifications/Vermont-Act-193-.png)
![CSA B356 CSA B356](/sites/default/files/certifications/CSA-B356.png)
![ASSE 1003 ASSE 1003](/sites/default/files/certifications/ASSE1003.png)
![NSF/ANSI/CAN 61 NSF/ANSI/CAN 61](/sites/default/files/certifications/CAN-61.png)
![NSF/ANSI/CAN 372 NSF/ANSI/CAN 372](/sites/default/files/certifications/NSF-ANSI-CAN-372.png)
Download
Drawings and specifications
Part number | Connection | Note | Minimum flow rate |
---|---|---|---|

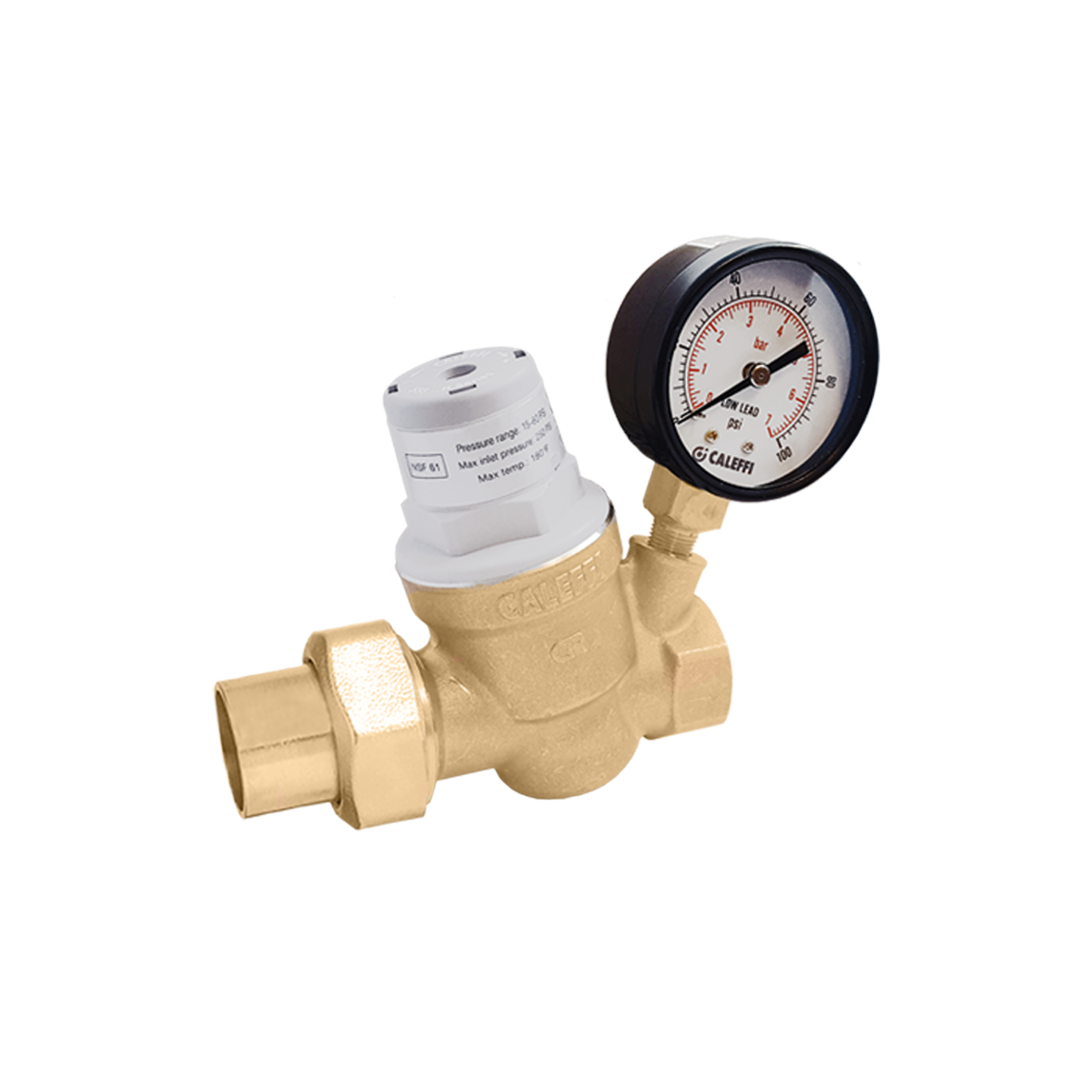

533940HA | 1/2" sweat union |
Inlet fittings | 0.9 gpm |
Maximum flow rate
5.6 gpm
|
|||
3D models
Tender text
Compact (sweat)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 1/2", sweat union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 0.9 gpm. Maximum flow rate: 5.6 gpm. Material: low lead brass.
|
|||
533941HA | 1/2" sweat union |
Inlet fittings | 0.9 gpm |
Maximum flow rate
5.6 gpm
|
|||
3D models
Tender text
Compact (sweat)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 1/2", sweat union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 0.9 gpm. Maximum flow rate: 5.6 gpm. Material: low lead brass.
|
|||
533950HA | 3/4" sweat union |
Inlet fittings | 1.5 gpm |
Maximum flow rate
10 gpm
|
|||
3D models
Tender text
Compact (sweat)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 3/4", sweat union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 1.5 gpm. Maximum flow rate: 10 gpm. Material: low lead brass.
|
|||

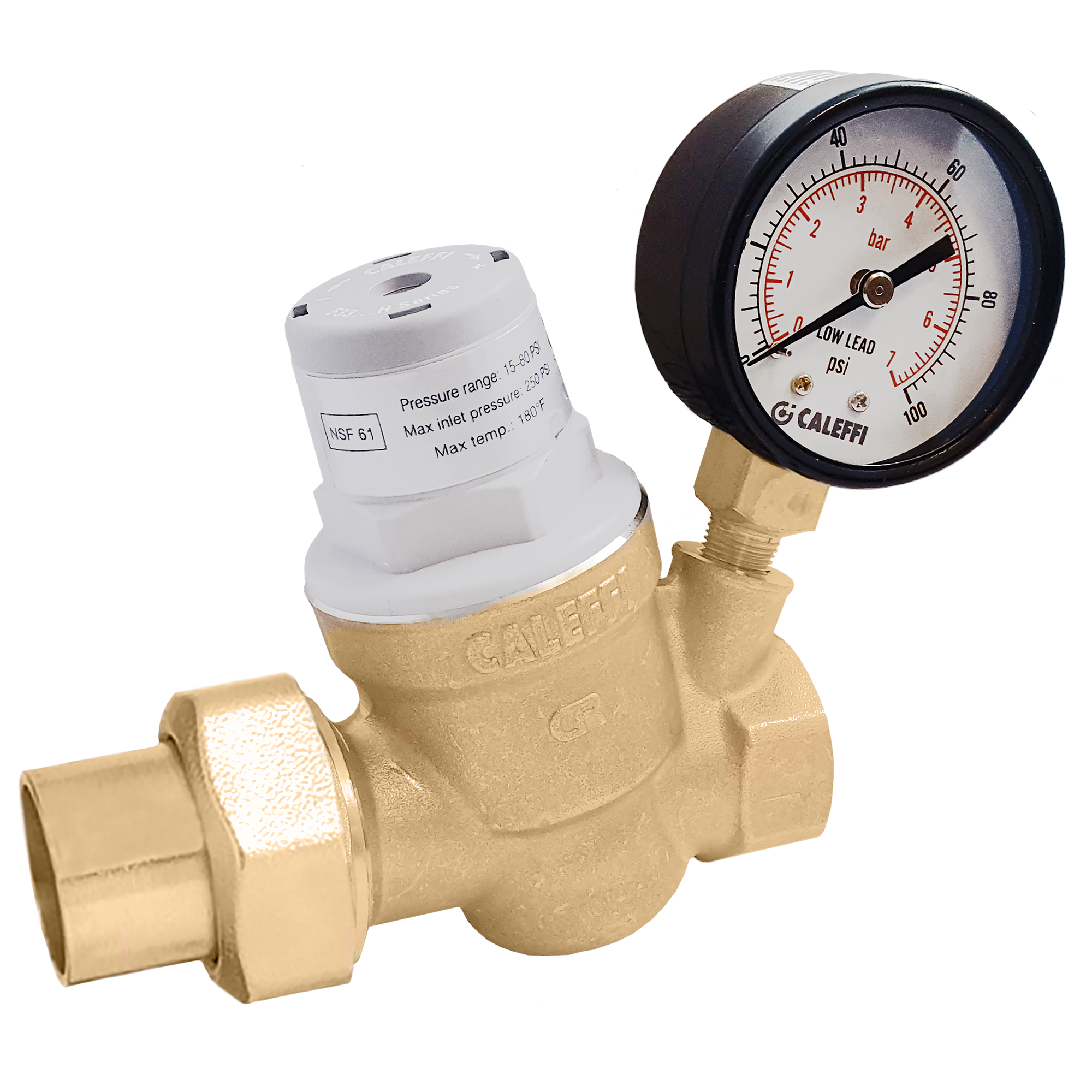

533951HA | 3/4" sweat union |
Inlet fittings | 1.5 gpm |
Maximum flow rate
10 gpm
|
|||
3D models
Tender text
Compact (sweat)
Compact pressure reducing valve for residential and light commercial applications.
Tamper-resistant cap included.
Low friction anti-scale moving parts. High flow seat design. Adjustment screw for pressure set point. Connection: 3/4", sweat union. Maximum working pressure: 250 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 15–80 psi. Minimum flow rate: 1.5 gpm. Maximum flow rate: 10 gpm. Material: low lead brass.
|
