PresCal™, Pressure reducing valve (press)

Go to

Download high resolution

Product Description

Pressure reducing valve (press)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation
Field serviceable cartridge

Technical data

Material: DZR low lead brass

Adjustment pressure range: 15 – 90 psi

Maximum working temperature: 180 °F

Maximum operating pressure: 300 psi

Certifications

Download

Drawings and specifications

Part number	Connection	Note	Maximum flow rate

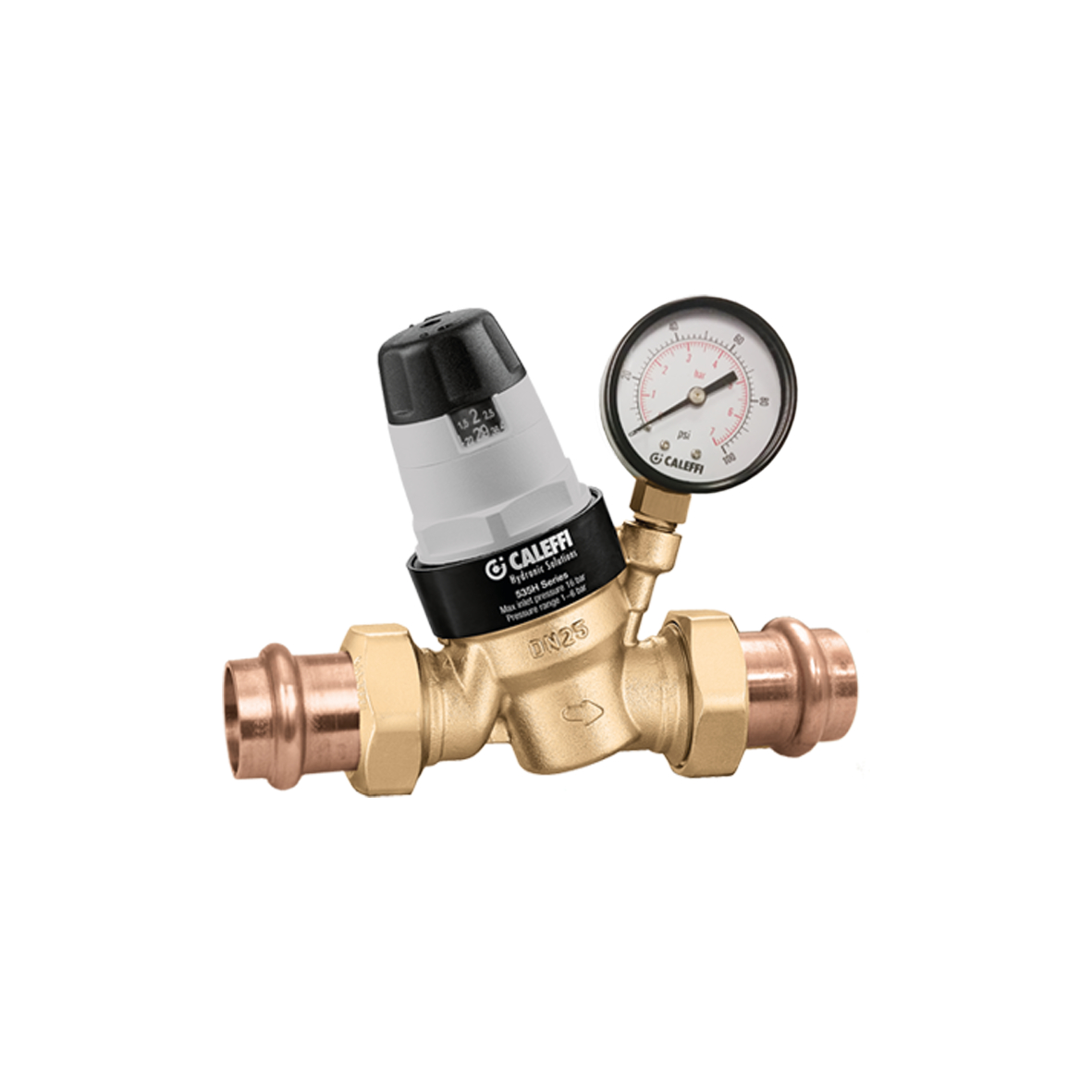

535640HA	1/2" Press union	-	7.3 gpm
3D models Tender text CALEFFI, 535640HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1/2" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 7.3 gpm. Material: DZR low lead brass.

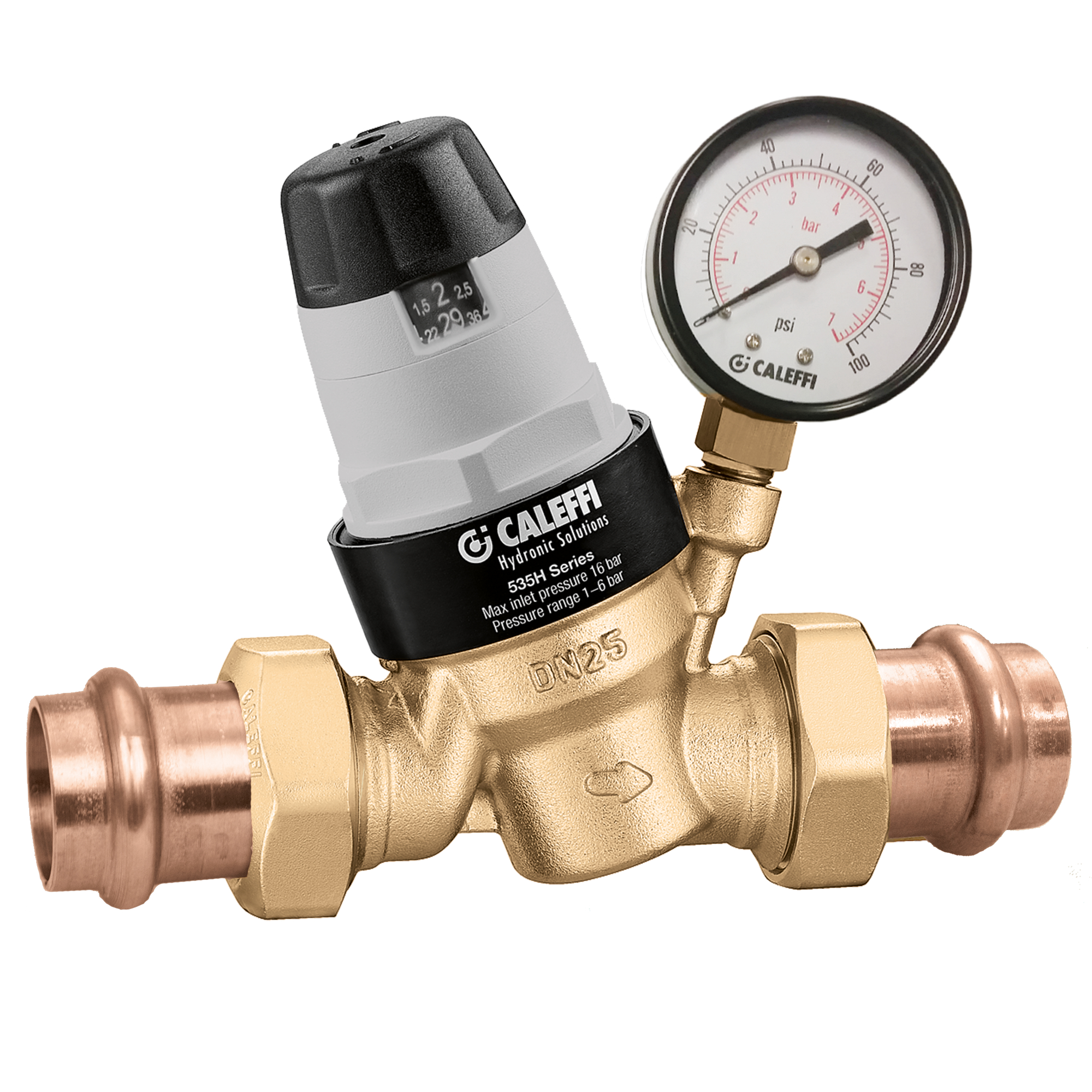

535641HA	1/2" Press union	With pressure gauge	7.3 gpm
3D models bim Tender text CALEFFI, 535641HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1/2" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 7.3 gpm. Material: DZR low lead brass.
535650HA	3/4" Press union	-	12.5 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535650HA_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535650HA_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535650HA_Simplify_1.stp bim Tender text CALEFFI, 535650HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 3/4" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 12.5 gpm. Material: DZR low lead brass.
535651HA	3/4" Press union	With pressure gauge	12.5 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535651HA_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535651HA_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535651HA_Simplify_1.stp bim Tender text CALEFFI, 535651HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 3/4" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 12.5 gpm. Material: DZR low lead brass.
535660HA	1" Press union	-	19 gpm
3D models bim Tender text CALEFFI, 535660HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 19 gpm. Material: DZR low lead brass.
535661HA	1" Press union	With pressure gauge	19 gpm
3D models bim Tender text CALEFFI, 535661HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 19 gpm. Material: DZR low lead brass.
535670HA	1 1/4" Press union	-	34 gpm
3D models bim Tender text CALEFFI, 535670HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1 1/4" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 34 gpm. Material: DZR low lead brass.
535671HA	1 1/4" Press union	With pressure gauge	34 gpm
3D models bim Tender text CALEFFI, 535671HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1 1/4" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 34 gpm. Material: DZR low lead brass.
535680HA	1 1/2" Press union	-	44 gpm
3D models bim Tender text CALEFFI, 535680HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1 1/2" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 44 gpm. Material: DZR low lead brass.
535681HA	1 1/2" Press union	With pressure gauge	44 gpm
3D models bim Tender text CALEFFI, 535681HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1 1/2" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 44 gpm. Material: DZR low lead brass.
535690HA	2" Press union	-	70 gpm
3D models bim Tender text CALEFFI, 535690HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 2" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 70 gpm. Material: DZR low lead brass.
535691HA	2" Press union	With pressure gauge	70 gpm
3D models bim Tender text CALEFFI, 535691HA, PresCal™. Pressure reducing valve (press) Pressure reducing valve for residential and commercial applications UV protective cover included Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 2" Press, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 70 gpm. Material: DZR low lead brass.
