Series 535

PresCal™, Pressure reducing valve (NPT)

Download high resolution

Product Description

Pressure reducing valve (NPT)
Pressure reducing valve for residential and commercial applications
Field serviceable cartridge
UV protective cover included
Optional pressure gauge

Technical data

Material: DZR low lead brass

Maximum working temperature: 180 °F

Pressure adjustment range: 15 – 90 psi

Maximum working pressure: 300 psi

Certifications

Download

Drawings and specifications

Part number	Connection	Note

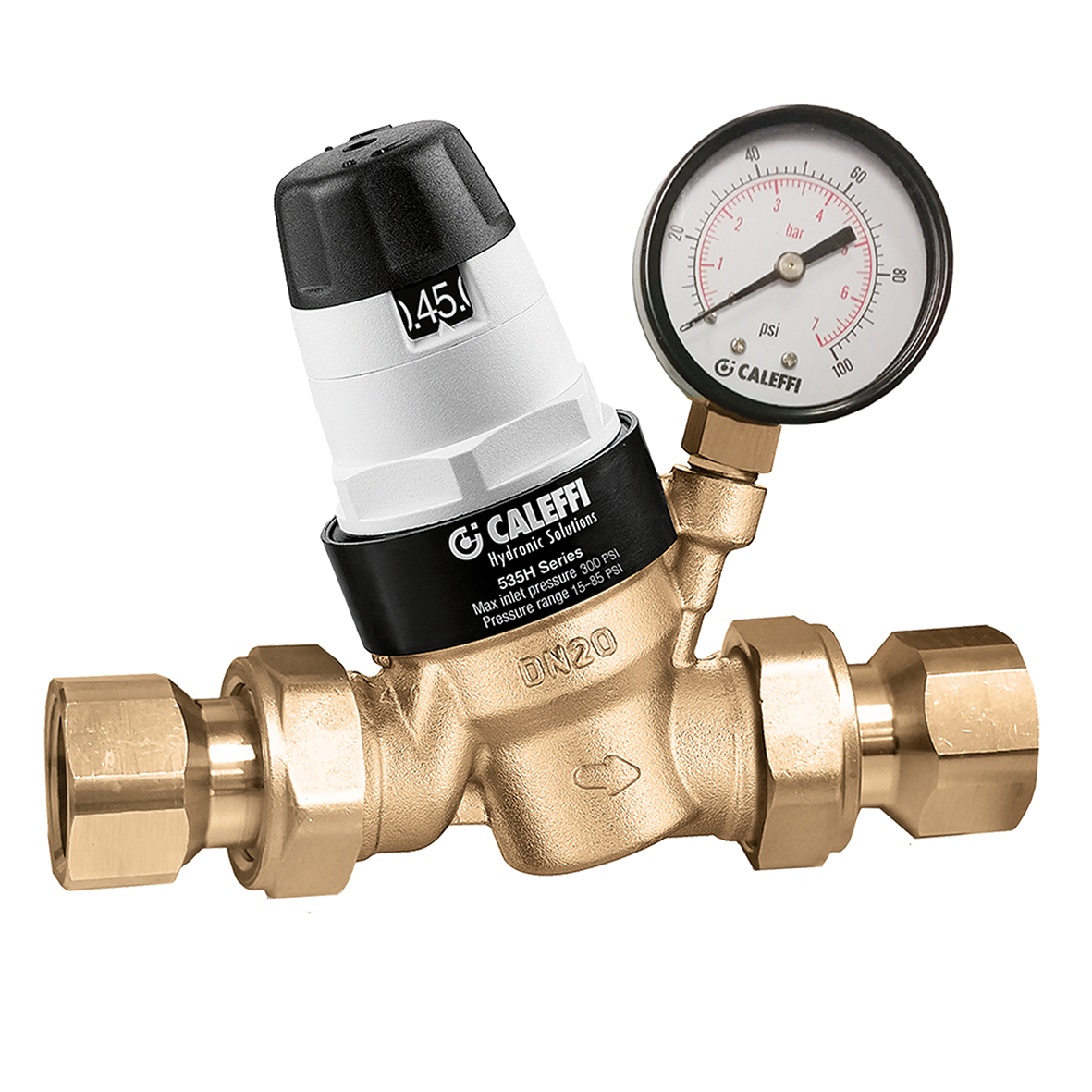

535340HA	1/2" NPT female union	-
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535340HA_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535340HA_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535340HA_Simplify_1.stp bim Tender text CALEFFI, 535340HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1/2" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.

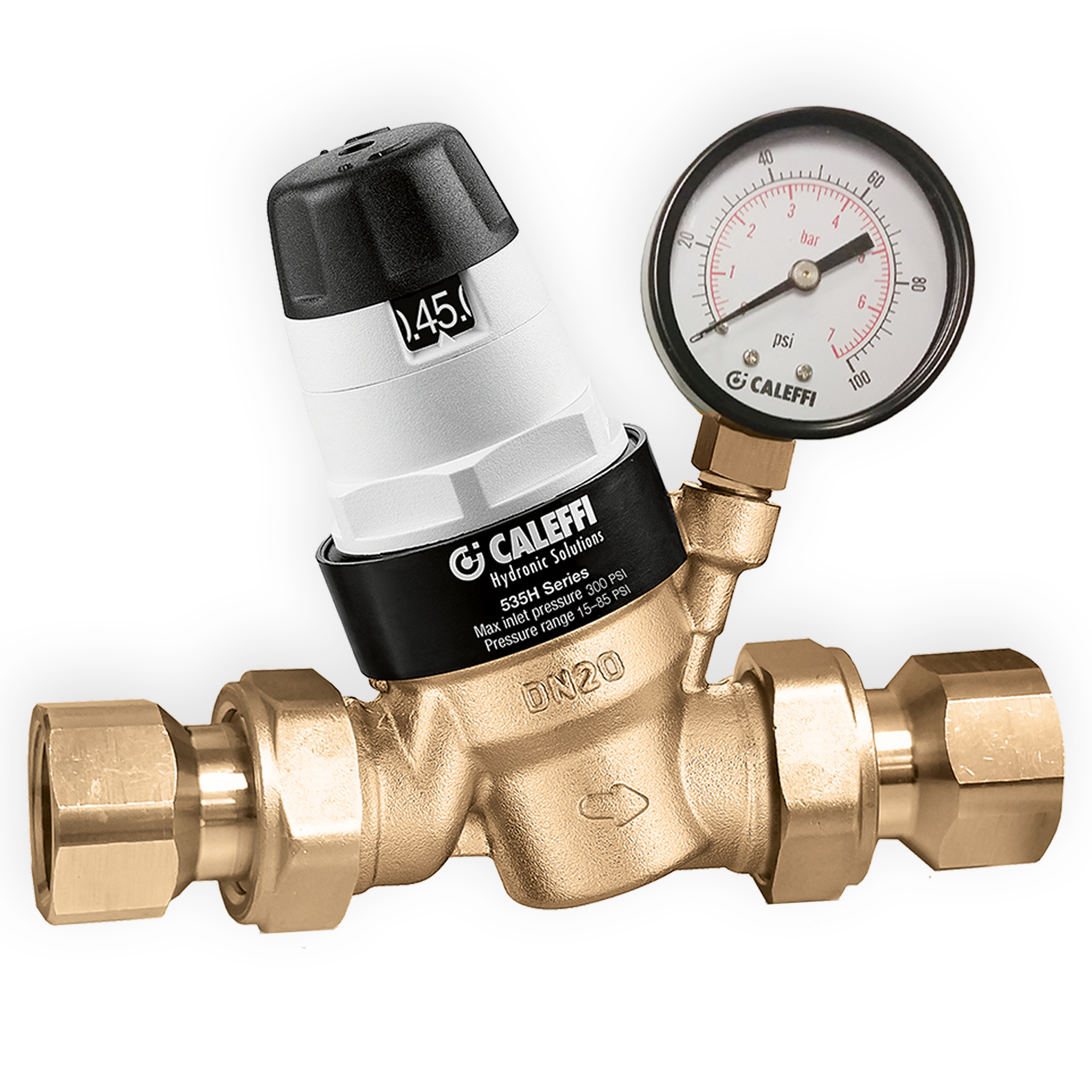

535341HA	1/2" NPT female union	Pressure gauge
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535341HA_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535341HA_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535341HA_Simplify_1.stp bim Tender text CALEFFI, 535341HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1/2" NPT female, union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 7.3 gpm. Material: DZR low lead brass. SCIP code fdcac70b-a658-4d9c-b402-7ee1c993d829
535350HA	3/4" NPT female union	-
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535350HA_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535350HA_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535350HA_Simplify_1.stp bim Tender text CALEFFI, 535350HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 3/4" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535351HA	3/4" NPT female union	Pressure gauge
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535351HA_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535351HA_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535351HA_Simplify_1.stp bim Tender text CALEFFI, 535351HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 3/4" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535360HA	1" NPT female union	-
3D models bim Tender text CALEFFI, 535360HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535361HA	1" NPT female union	Pressure gauge
3D models bim Tender text CALEFFI, 535361HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535370HA	1 1/4" NPT female union	-
3D models bim Tender text CALEFFI, 535370HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1 1/4" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535371HA	1 1/4" NPT female union	Pressure gauge
3D models bim Tender text CALEFFI, 535371HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1 1/4" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535380HA	1 1/2" NPT female union	-
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535380HA_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535380HA_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535380HA_Simplify_1.stp bim Tender text CALEFFI, 535380HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1 1/2" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535381HA	1 1/2" NPT female union	Pressure gauge
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535381HA%20_Simplify_1.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535381HA%20_Simplify_1.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535381HA%20_Simplify_1.stp bim Tender text CALEFFI, 535381HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 1 1/2" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535390HA	2" NPT female union	-
3D models bim Tender text CALEFFI, 535390HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 2" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
535391HA	2" NPT female union	Pressure gauge
3D models stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/535391HA.stp bim Tender text CALEFFI, 535391HA, PresCal™. Pressure reducing valve (NPT) Pressure reducing valve for residential and commercial applications Field serviceable cartridge UV protective cover included Optional pressure gauge connection: 2" NPT female, union. Maximum working pressure: 300 psi. Maximum working temperature: 180 °F. Pressure adjustment range: 15 – 90 psi. Material: DZR low lead brass.
