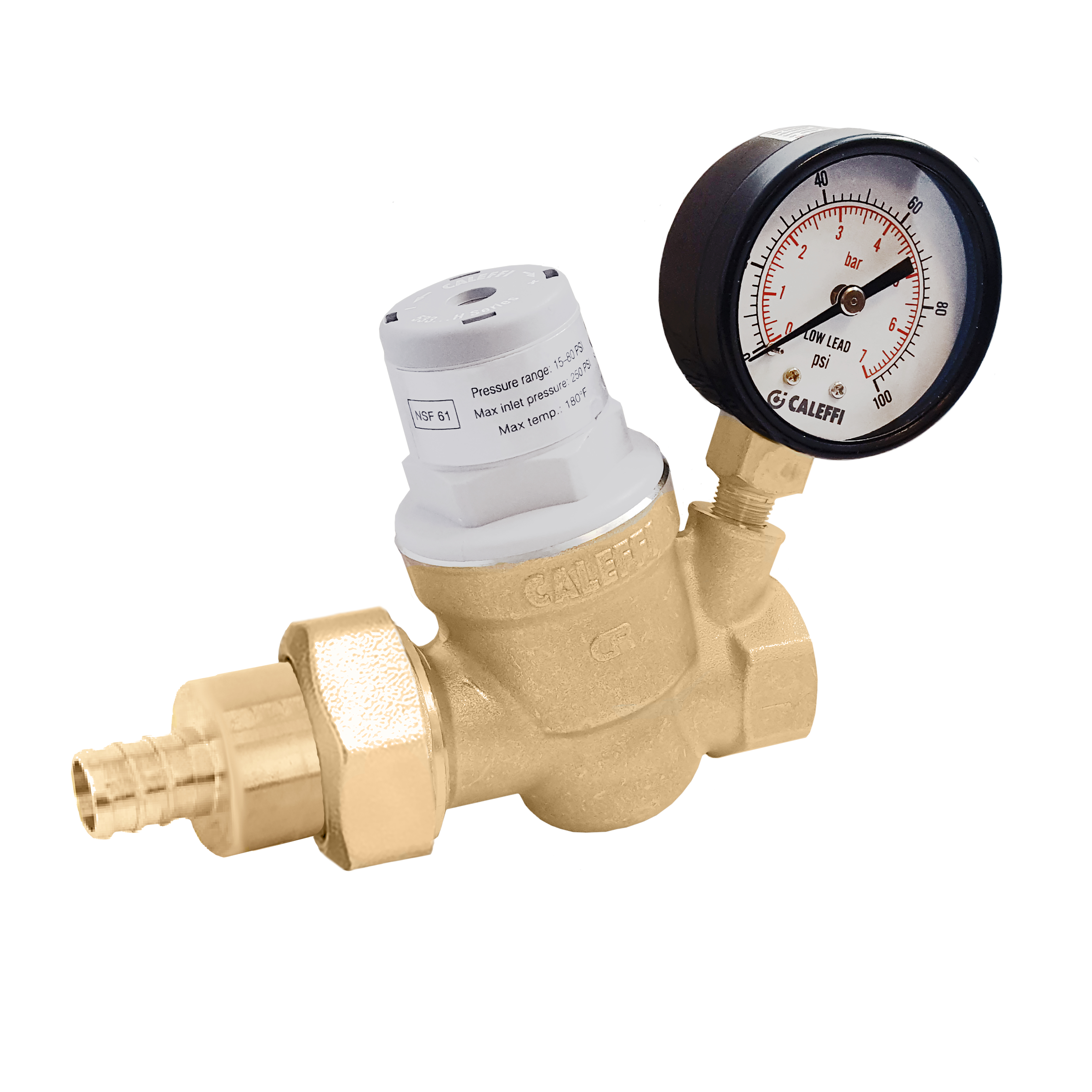

Series 533

PresCal™, Compact (PEX)

Go to
Download high resolution

Product Description

Compact (PEX)
Compact pressure reducing valve for residential and light commercial applications
Field serviceable cartridge
Tamper-resistant cap included
Optional pressure gauge

Technical data

Material: DZR low lead brass
Adjustment pressure range: 15 – 80 psi
Maximum working temperature: 180 °F
Maximum operating pressure: 250 psi
Low Lead

Certifications

ES LOW LEAD
Buy American Act
California HSC 116875
United States S.3874
Vermont Act 193
Maryland HB372
IPC
IRC
UPC
CSA B356
ASSE 1003
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
Find us in MasterSpec

Download

01252_NA.pdf pdf
Technical brochure
Download
NA10617.pdf pdf
Instruction sheet
Download
NA11034.pdf pdf
Instruction sheet
Revit Content Instruction Guide
Download
03568_NA.pdf pdf
Sell sheet
Download
03025_NA.pdf pdf
Submittal data
Download

Drawings and specifications

Part number Connection Note Maximum flow rate
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 533750HA, PresCal™. Compact (PEX) Compact pressure reducing valve for residential and light commercial applications Field serviceable cartridge Tamper-resistant cap included Optional pressure gauge connection: 3/4" Press, PEX crimp union. Maximum operating pressure: 250 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 80 psi. Maximum flow rate: 10 gpm. Material: DZR low lead brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 533751HA, PresCal™. Compact (PEX) Compact pressure reducing valve for residential and light commercial applications Field serviceable cartridge Tamper-resistant cap included Optional pressure gauge connection: 3/4" Press, PEX crimp union. Maximum operating pressure: 250 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 80 psi. Maximum flow rate: 10 gpm. Material: DZR low lead brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 533850HA, PresCal™. Compact (PEX) Compact pressure reducing valve for residential and light commercial applications Field serviceable cartridge Tamper-resistant cap included Optional pressure gauge connection: 3/4" Press, PEX expansion union. Maximum operating pressure: 250 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 80 psi. Maximum flow rate: 10 gpm. Material: DZR low lead brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 533851HA, PresCal™. Compact (PEX) Compact pressure reducing valve for residential and light commercial applications Field serviceable cartridge Tamper-resistant cap included Optional pressure gauge connection: 3/4" Press, PEX expansion union. Maximum operating pressure: 250 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 80 psi. Maximum flow rate: 10 gpm. Material: DZR low lead brass.
