PresCal™, Pressure reducing valve (PEX)
Product Description
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation
Field serviceable cartridge
Technical data
Material:
DZR low lead brass
Adjustment pressure range:
15 – 90 psi
Maximum working temperature:
180 °F
Maximum operating pressure:
300 psi
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Maximum flow rate |
|---|---|---|---|
| 535550HA | 3/4" Press PEX expansion union |
- | 19 gpm |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 535550HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 3/4" Press, PEX expansion union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 19 gpm. Material: DZR low lead brass.
|
|||
| 535551HA | 3/4" Press PEX expansion union |
With pressure gauge | 19 gpm |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 535551HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 3/4" Press, PEX expansion union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 19 gpm. Material: DZR low lead brass.
|
|||

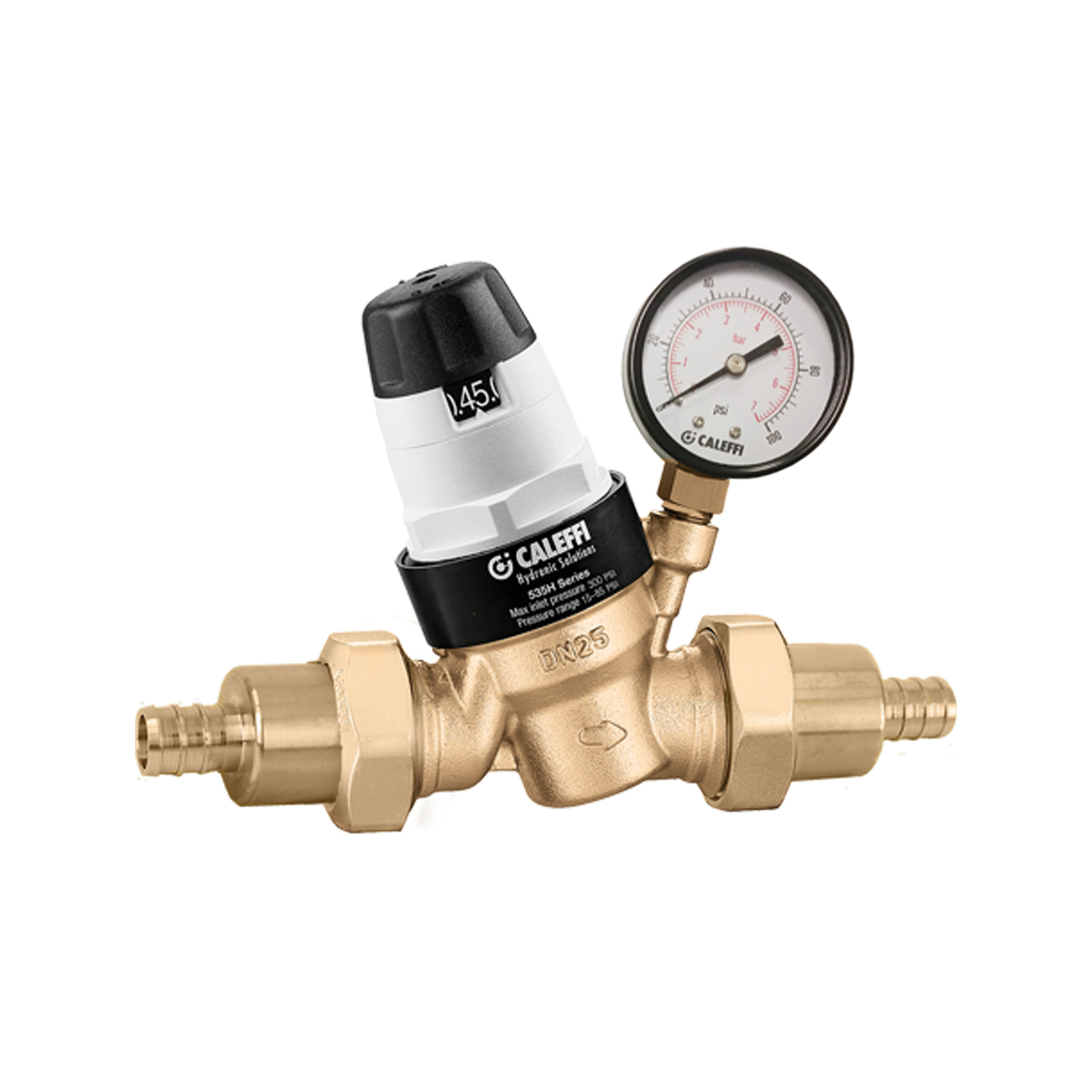

| 535750HA | 3/4" Press PEX crimp union |
- | 12.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 535750HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 3/4" Press, PEX crimp union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 12.5 gpm. Material: DZR low lead brass.
|
|||

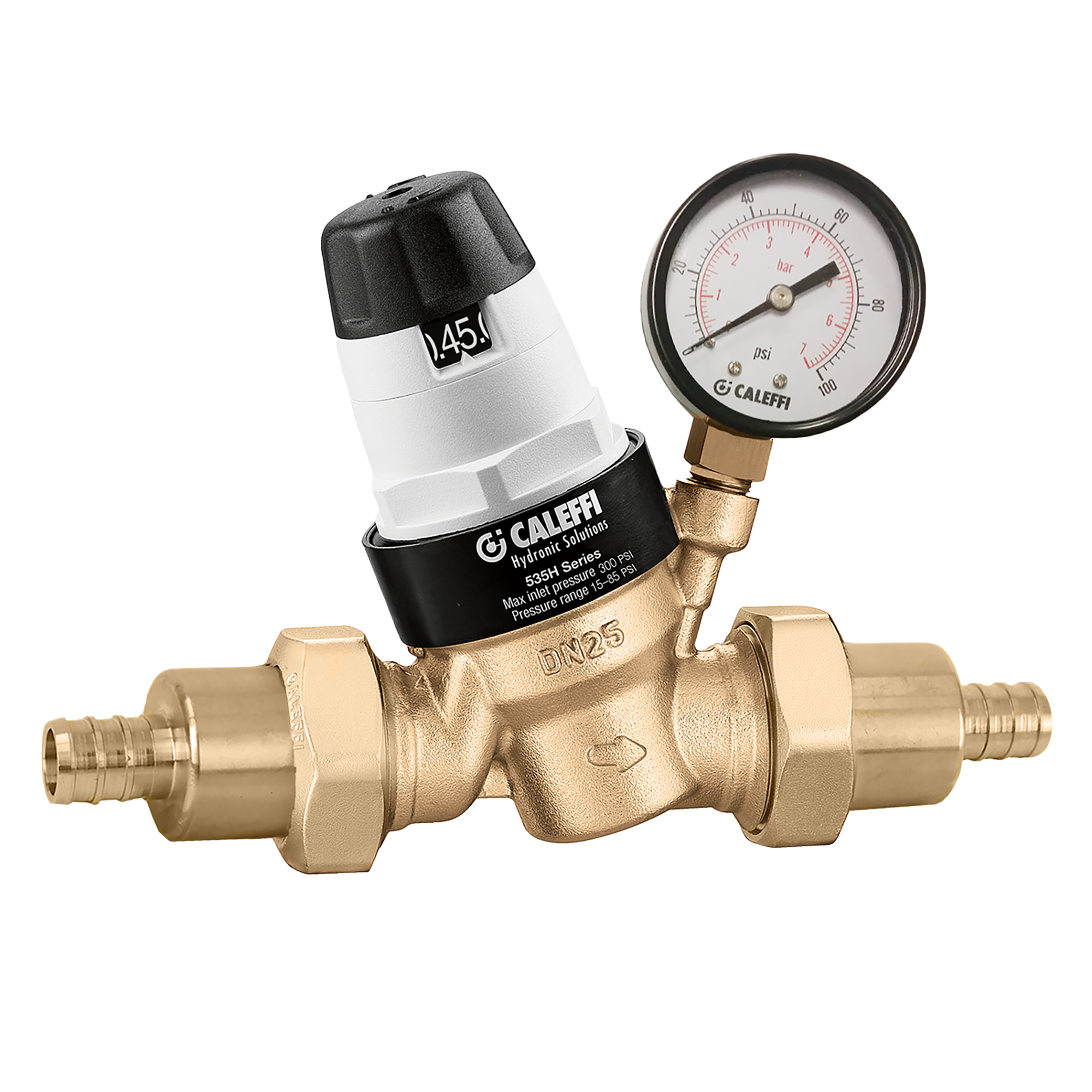

| 535751HA | 3/4" Press PEX crimp union |
With pressure gauge | 12.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 535751HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 3/4" Press, PEX crimp union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 12.5 gpm. Material: DZR low lead brass.
|
|||
| 535560HA | 1" Press PEX expansion union |
- | 19 gpm |
|
3D models
Tender text
CALEFFI, 535560HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1" Press, PEX expansion union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 19 gpm. Material: DZR low lead brass.
|
|||
| 535561HA | 1" Press PEX expansion union |
With pressure gauge | 19 gpm |
|
3D models
Tender text
CALEFFI, 535561HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1" Press, PEX expansion union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 19 gpm. Material: DZR low lead brass.
|
|||
| 535760HA | 1" Press PEX crimp union |
- | 12.5 gpm |
|
3D models
Tender text
CALEFFI, 535760HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1" Press, PEX crimp union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 12.5 gpm. Material: DZR low lead brass.
|
|||
| 535761HA | 1" Press PEX crimp union |
With pressure gauge | 12.5 gpm |
|
3D models
Tender text
CALEFFI, 535761HA, PresCal™.
Pressure reducing valve (PEX)
Pressure reducing valve for residential and commercial applications
UV protective cover included
Front and back set point indication for visibility in any mounting orientation Field serviceable cartridge connection: 1" Press, PEX crimp union. Maximum operating pressure: 300 psi. Maximum working temperature: 180 °F. Adjustment pressure range: 15 – 90 psi. Maximum flow rate: 12.5 gpm. Material: DZR low lead brass.
|
|||
