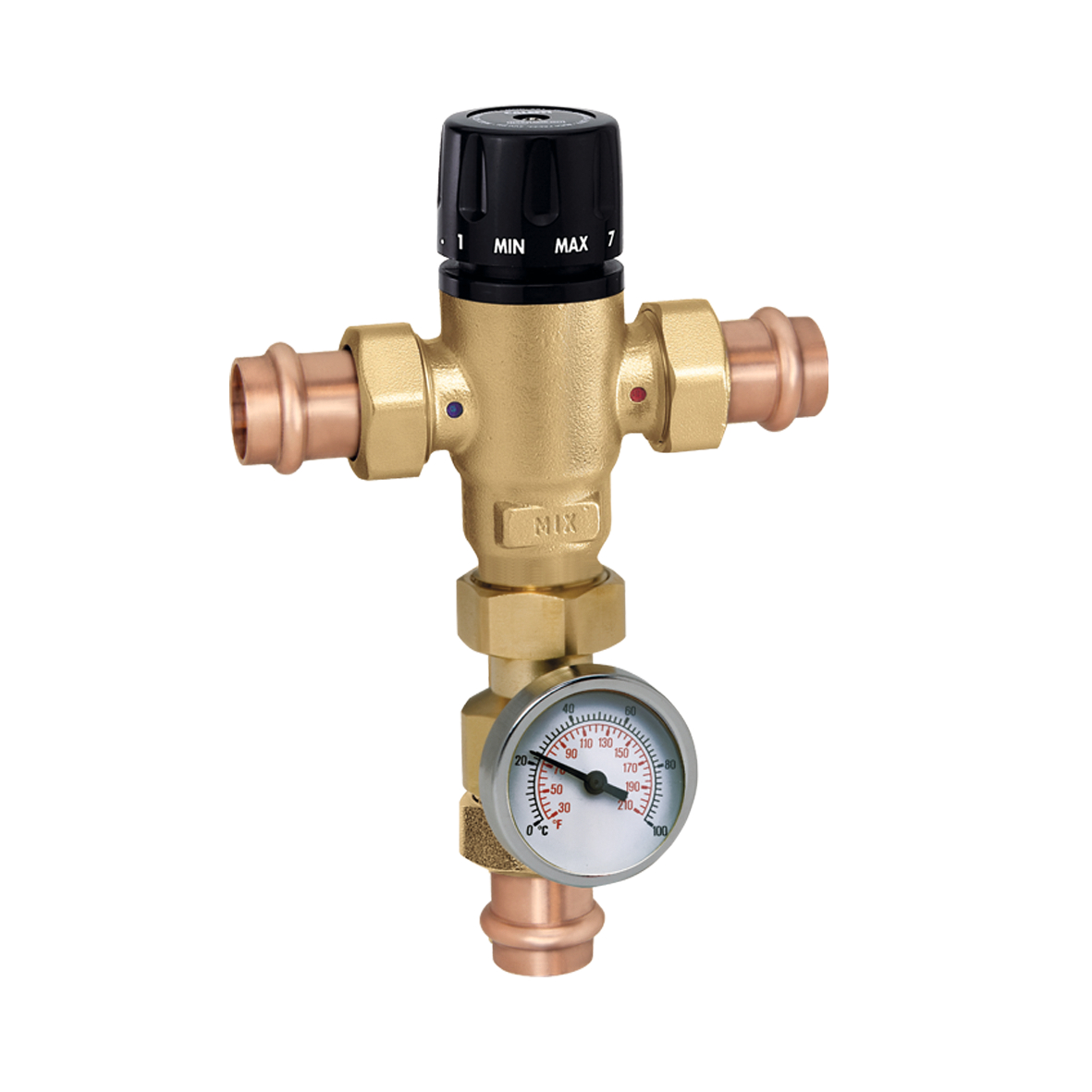

MixCal™, Adjustable thermostatic mixing valve with gauge (press)
Product Description
Adjustable thermostatic mixing valve with gauge (press)
Locking set point knob.
(0 gpm with recirculation).
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
85–150 °F
Maximum inlet temperature:
200 °F
Temperature gauge scale:
30–210 °F
Flow rate working range:
1.0-14 gpm
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Code | Connection | Note | Cv |
|---|---|---|---|
| 521416A | 1/2" press union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (press)
Locking set point knob. (0 gpm with recirculation). connection: 1/2", press union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521416AC | 1/2" press union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (press)
Locking set point knob. (0 gpm with recirculation). connection: 1/2", press union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521516A | 3/4" press union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (press)
Locking set point knob. (0 gpm with recirculation). connection: 3/4", press union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521516AC | 3/4" press union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (press)
Locking set point knob. (0 gpm with recirculation). connection: 3/4", press union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521616A | 1" press union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (press)
Locking set point knob. (0 gpm with recirculation). connection: 1", press union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521616AC | 1" press union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (press)
Locking set point knob. (0 gpm with recirculation). connection: 1", press union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
