MixCal™, Adjustable thermostatic mixing valve (sweat)
Product Description

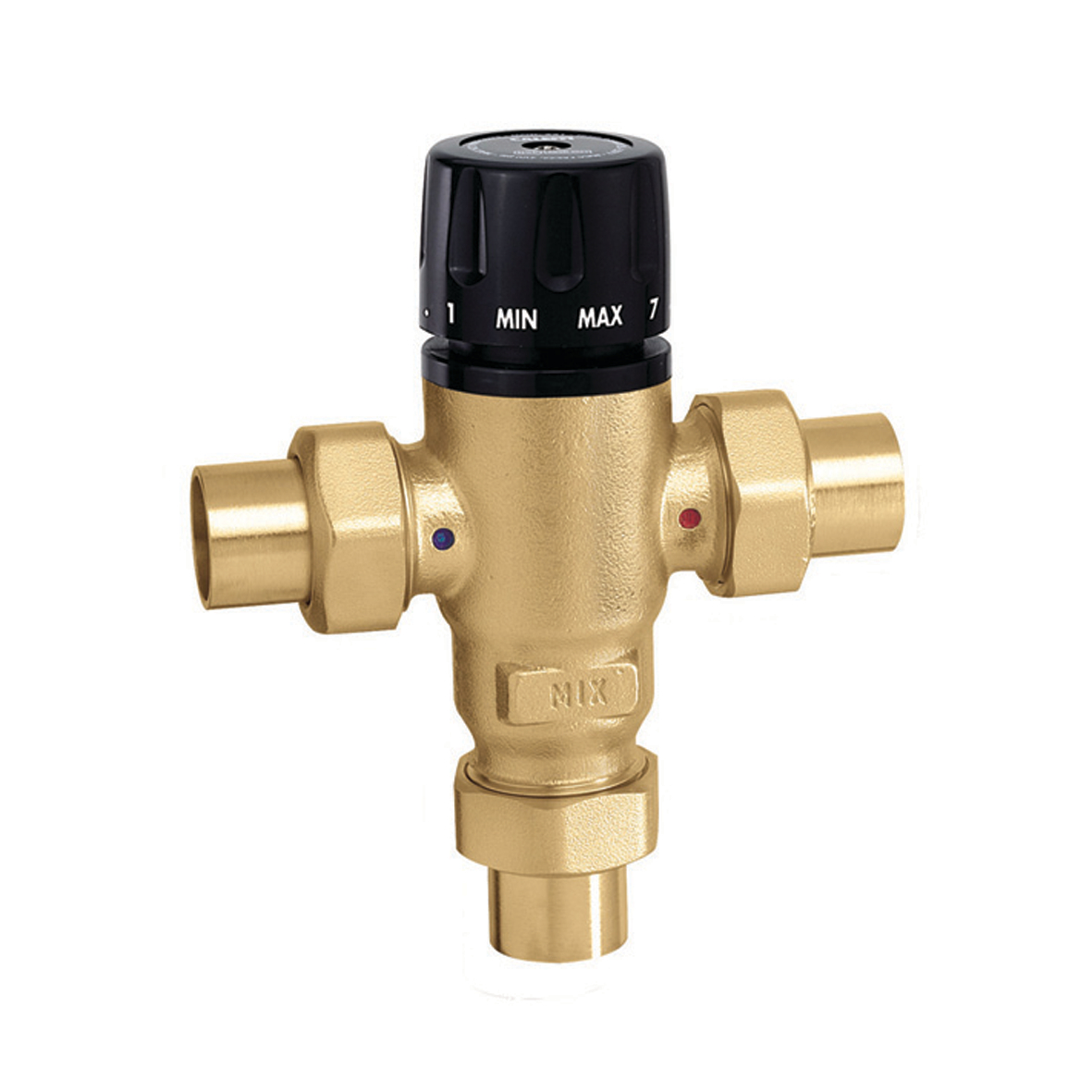

Adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
85 – 150 °F
Maximum inlet temperature:
200 °F
Flow rate working range:
1.0 – 14 gpm
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 521409A | 1/2" Sweat union |
- | 3 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 521409A, MixCal™.
Adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1/2" Sweat, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521409AC | 1/2" Sweat union |
Includes check valves | 3 |
|
3D models
Tender text
CALEFFI, 521409AC, MixCal™.
Adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1/2" Sweat, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521509A | 3/4" Sweat union |
- | 3 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 521509A, MixCal™.
Adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 3/4" Sweat, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521509AC | 3/4" Sweat union |
Includes check valves | 3 |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 521509AC, MixCal™.
Adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 3/4" Sweat, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
SCIP code
df6efd62-edde-4b72-bc81-36b22f92bc9f
|
|||
| 521609A | 1" Sweat union |
- | 3 |
|
3D models
Tender text
CALEFFI, 521609A, MixCal™.
Adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1" Sweat, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521609AC | 1" Sweat union |
Includes check valves | 3 |
|
3D models
Tender text
CALEFFI, 521609AC, MixCal™.
Adjustable thermostatic mixing valve (sweat)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1" Sweat, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
