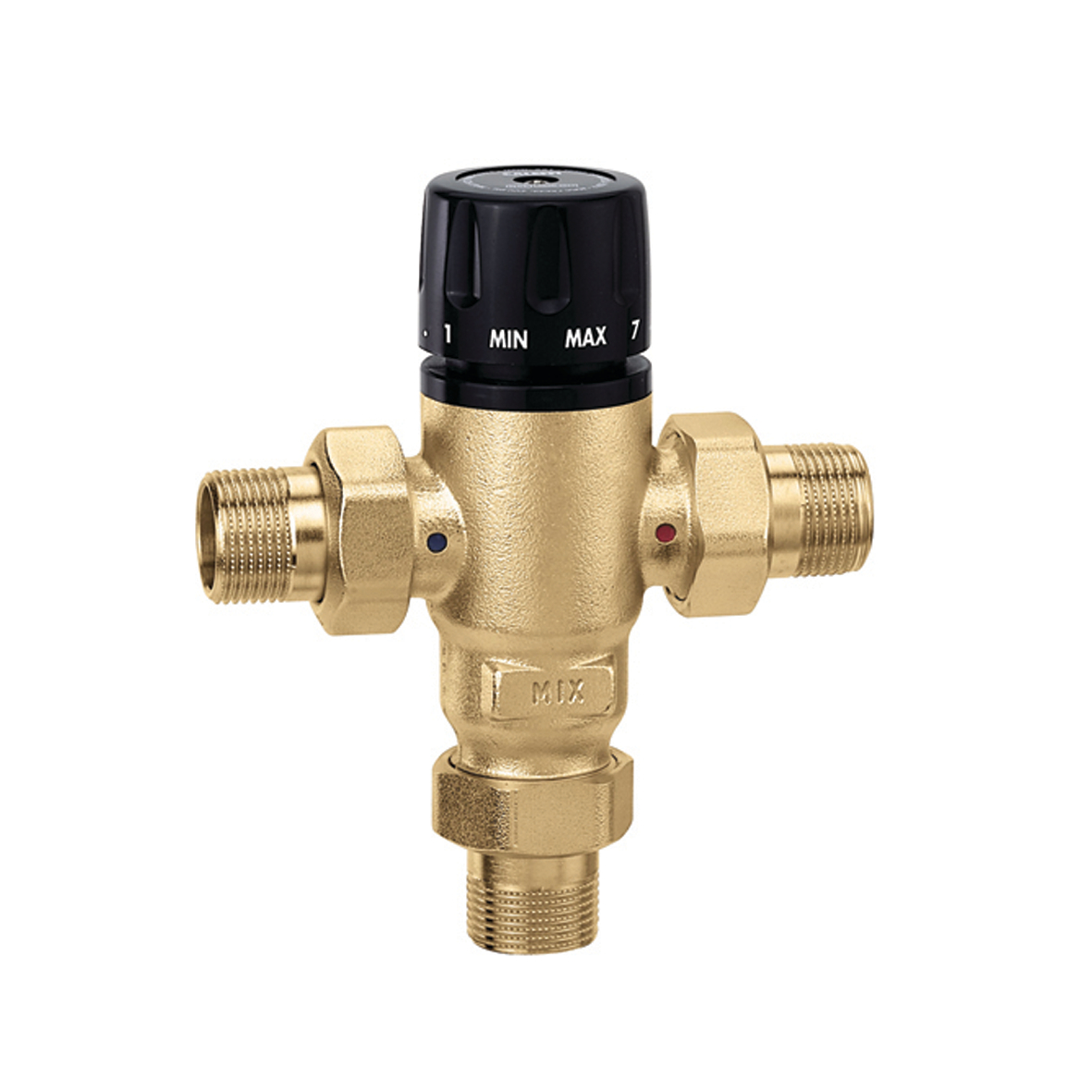

MixCal™, Adjustable thermostatic mixing valve (NPT)
Product Description
Adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
85 – 150 °F
Maximum inlet temperature:
200 °F
Flow rate working range:
1.0 – 14 gpm
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 521400A | 1/2" MNPT union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1/2" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521400AC | 1/2" MNPT union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1/2" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
SCIP code
3432ceae-2df2-4724-8102-f4e6e20abc0e
|
|||
| 521500A | 3/4" MNPT union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 3/4" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521500AC | 3/4" MNPT union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 3/4" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521600A | 1" MNPT union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521600AC | 1" MNPT union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve (NPT)
For point of distribution in domestic water systems and radiant hydronic heating systems
Adjustable knob with setpoint locking mechanism
Optional: Inlet check valves
connection: 1" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85 – 150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0 – 14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
bim
igs
stp
