MixCal™, Adjustable thermostatic mixing valve with gauge (PEX)
Product Description
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob.
(0 gpm with recirculation).
PEX crimp: ASTM F1807.
PEX expansion: ASTM F1960.
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
85–150 °F
Maximum inlet temperature:
200 °F
Flow rate working range:
1.0-14 gpm
Material:
DZR low lead brass
Temperature gauge scale:
30–210 °F
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 521618A | 1" PEX expansion union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1", PEX expansion union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521618AC | 1" PEX expansion union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1", PEX expansion union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521517A | 3/4" PEX crimp union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 3/4", PEX crimp union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521517AC | 3/4" PEX crimp union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 3/4", PEX crimp union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521518A | 3/4" PEX expansion union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 3/4", PEX expansion union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521518AC | 3/4" PEX expansion union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 3/4", PEX expansion union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||

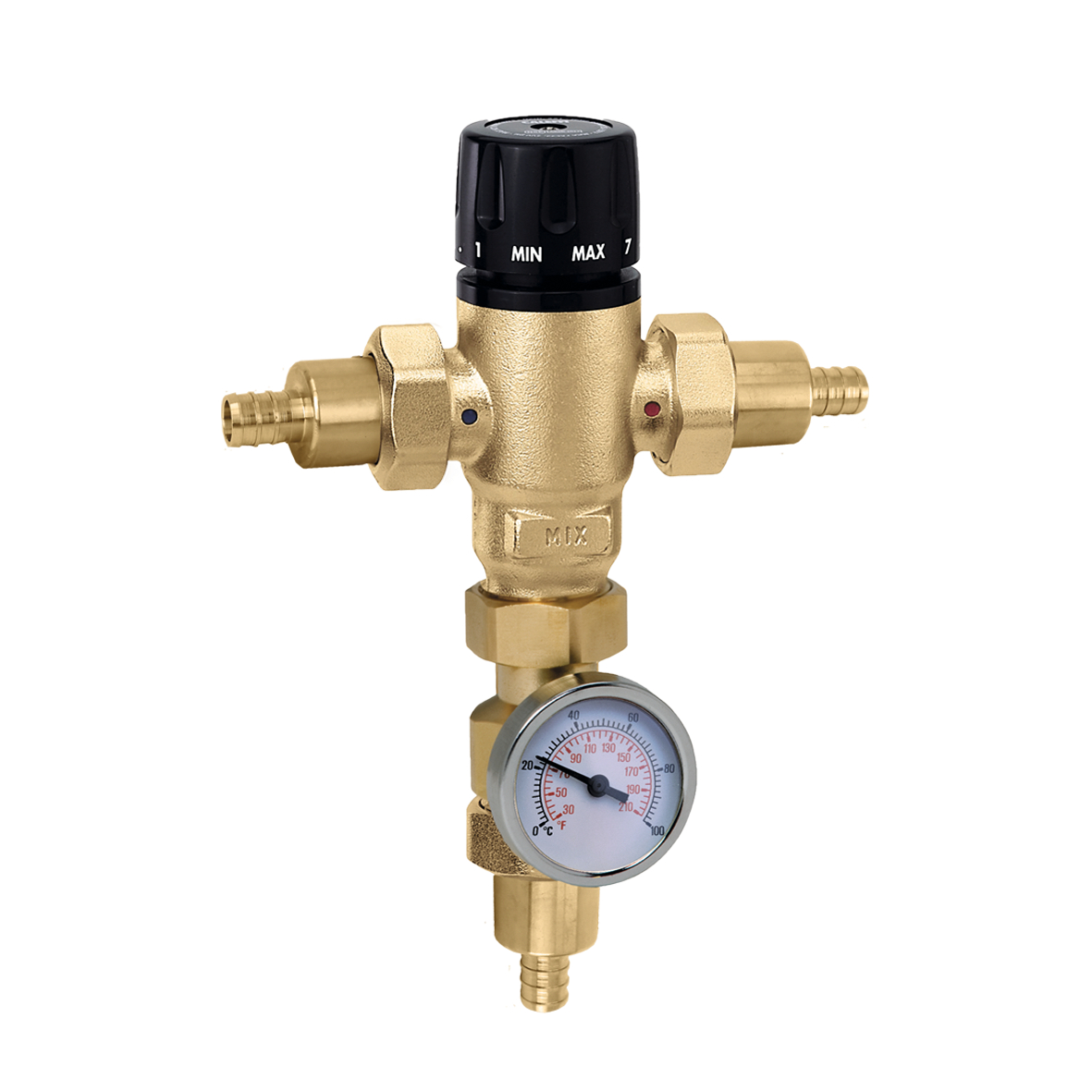

| 521417A | 1/2" PEX crimp union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1/2", PEX crimp union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521417AC | 1/2" PEX crimp union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1/2", PEX crimp union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521418A | 1/2" PEX expansion union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1/2", PEX expansion union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521418AC | 1/2" PEX expansion union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1/2", PEX expansion union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521617A | 1" PEX crimp union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1", PEX crimp union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521617AC | 1" PEX crimp union |
Includes check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (PEX)
Locking set point knob. (0 gpm with recirculation). PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1", PEX crimp union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
