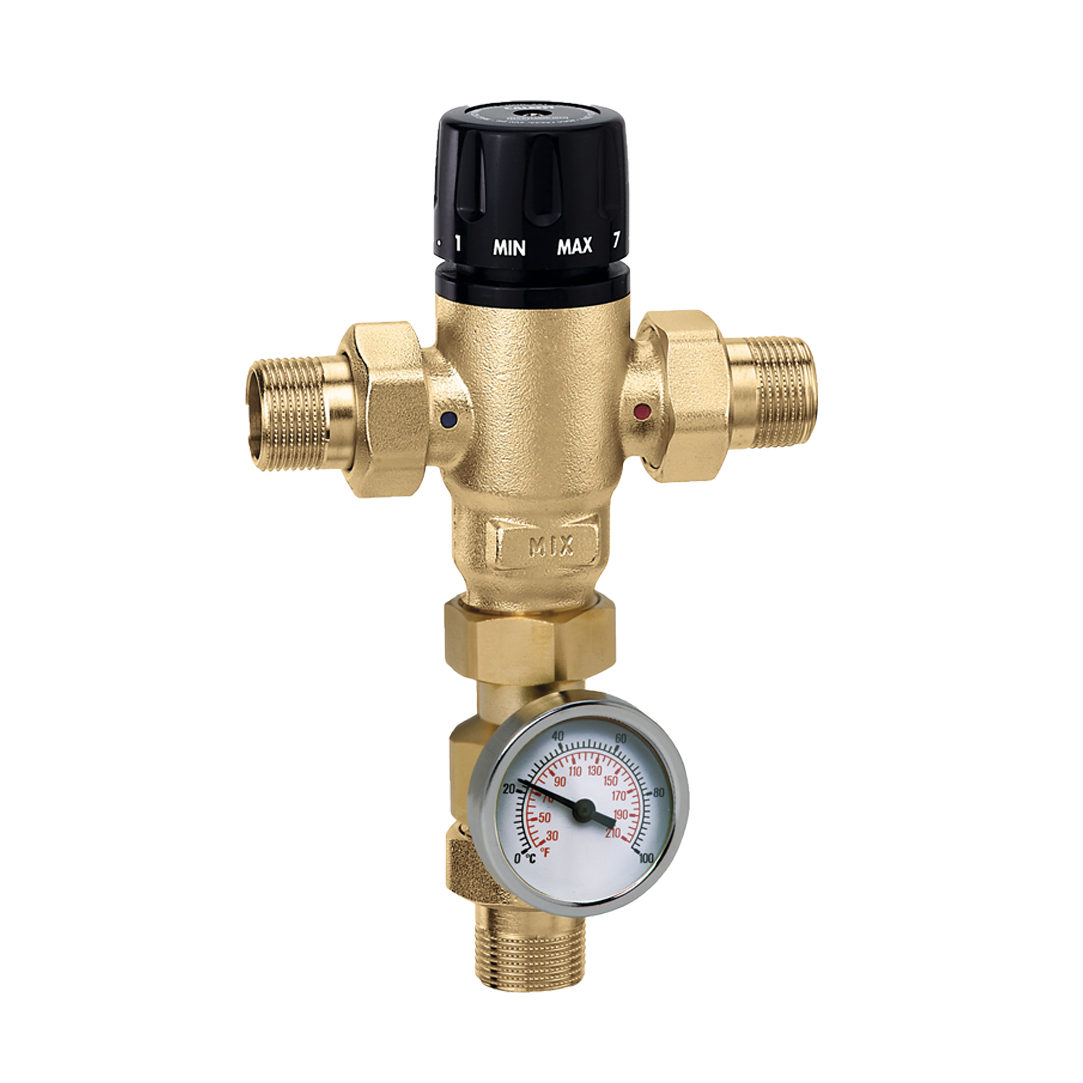

MixCal™, Adjustable thermostatic mixing valve with gauge (NPT)
Product Description
Adjustable thermostatic mixing valve with gauge (NPT)
Locking set point knob.
(0 gpm with recirculation).
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
85–150 °F
Maximum inlet temperature:
200 °F
Temperature gauge scale:
30–210 °F
Flow rate working range:
1.0-14 gpm
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Code | Connection | Note | Cv |
|---|---|---|---|
| 521410A | 1/2" MNPT union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (NPT)
Locking set point knob. (0 gpm with recirculation). connection: 1/2" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521410AC | 1/2" MNPT union |
Check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (NPT)
Locking set point knob. (0 gpm with recirculation). connection: 1/2" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521510A | 3/4" MNPT union |
- | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (NPT)
Locking set point knob. (0 gpm with recirculation). connection: 3/4" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
| 521510AC | 3/4" MNPT union |
Check valves | 3 |
|
3D models
Tender text
Adjustable thermostatic mixing valve with gauge (NPT)
Locking set point knob. (0 gpm with recirculation). connection: 3/4" MNPT, union. Maximum operating pressure: 200 psi. Adjustment temperature range: 85–150 °F. Maximum inlet temperature: 200 °F. Temperature gauge scale: 30–210 °F. Flow rate working range: 1.0-14 gpm. Cv: 3. Material: DZR low lead brass.
|
|||
