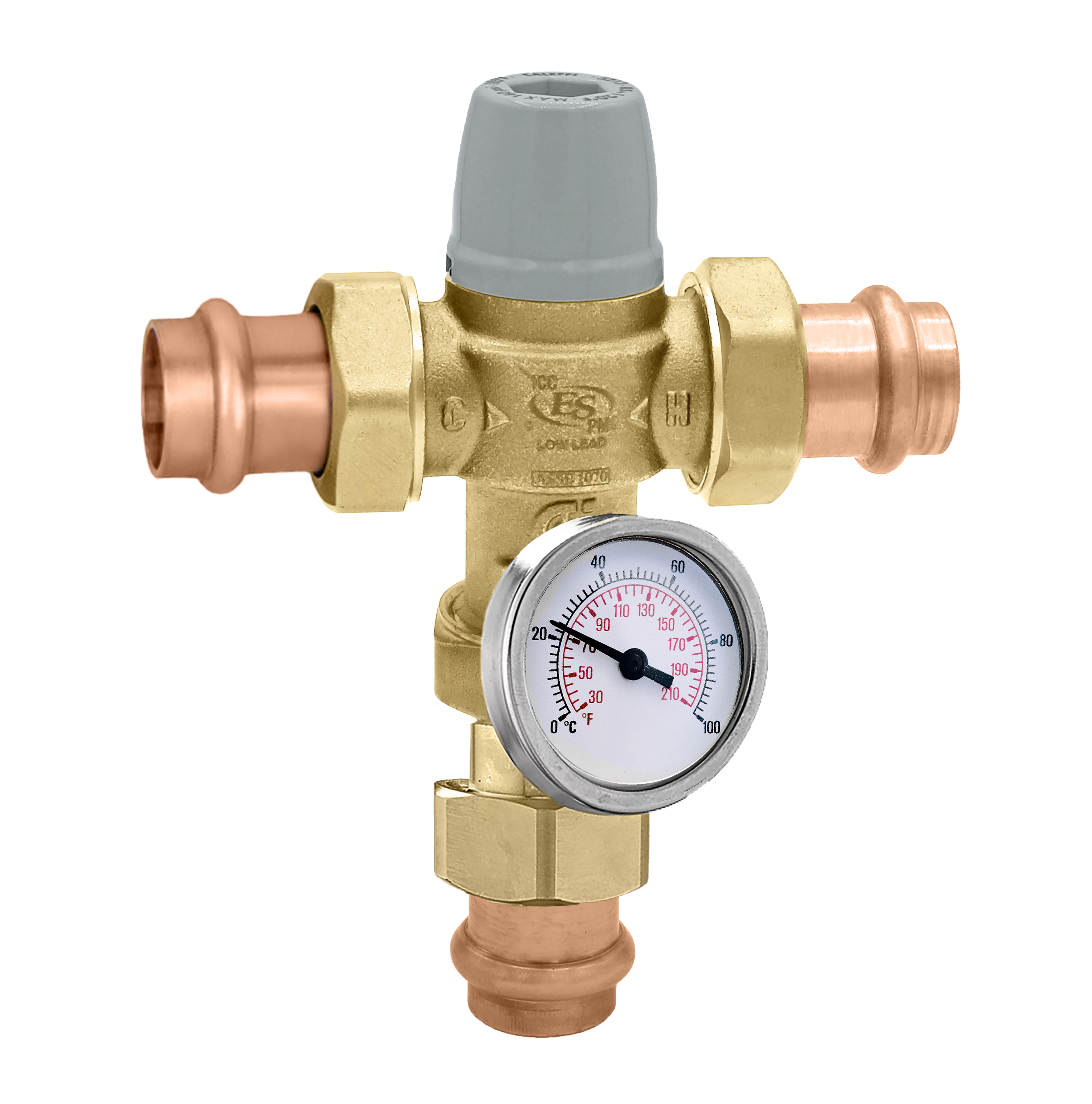

TubMixer™, Adjustable thermostatic high-flow point-of use mixing valve (press) w/ gauge
Product Description
Adjustable thermostatic high-flow point-of use mixing valve (press) w/ gauge
For Roman Tubs and other high flow fixtures. Locking set point knob.
Complete with check valves on both hot and cold inlets.
Technical data
Maximum operating pressure:
150 psi
Maximum inlet temperature:
185 °F
Adjustment temperature range (DHW):
85 – 120 ºF
Cv:
2
Adjustment temperature range:
±3 °F
pdf
Drawings and specifications
| Code | Connection | ||
|---|---|---|---|
| 521346A 002 | 1/2" press union |
||
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (press) w/ gauge
For Roman Tubs and other high flow fixtures. Locking set point knob.
Complete with check valves on both hot and cold inlets.
connection: 1/2", press union. Maximum operating pressure: 150 psi. Maximum inlet temperature: 185 °F. Adjustment temperature range (DHW): 85 – 120 ºF. Cv: 2.
|
|||
| 521356A 002 | 3/4" press union |
||
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (press) w/ gauge
For Roman Tubs and other high flow fixtures. Locking set point knob.
Complete with check valves on both hot and cold inlets.
connection: 3/4", press union. Maximum operating pressure: 150 psi. Adjustment temperature range: ±3 °F. Maximum inlet temperature: 185 °F. Adjustment temperature range (DHW): 85 – 120 ºF. Cv: 2.
|
|||
| 521366A 002 | 1" press union |
||
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (press) w/ gauge
For Roman Tubs and other high flow fixtures. Locking set point knob.
Complete with check valves on both hot and cold inlets.
connection: 1", press union. Maximum operating pressure: 150 psi. Adjustment temperature range: ±3 °F. Maximum inlet temperature: 185 °F. Adjustment temperature range (DHW): 85 – 120 ºF. Cv: 2.
|
|||
