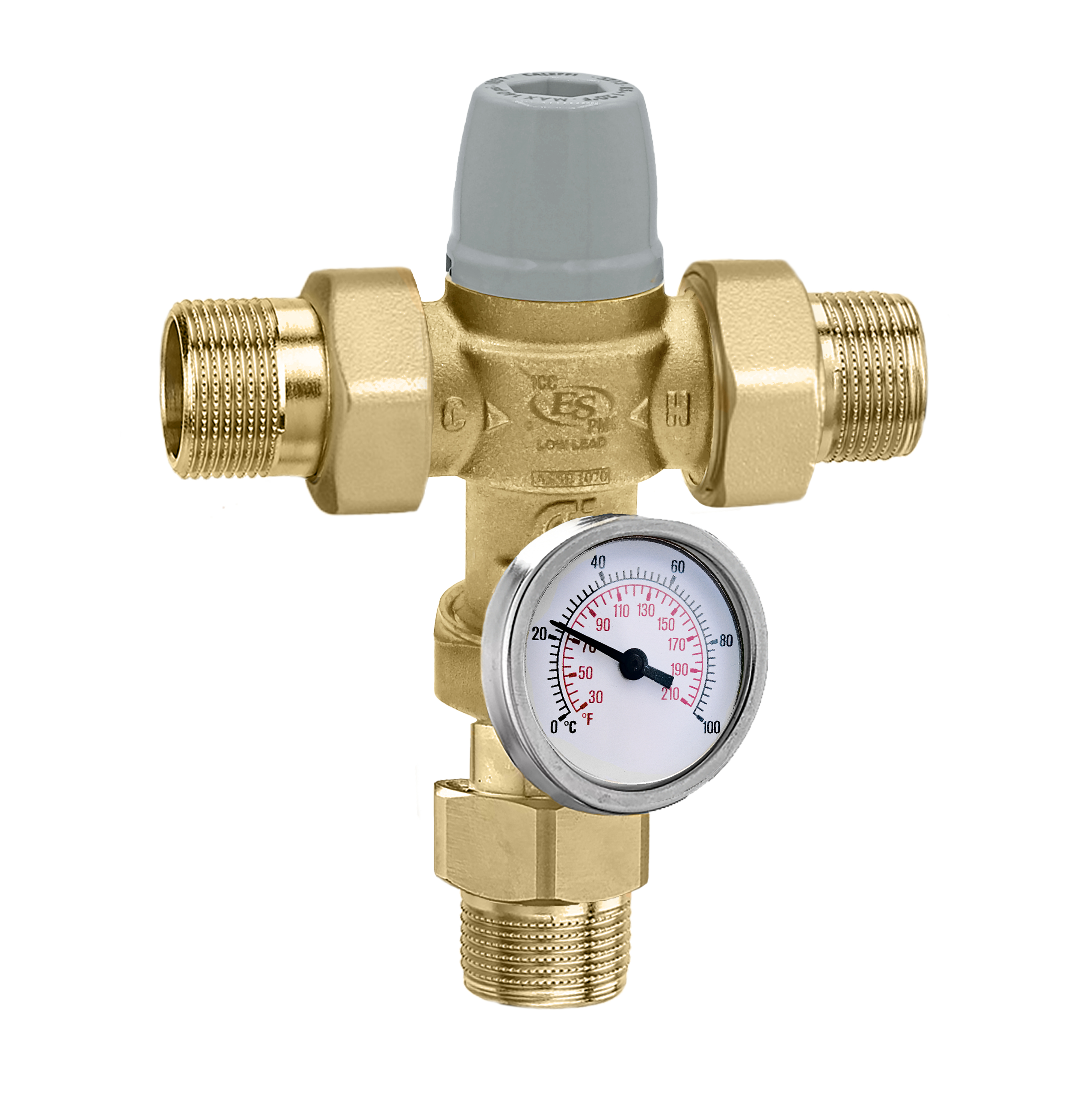

TubMixer™, Adjustable thermostatic high-flow point-of use mixing valve (NPT) w/ gauge
Product Description
Adjustable thermostatic high-flow point-of use mixing valve (NPT) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
Technical data
Maximum operating pressure:
150 psi
Adjustment temperature range:
85 – 120 °F
Maximum inlet temperature:
185 °F
Flow rate working range:
0.5 – 9 gpm
Material:
DZR low lead brass
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 521342A 002 | 1/2" MNPT union |
2 | |
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (NPT) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2" MNPT, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521352A 002 | 3/4" MNPT union |
2 | |
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (NPT) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 3/4" MNPT, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521362A 002 | 1" MNPT union |
2 | |
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (NPT) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1" MNPT, union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
