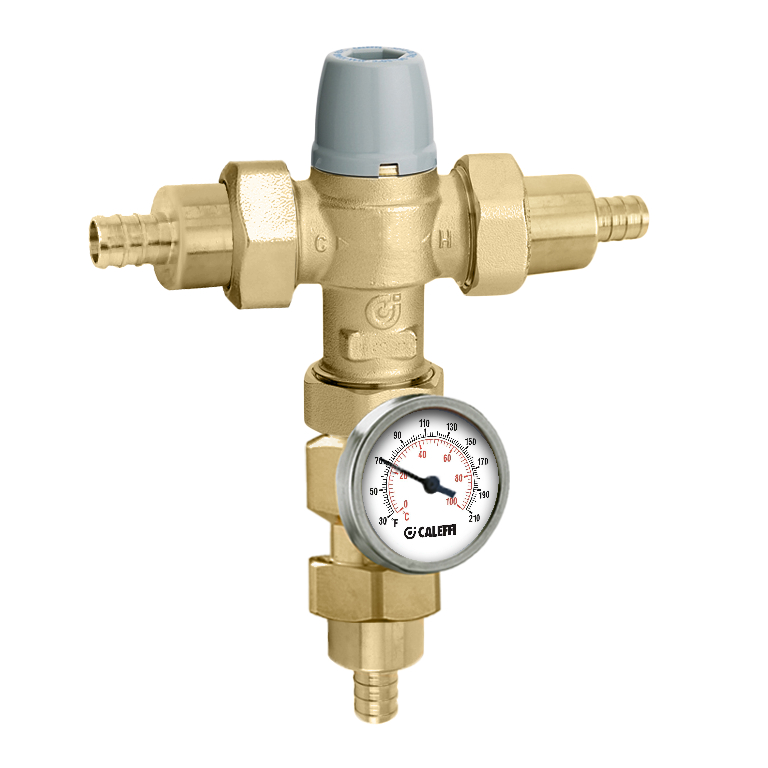

TubMixer™, Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
Product Description
Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
Technical data
Maximum operating pressure:
150 psi
Adjustment temperature range:
85 – 120 °F
Maximum inlet temperature:
185 °F
Flow rate working range:
0.5 – 9 gpm
Material:
DZR low lead brass
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 521347A 002 | 1/2" PRS PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521347A 002, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2" PRS, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521348A 002 | 1/2" PRS PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521348A 002, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2" PRS, PEX expansion union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521357A 002 | 3/4" PRS PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521357A 002, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 3/4" PRS, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521358A 002 | 3/4" PRS PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521358A 002, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 3/4" PRS, PEX expansion union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521367A 002 | 1" PRS PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521367A 002, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1" PRS, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521368A 002 | 1" PRS PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521368A 002, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX) w/ gauge
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1" PRS, PEX expansion union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
