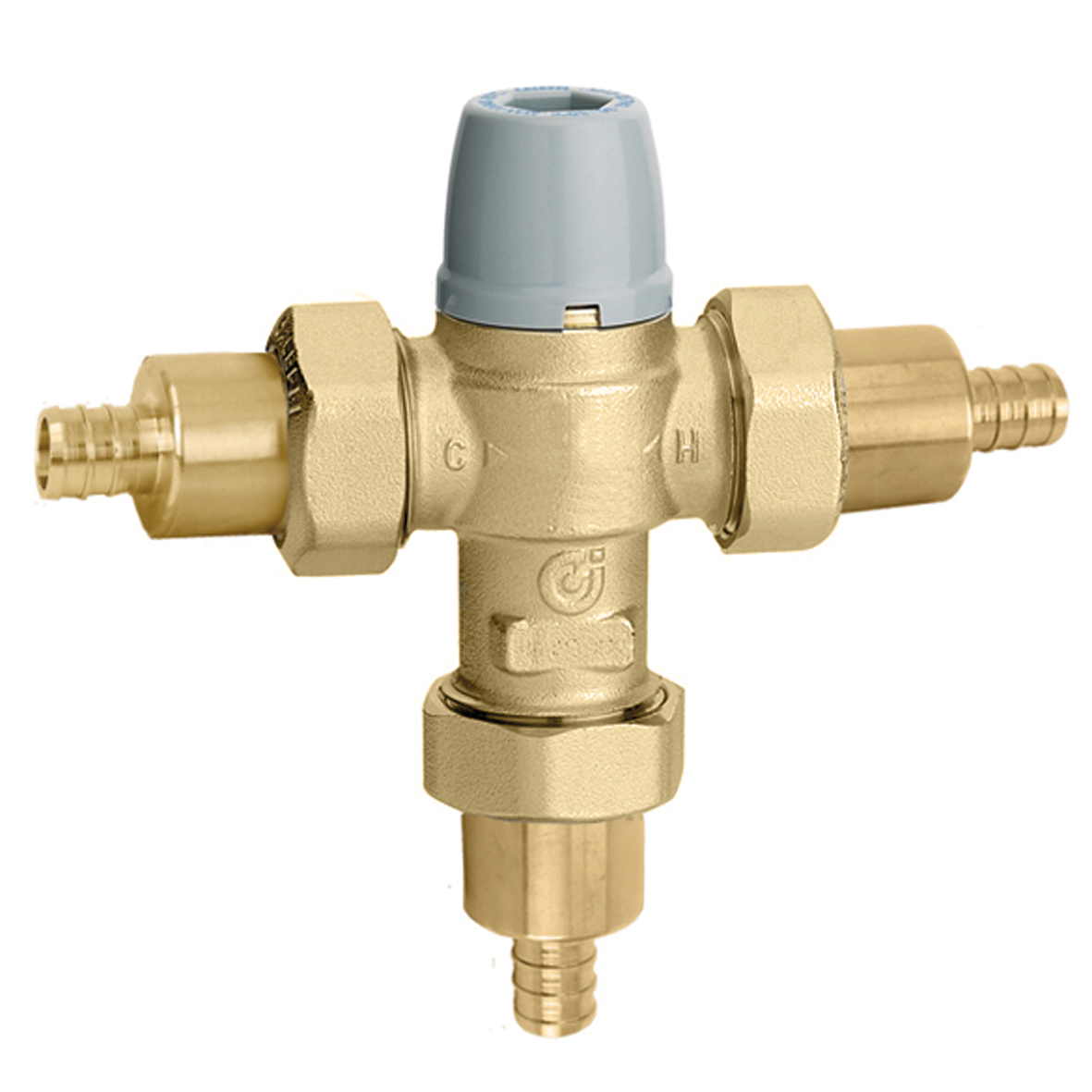

TubMixer™, Adjustable thermostatic high-flow point-of use mixing valve (PEX)
Product Description
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
Technical data
Maximum operating pressure:
150 psi
Adjustment temperature range:
85 – 120 °F
Maximum inlet temperature:
185 °F
Flow rate working range:
0.5 – 9 gpm
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 521347A | 1/2" Press PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521347A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2" PRS, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521348A | 1/2" Press PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521348A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2" Press, PEX expansion union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521357A | 3/4" Press PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521357A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 3/4" Press, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521358A | 3/4" Press PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521358A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 3/4" Press, PEX expansion union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521367A | 1" Press PEX crimp union |
2 | |
|
3D models
Tender text
CALEFFI, 521367A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1" PRS, PEX crimp union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521368A | 1" Press PEX expansion union |
2 | |
|
3D models
Tender text
CALEFFI, 521368A, TubMixer™.
Adjustable thermostatic high-flow point-of use mixing valve (PEX)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1" Press, PEX expansion union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
