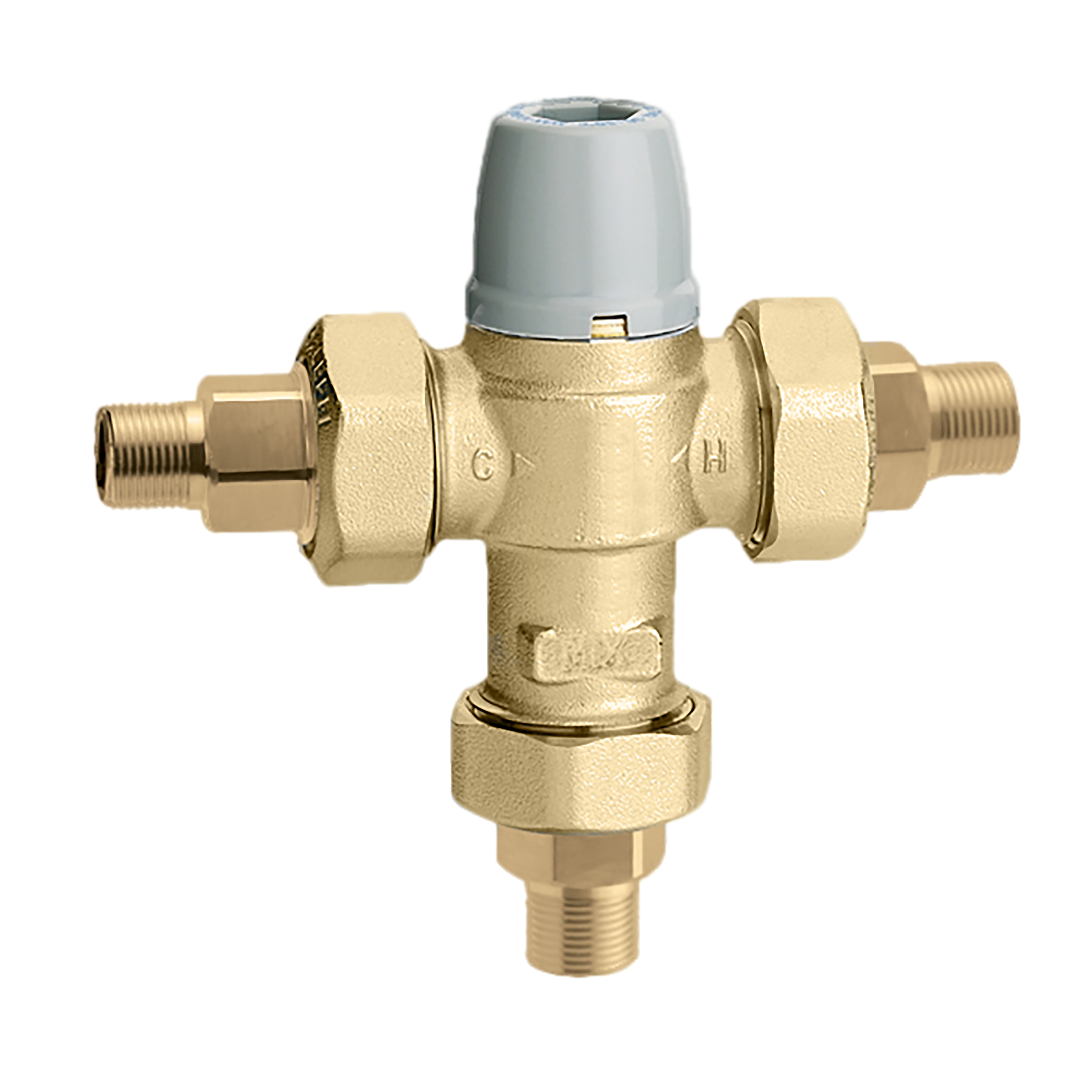

TubMixer™, Adjustable thermostatic high-flow point-of use mixing valve (compression)
Product Description
Adjustable thermostatic high-flow point-of use mixing valve (compression)
For Roman Tubs and other high flow fixtures. Locking set point knob.
Complete with check valves on both hot and cold inlets.
Technical data
Maximum operating pressure:
150 psi
Adjustment temperature range:
85–120 °F
Maximum inlet temperature:
185 °F
Flow rate working range:
0.5–9 gpm
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 521333A | 3/8" compression |
2 | |
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (compression)
For Roman Tubs and other high flow fixtures. Locking set point knob.
Complete with check valves on both hot and cold inlets.
connection: 3/8", compression. Maximum operating pressure: 150 psi. Adjustment temperature range: 85–120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5–9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
