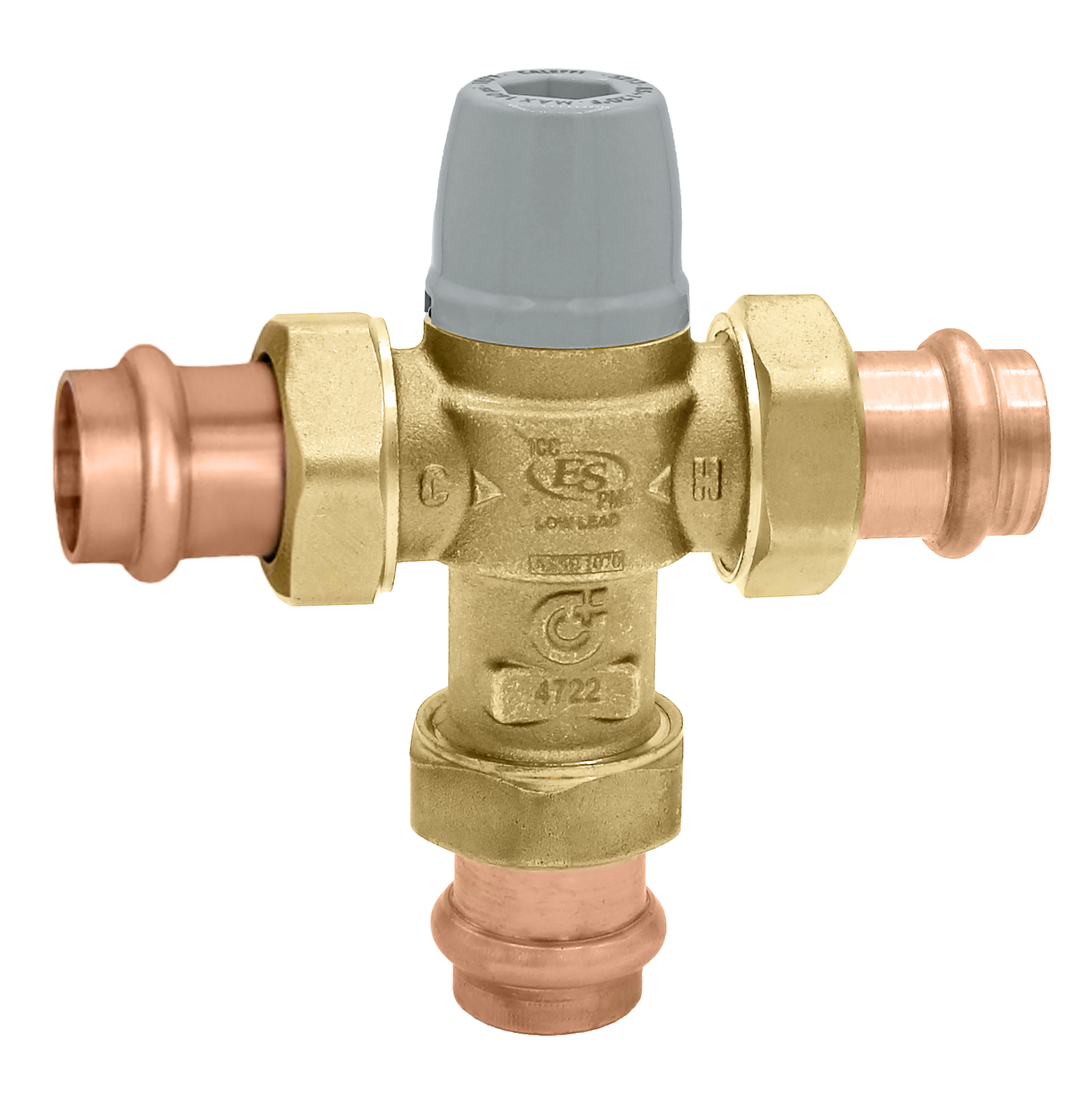

TubMixer™, Adjustable thermostatic high-flow point-of use mixing valve (press)
Product Description
Adjustable thermostatic high-flow point-of use mixing valve (press)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
Technical data
Maximum operating pressure:
150 psi
Adjustment temperature range:
85 – 120 °F
Maximum inlet temperature:
185 °F
Flow rate working range:
0.5 – 9 gpm
Material:
DZR low lead brass
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 521346A | 1/2" press union |
2 | |
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (press)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1/2", press union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521356A | 3/4" press union |
2 | |
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (press)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 3/4", press union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
| 521366A | 1" press union |
2 | |
|
3D models
Tender text
Adjustable thermostatic high-flow point-of use mixing valve (press)
For Roman Tubs and other high flow fixtures
Locking set point knob
Complete with check valves on both hot and cold inlets
connection: 1", press union. Maximum operating pressure: 150 psi. Adjustment temperature range: 85 – 120 °F. Maximum inlet temperature: 185 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2. Material: DZR low lead brass.
|
|||
