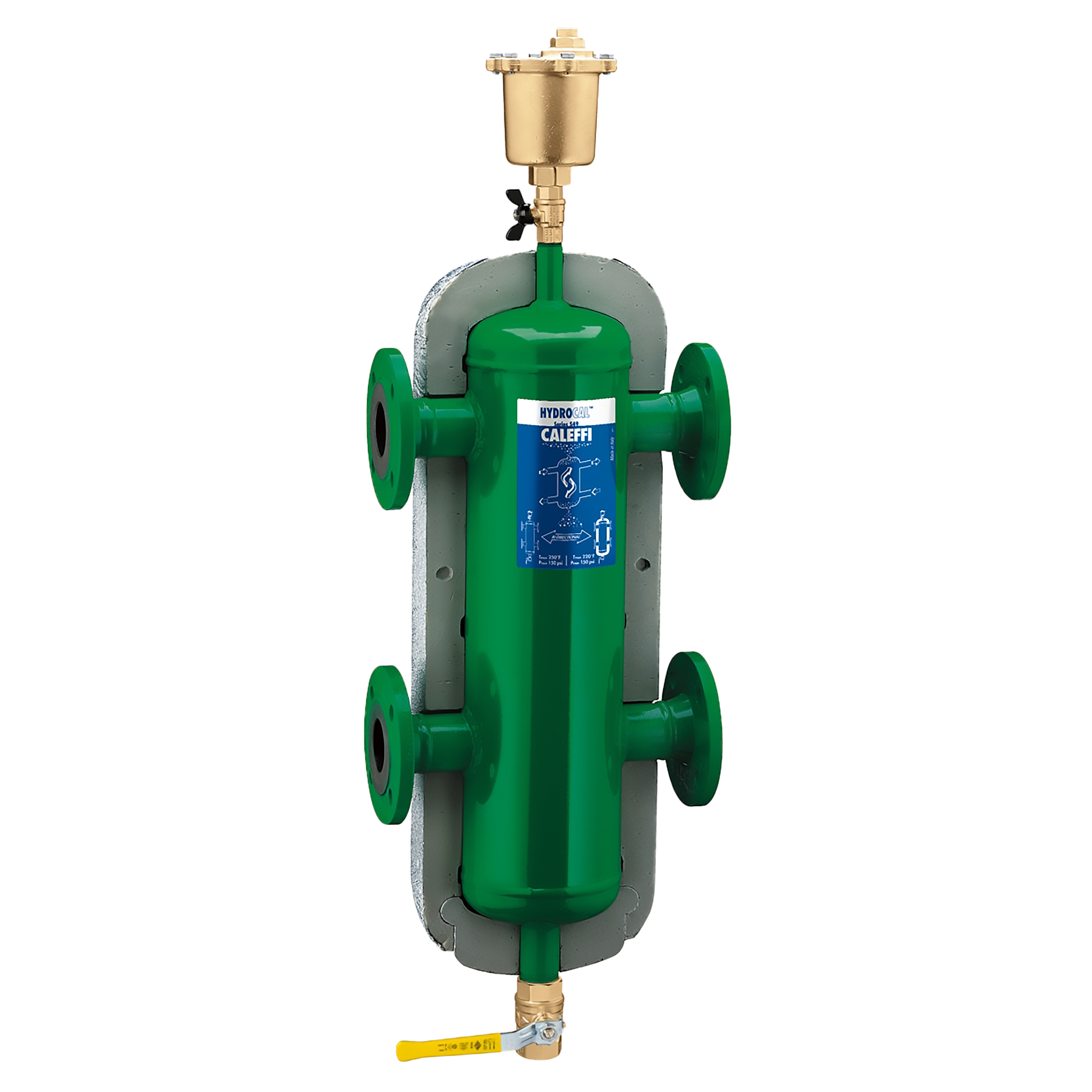

HydroCal™, 3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Product Description
3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Combination: air, hydraulic and dirt separation
Complete with:
- Air vent isolation valve
- Drain valve
- Insulation jacket (2-4" sizes)
Technical data
Maximum operating pressure:
150 psi
Fluid temperature range:
32–220 °F
Material:
steel
Note
NA prefix indicates ASME U-stamp tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered through 12"
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| NA549052A | 2" ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Combination: air, hydraulic and dirt separation
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 2" ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F. Material: steel.
|
|||
| NA549062A | 2 1/2" ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Combination: air, hydraulic and dirt separation
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 2 1/2" ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F.
|
|||
| NA549082A | 3" ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Combination: air, hydraulic and dirt separation
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 3" ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F.
|
|||
| NA549102A | 4" ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Combination: air, hydraulic and dirt separation
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 4" ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F.
SCIP code
4ea9983b-b844-4e8f-9608-f6f9bbd00989
|
|||
| NA549120A | 5'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Combination: air, hydraulic and dirt separation
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 5'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F.
|
|||
| NA549150A | 6'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
3-in-1 Hydraulic Separators (ANSI flange ASME & CRN, 2-6")
Combination: air, hydraulic and dirt separation
Complete with:
Air vent isolation valve
Drain valve
Insulation jacket (2-4" sizes)
connection: 6'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 150 psi. Fluid temperature range: 32–220 °F.
|
|||
