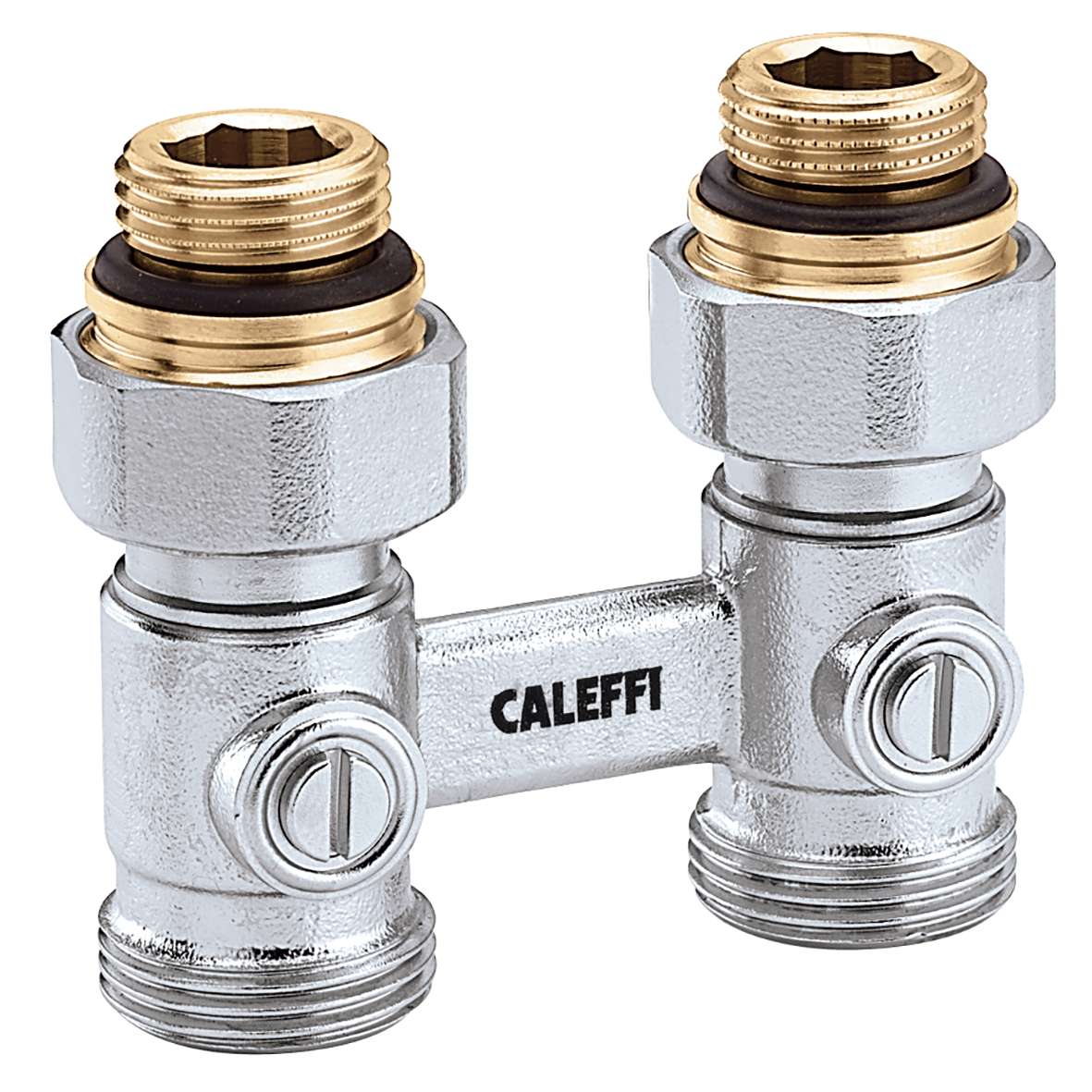

Valve for panel radiators with built-in thermostatic valve unit.
Product Description
Valve for panel radiators with built-in thermostatic valve unit.
Straight version.
One-pipe.
With adjustable by-pass.
With non-return device.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
5–100 °C
pdf
Drawings and specifications
| Part number | Radiator connection | Pipe connection | |
|---|---|---|---|
| 301043 | G 1/2" A (ISO 228-1) M |
G 3/4" A (ISO 228-1) M |
|
|
3D models
Tender text
Valve for panel radiators with built-in thermostatic valve unit.
Straight version.
One-pipe.
With adjustable by-pass.
With non-return device. Radiator connection: G 1/2" A (ISO 228-1) M. Pipe connection: G 3/4" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C.
|
|||
| 301053 | G 3/4" (ISO 228-1) F |
G 3/4" A (ISO 228-1) M |
|
|
3D models
Tender text
Valve for panel radiators with built-in thermostatic valve unit.
Straight version.
One-pipe.
With adjustable by-pass.
With non-return device. Radiator connection: G 3/4" (ISO 228-1) F. Pipe connection: G 3/4" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C.
SCIP code
1ab1cc72-7136-400d-9200-de4b74bcf86e
|
|||
