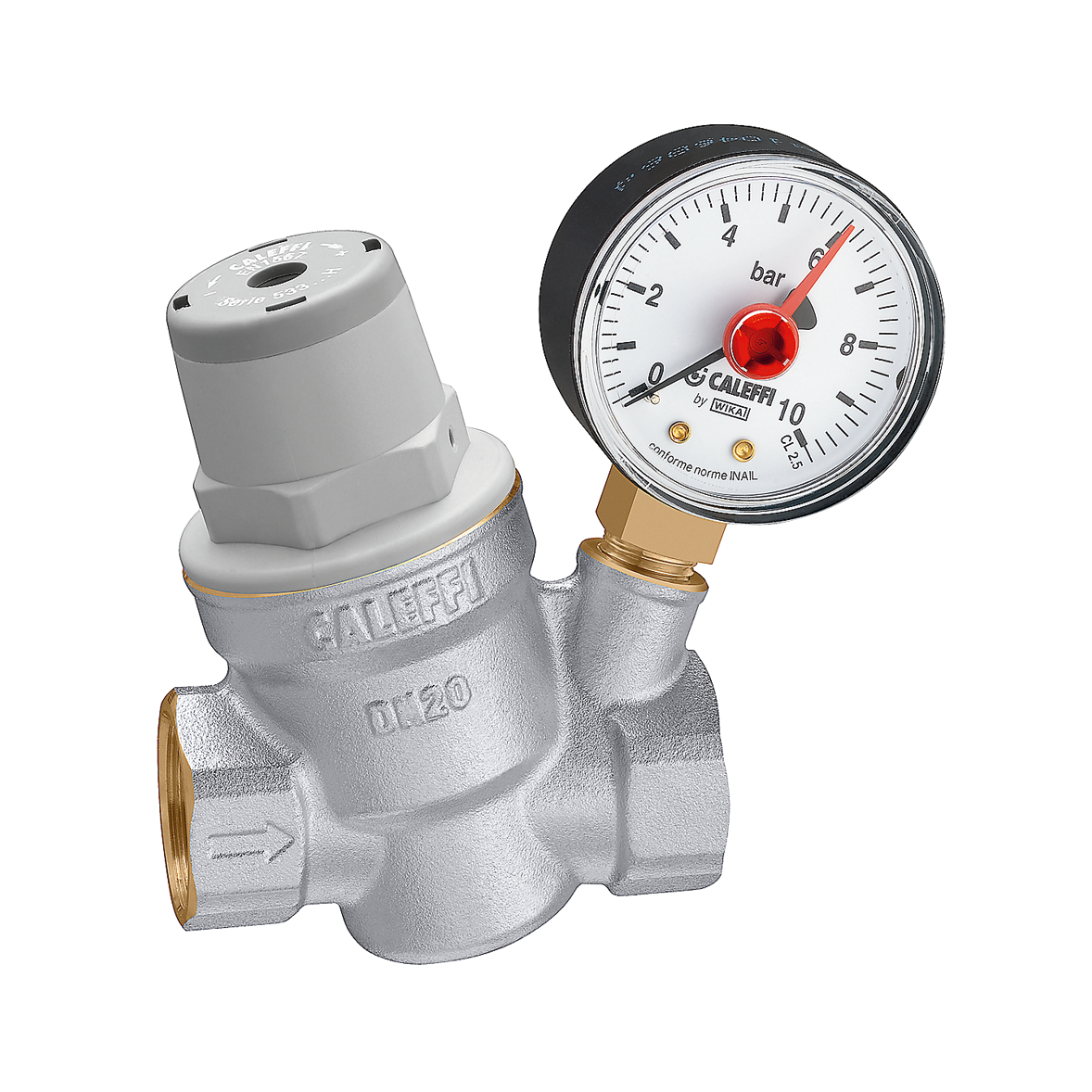

Inclined pressure reducing valve.
Product Description
Inclined pressure reducing valve.
Replaceable cartridge and strainer.
For high temperature.
With pressure gauge: 0–10 bar.
Certified to EN 1567.
Technical data
Maximum upstream pressure:
16 bar
Medium temperature range:
2–80 °C
Adjustment pressure range:
1–5,5 bar
Finish:
chrome
Material:
dezincification resistant brass DR
Certifications
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 533241H LTC | G 1/2" (ISO 228-1) F |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Inclined pressure reducing valve. Replaceable cartridge and strainer.
For high temperature.
With pressure gauge: 0–10 bar. Certified to EN 1567. Connection: G 1/2" (ISO 228-1) F. Maximum upstream pressure: 16 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–5,5 bar. Finish: chrome. Material: dezincification resistant brass DR.
SCIP code
496e20d9-4ae0-4a6f-96ac-e2ca5dd13d03
|
|||
| 533251H LTC | G 3/4" (ISO 228-1) F |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Inclined pressure reducing valve. Replaceable cartridge and strainer.
For high temperature.
With pressure gauge: 0–10 bar. Certified to EN 1567. Connection: G 3/4" (ISO 228-1) F. Maximum upstream pressure: 16 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–5,5 bar. Finish: chrome. Material: dezincification resistant brass DR.
SCIP code
496e20d9-4ae0-4a6f-96ac-e2ca5dd13d03
|
|||
