Series 6000

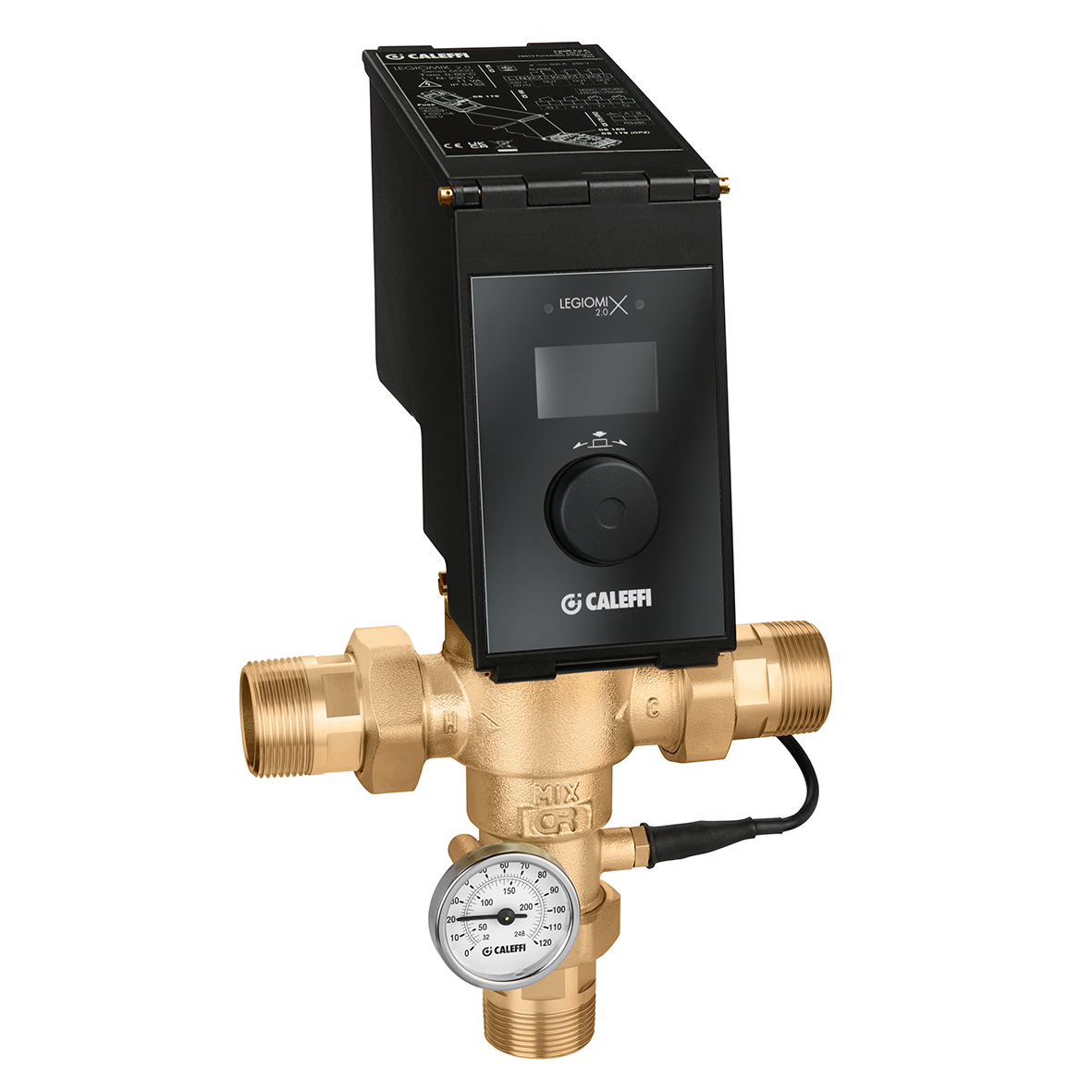

LEGIOMIX® 2.0, Hybrid electronic mixing valve.

Go to
Download high resolution

Product Description

Hybrid electronic mixing valve.
Complete with:
- hybrid mixing valve with motorised actuator;
- electronic regulator with programming of temperature levels and thermal disinfection cycles, built into the actuator casing;
- integrated flow temperature probe;
- circuit return temperature probe;
- flow temperature gauge.
Fitted for data saving function (optional), with recording of temperatures and functional parameters.
Fitted for connection to remote control system (optional).
PATENT PENDING

Technical data

Maximum working pressure: 10 bar
Medium temperature range: 0–90 °C
Adjustment temperature range: 35–65 °C
Disinfection temperature range: 50–85 °C
Electric supply: 230 V (AC)
Protection class: IP 54
Material: dezincification resistant brass DR

Certifications

CE
HY-CERT
ACS
PZH

Drawings and specifications

Part number Connection DN Kv
2D drawings
Download
Download
3D models
Download
Download
Tender text
Hybrid electronic mixing valve. Complete with: - hybrid mixing valve with motorised actuator; - electronic regulator with programming of temperature levels and thermal disinfection cycles, built into the actuator casing; - integrated flow temperature probe; - circuit return temperature probe; - flow temperature gauge. Fitted for data saving function (optional), with recording of temperatures and functional parameters. Fitted for connection to remote control system (optional). connection: R 1/2" (EN 10226-1) M. Maximum working pressure: 10 bar. Medium temperature range: 0–90 °C. Adjustment temperature range: 35–65 °C. Disinfection temperature range: 50–85 °C. Electric supply: 230 V (AC). Protection class: IP 54. DN: DN 15 (body). Kv: 4,3 m³/h. Material: dezincification resistant brass DR.
2D drawings
Download
Download
3D models
Download
Download
Tender text
Hybrid electronic mixing valve. Complete with: - hybrid mixing valve with motorised actuator; - electronic regulator with programming of temperature levels and thermal disinfection cycles, built into the actuator casing; - integrated flow temperature probe; - circuit return temperature probe; - flow temperature gauge. Fitted for data saving function (optional), with recording of temperatures and functional parameters. Fitted for connection to remote control system (optional). connection: R 3/4" (EN 10226-1) M. Maximum working pressure: 10 bar. Medium temperature range: 0–90 °C. Adjustment temperature range: 35–65 °C. Disinfection temperature range: 50–85 °C. Electric supply: 230 V (AC). Protection class: IP 54. DN: DN 20 (body). Kv: 4,3 m³/h. Material: dezincification resistant brass DR.
2D drawings
Download
Download
3D models
Download
Download
Tender text
Hybrid electronic mixing valve. Complete with: - hybrid mixing valve with motorised actuator; - electronic regulator with programming of temperature levels and thermal disinfection cycles, built into the actuator casing; - integrated flow temperature probe; - circuit return temperature probe; - flow temperature gauge. Fitted for data saving function (optional), with recording of temperatures and functional parameters. Fitted for connection to remote control system (optional). connection: R 1" (EN 10226-1) M. Maximum working pressure: 10 bar. Medium temperature range: 0–90 °C. Adjustment temperature range: 35–65 °C. Disinfection temperature range: 50–85 °C. Electric supply: 230 V (AC). Protection class: IP 54. DN: DN 25 (body). Kv: 7,6 m³/h. Material: dezincification resistant brass DR.
2D drawings
Download
Download
3D models
Download
Download
Tender text
Hybrid electronic mixing valve. Complete with: - hybrid mixing valve with motorised actuator; - electronic regulator with programming of temperature levels and thermal disinfection cycles, built into the actuator casing; - integrated flow temperature probe; - circuit return temperature probe; - flow temperature gauge. Fitted for data saving function (optional), with recording of temperatures and functional parameters. Fitted for connection to remote control system (optional). connection: R 1 1/4" (EN 10226-1) M. Maximum working pressure: 10 bar. Medium temperature range: 0–90 °C. Adjustment temperature range: 35–65 °C. Disinfection temperature range: 50–85 °C. Electric supply: 230 V (AC). Protection class: IP 54. DN: DN 32 (body). Kv: 10,0 m³/h. Material: dezincification resistant brass DR.
2D drawings
Download
Download
3D models
Download
Download
Tender text
Hybrid electronic mixing valve. Complete with: - hybrid mixing valve with motorised actuator; - electronic regulator with programming of temperature levels and thermal disinfection cycles, built into the actuator casing; - integrated flow temperature probe; - circuit return temperature probe; - flow temperature gauge. Fitted for data saving function (optional), with recording of temperatures and functional parameters. Fitted for connection to remote control system (optional). connection: R 1 1/2" (EN 10226-1) M. Maximum working pressure: 10 bar. Medium temperature range: 0–90 °C. Adjustment temperature range: 35–65 °C. Disinfection temperature range: 50–85 °C. Electric supply: 230 V (AC). Protection class: IP 54. DN: DN 40 (body). Kv: 13,0 m³/h. Material: dezincification resistant brass DR.
2D drawings
Download
Download
3D models
Download
Download
Tender text
Hybrid electronic mixing valve. Complete with: - hybrid mixing valve with motorised actuator; - electronic regulator with programming of temperature levels and thermal disinfection cycles, built into the actuator casing; - integrated flow temperature probe; - circuit return temperature probe; - flow temperature gauge. Fitted for data saving function (optional), with recording of temperatures and functional parameters. Fitted for connection to remote control system (optional). connection: R 2" (EN 10226-1) M. Maximum working pressure: 10 bar. Medium temperature range: 0–90 °C. Adjustment temperature range: 35–65 °C. Disinfection temperature range: 50–85 °C. Electric supply: 230 V (AC). Protection class: IP 54. DN: DN 50 (body). Kv: 18,0 m³/h. Material: dezincification resistant brass DR.
