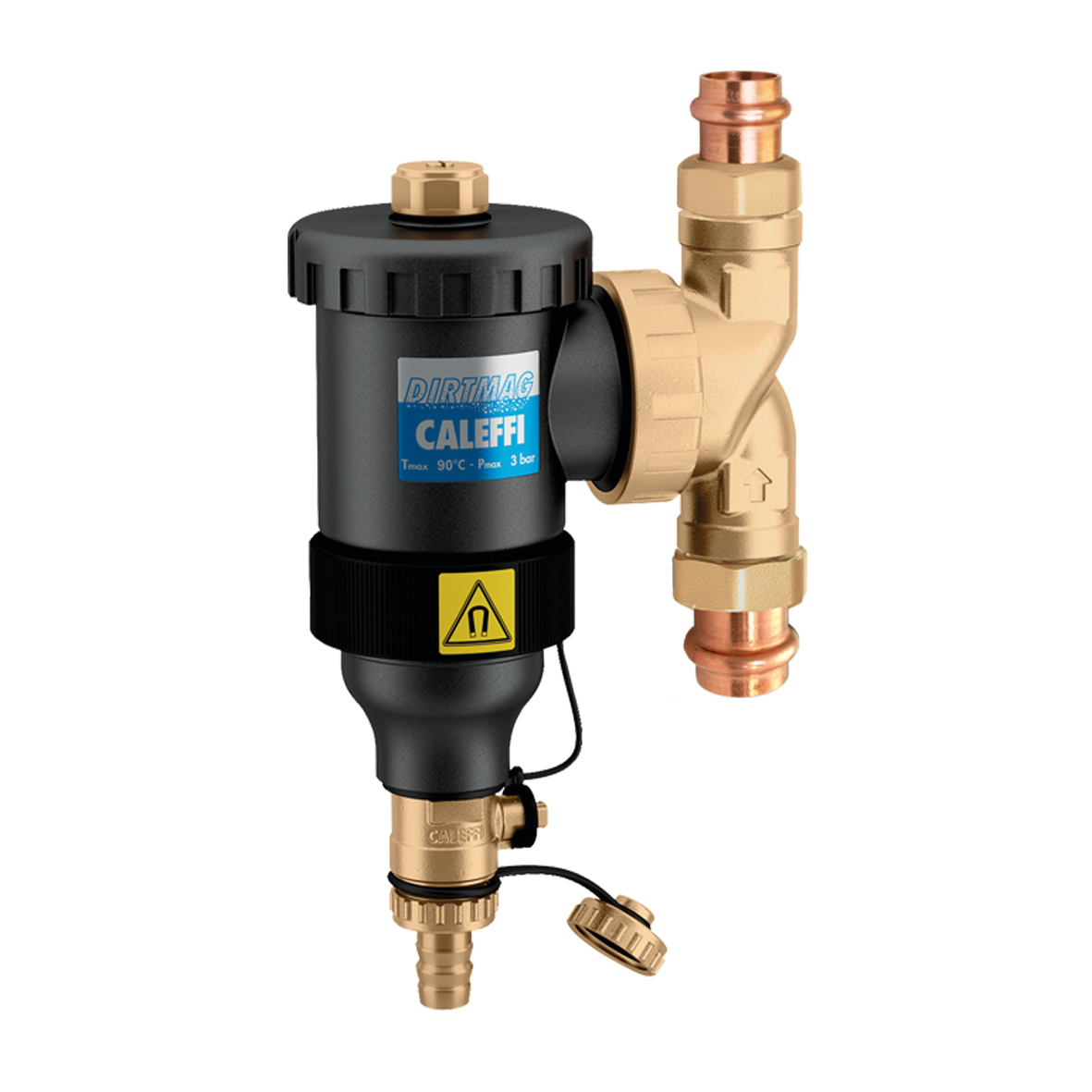

DIRTMAG®, Magnetic dirt separator
Product Description
Magnetic dirt separator
Composite body with rotating brass collar
HDPE internal element
Drain valve with hose connection
Complete with:
- External clip-on magnet
Technical data
Material:
composite/brass
Medium temperature range:
32 – 195 °F
Maximum operating pressure:
45 psi
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| NA545305 | 3/4" NPT male union |
||
|
3D models
Tender text
CALEFFI, NA545305, DIRTMAG®.
Magnetic dirt separator
Composite body with rotating brass collar
HDPE internal element
Drain valve with hose connection
Complete with:
External clip-on magnet
connection: 3/4" MNPT, union. Maximum operating pressure: 45 psi. Medium temperature range: 32 – 195 °F. Material: composite/brass.
|
|||
| NA545365 | 3/4" Press union |
||
|
3D models
Tender text
CALEFFI, NA545365, DIRTMAG®.
Magnetic dirt separator
Composite body with rotating brass collar
HDPE internal element
Drain valve with hose connection
Complete with:
External clip-on magnet
connection: 3/4" Press, press union. Maximum operating pressure: 45 psi. Medium temperature range: 32 – 195 °F. Material: composite/brass.
|
|||
| NA545395 | 3/4" sweat union |
||
|
3D models
Tender text
CALEFFI, NA545395, DIRTMAG®.
Magnetic dirt separator
Composite body with rotating brass collar
HDPE internal element
Drain valve with hose connection
Complete with:
External clip-on magnet
connection: 3/4" Press, sweat union. Maximum operating pressure: 45 psi. Medium temperature range: 32 – 195 °F. Material: composite/brass.
|
|||
| NA545306 | 1" NPT male union |
||
|
3D models
Tender text
CALEFFI, NA545306, DIRTMAG®.
Magnetic dirt separator
Composite body with rotating brass collar
HDPE internal element
Drain valve with hose connection
Complete with:
External clip-on magnet
connection: 1" MNPT, union. Maximum operating pressure: 45 psi. Medium temperature range: 32 – 195 °F. Material: composite/brass.
|
|||
| NA545366 | 1" Press union |
||
|
3D models
Tender text
CALEFFI, NA545366, DIRTMAG®.
Magnetic dirt separator
Composite body with rotating brass collar
HDPE internal element
Drain valve with hose connection
Complete with:
External clip-on magnet
connection: 1" Press, press union. Maximum operating pressure: 45 psi. Medium temperature range: 32 – 195 °F. Material: composite/brass.
|
|||
| NA545396 | 1" sweat union |
||
|
3D models
Tender text
CALEFFI, NA545396, DIRTMAG®.
Magnetic dirt separator
Composite body with rotating brass collar
HDPE internal element
Drain valve with hose connection
Complete with:
External clip-on magnet
connection: 1" Press, sweat union. Maximum operating pressure: 45 psi. Medium temperature range: 32 – 195 °F. Material: composite/brass.
|
|||
bim
