Series 536

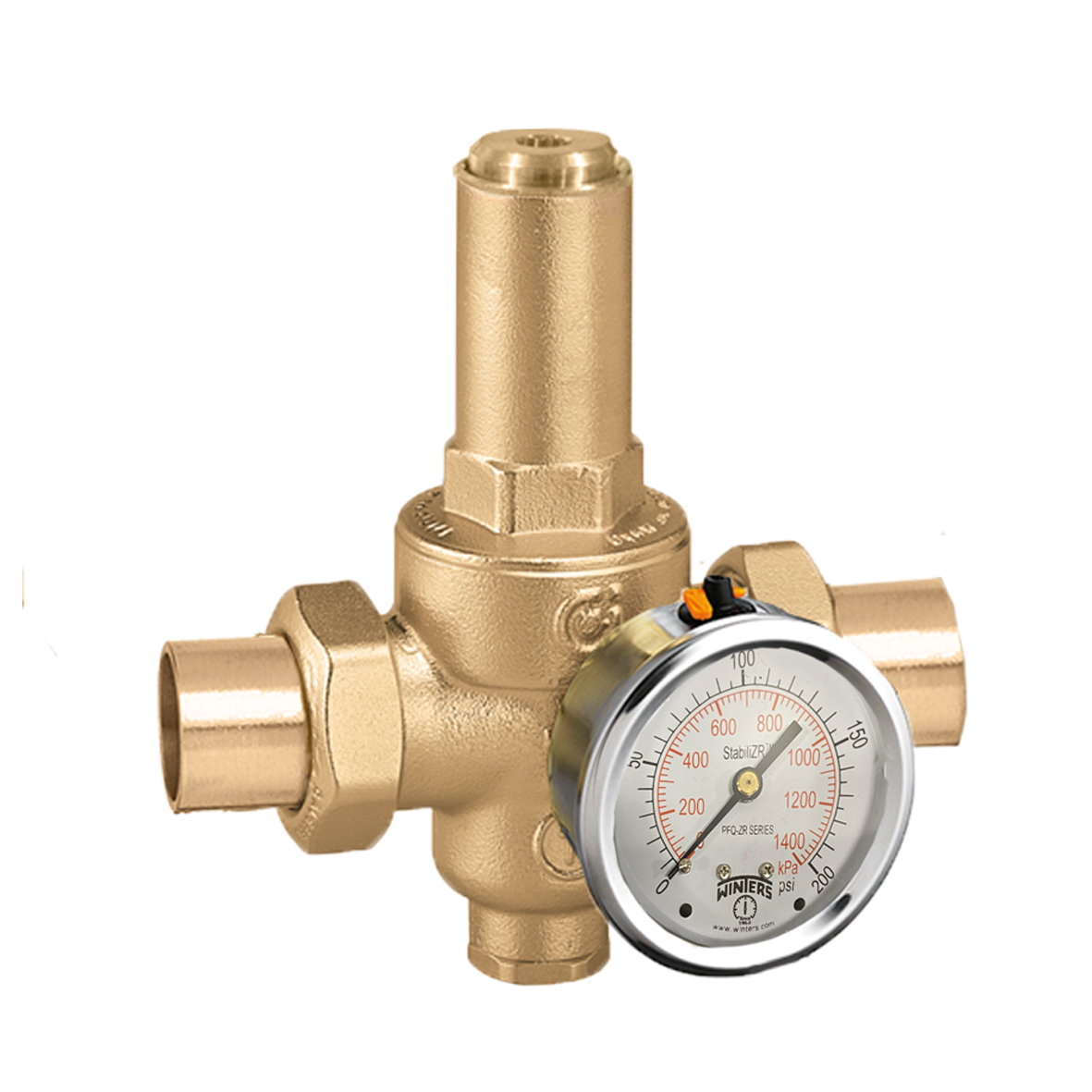

PresCal™ HP, High flow pressure reducing valve (sweat, high range)

Download high resolution

Product Description

High flow pressure reducing valve (sweat, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control.

Technical data

Maximum operating pressure: 360 psi

Fluid temperature range: 35.6–180 °F

Adjustment pressure range: 90–150 psi

Certifications

Download

Drawings and specifications

Part number	Connection	Minimum flow rate	Maximum flow rate
536043A 109	1/2" sweat	1.2 gpm	7.3 gpm
