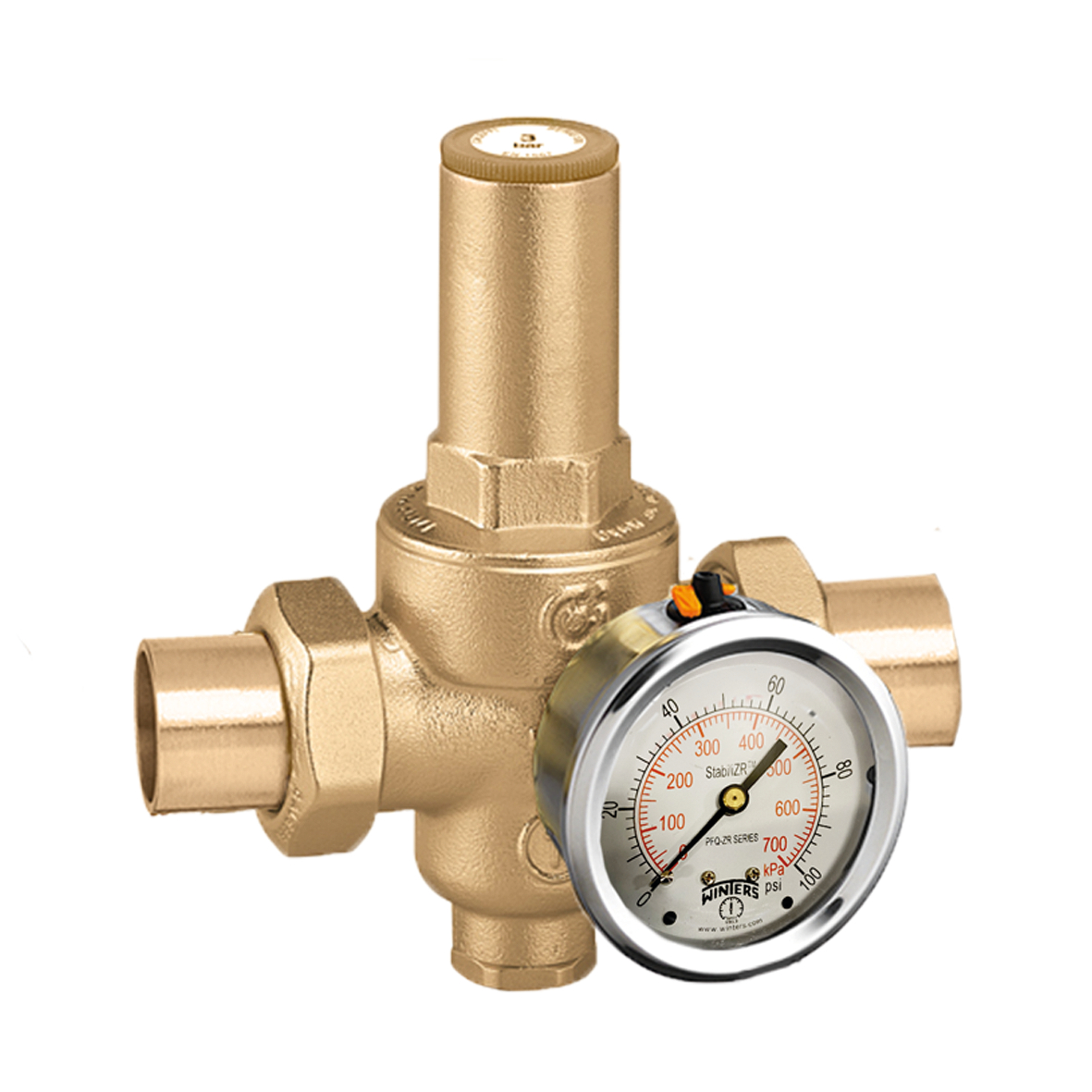

PresCal™ HP, High flow pressure reducing valve (sweat, low range)
Product Description
High flow pressure reducing valve (sweat, low range)
High performance piston type pressure reducing valve designed for demanding damage a diaphragm type PRV.
Perfect for pressure spikes are present that would damage a diaphragm type PRV.
Perfect for irrigation systems and outdoor locations in moderate non-freezing climates.
Technical data
Maximum working pressure:
300 psi
Medium temperature range:
35.6–180 °F
Setting:
45 psi
Adjustment pressure range:
10–90 psi
Certifications
![ES LOW LEAD ES LOW LEAD](/sites/default/files/certifications/ICC%20ES%20PMG-LOW%20LEAD.jpg)
![Buy American Act Buy American Act](/sites/default/files/certifications/Buy-American-Act.png)
![California HSC 116875 California HSC 116875](/sites/default/files/certifications/California-HSC-116875.png)
![Maryland HB372 Maryland HB372](/sites/default/files/certifications/Maryland-HB372.png)
![United States S.3874 United States S.3874](/sites/default/files/certifications/United-States-S.3874.png)
![Vermont Act 193 Vermont Act 193](/sites/default/files/certifications/Vermont-Act-193-.png)
![CSA B356 CSA B356](/sites/default/files/certifications/CSA-B356.png)
![ASSE 1003 ASSE 1003](/sites/default/files/certifications/ASSE1003.png)
![NSF/ANSI/CAN 61 NSF/ANSI/CAN 61](/sites/default/files/certifications/CAN-61.png)
![NSF/ANSI/CAN 372 NSF/ANSI/CAN 372](/sites/default/files/certifications/NSF-ANSI-CAN-372.png)
Download
Drawings and specifications
Part number | Connection | Minimum flow rate | Maximum flow rate |
---|---|---|---|
536044A 109 | 1/2" sweat |
1.2 gpm | 7.3 gpm |
3D models
Tender text
High flow pressure reducing valve (sweat, low range)
High performance piston type pressure reducing valve designed for demanding damage a diaphragm type PRV.
Perfect for pressure spikes are present that would damage a diaphragm type PRV. Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. Connection: 1/2", sweat. Maximum working pressure: 300 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 10–90 psi. Minimum flow rate: 1.2 gpm. Maximum flow rate: 7.3 gpm.
|
|||
536054A 109 | 3/4" sweat |
2.1 gpm | 12.5 gpm |
3D models
Tender text
High flow pressure reducing valve (sweat, low range)
High performance piston type pressure reducing valve designed for demanding damage a diaphragm type PRV.
Perfect for pressure spikes are present that would damage a diaphragm type PRV. Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. Connection: 3/4", sweat. Maximum working pressure: 300 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 10–90 psi. Minimum flow rate: 2.1 gpm. Maximum flow rate: 12.5 gpm.
|
|||
536064A 109 | 1" sweat |
3.2 gpm | 19 gpm |
3D models
Tender text
High flow pressure reducing valve (sweat, low range)
High performance piston type pressure reducing valve designed for demanding damage a diaphragm type PRV.
Perfect for pressure spikes are present that would damage a diaphragm type PRV. Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. Connection: 1", sweat. Maximum working pressure: 300 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 10–90 psi. Minimum flow rate: 3.2 gpm. Maximum flow rate: 19 gpm.
|
|||
536074A 109 | 1 1/4" sweat |
5.3 gpm | 34 gpm |
3D models
Tender text
High flow pressure reducing valve (sweat, low range)
High performance piston type pressure reducing valve designed for demanding damage a diaphragm type PRV.
Perfect for pressure spikes are present that would damage a diaphragm type PRV. Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. Connection: 1 1/4", sweat. Maximum working pressure: 300 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 10–90 psi. Minimum flow rate: 5.3 gpm. Maximum flow rate: 34 gpm.
|
|||
536084A 109 | 1 1/2" sweat |
7.3 gpm | 44 gpm |
3D models
Tender text
High flow pressure reducing valve (sweat, low range)
High performance piston type pressure reducing valve designed for demanding damage a diaphragm type PRV.
Perfect for pressure spikes are present that would damage a diaphragm type PRV. Perfect for irrigation systems and outdoor locations in moderate non-freezing climates. Connection: 1 1/2", sweat. Maximum working pressure: 300 psi. Medium temperature range: 35.6–180 °F. Setting: 45 psi. Adjustment pressure range: 10–90 psi. Minimum flow rate: 7.3 gpm. Maximum flow rate: 44 gpm.
|
