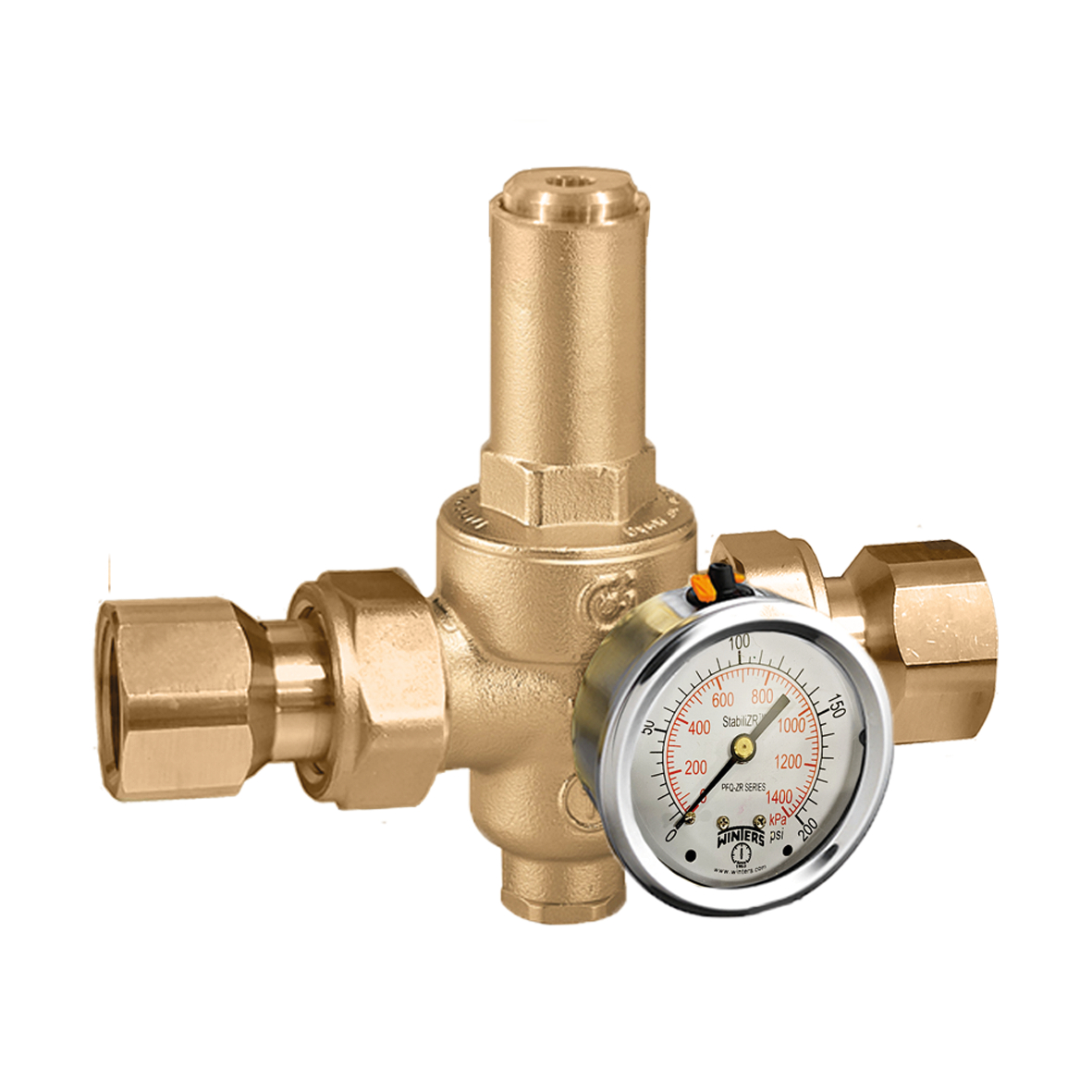

PresCal™ HP, High flow pressure reducing valve (NPT, high range)
Product Description
High flow pressure reducing valve (NPT, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control.
Technical data
Maximum operating pressure:
360 psi
Medium temperature range:
35.6–180 °F
Adjustment pressure range:
90–150 psi
Certifications
pdf
Drawings and specifications
| Part number | Connection | Minimum flow rate | Maximum flow rate |
|---|---|---|---|
| 536043A 103 | 1/2" FNPT |
1.2 gpm | 7.3 gpm |
|
3D models
Tender text
High flow pressure reducing valve (NPT, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control. connection: 1/2" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 35.6–180 °F. Adjustment pressure range: 90–150 psi. Minimum flow rate: 1.2 gpm. Maximum flow rate: 7.3 gpm.
|
|||
| 536053A 103 | 3/4" FNPT |
2.1 gpm | 12.5 gpm |
|
3D models
Tender text
High flow pressure reducing valve (NPT, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control. connection: 3/4" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 35.6–180 °F. Adjustment pressure range: 90–150 psi. Minimum flow rate: 2.1 gpm. Maximum flow rate: 12.5 gpm.
|
|||
| 536063A 103 | 1" FNPT |
3.2 gpm | 19 gpm |
|
3D models
Tender text
High flow pressure reducing valve (NPT, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control. connection: 1" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 35.6–180 °F. Adjustment pressure range: 90–150 psi. Minimum flow rate: 3.2 gpm. Maximum flow rate: 19 gpm.
|
|||
| 536073A 103 | 1 1/4" FNPT |
5.3 gpm | 34 gpm |
|
3D models
Tender text
High flow pressure reducing valve (NPT, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control. connection: 1 1/4" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 35.6–180 °F. Adjustment pressure range: 90–150 psi. Minimum flow rate: 5.3 gpm. Maximum flow rate: 34 gpm.
|
|||
| 536083A 103 | 1 1/2" FNPT |
7.3 gpm | 44 gpm |
|
3D models
Tender text
High flow pressure reducing valve (NPT, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control. connection: 1 1/2" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 35.6–180 °F. Adjustment pressure range: 90–150 psi. Minimum flow rate: 7.3 gpm. Maximum flow rate: 44 gpm.
|
|||
| 536093A 103 | 2" FNPT |
11.5 gpm | 70 gpm |
|
3D models
Tender text
High flow pressure reducing valve (NPT, high range)
High performance piston type pressure reducing valve for high rise buildings and other applications where high pressures are present and require staged pressure control.
The 536A series carries out the first stage pressure reduction in a two valve series where the pressure ratio between the inlet and outlet would be too high for a single pressure reducing valve to control. connection: 2" FNPT. Maximum operating pressure: 360 psi. Medium temperature range: 35.6–180 °F. Adjustment pressure range: 90–150 psi. Minimum flow rate: 11.5 gpm. Maximum flow rate: 70 gpm.
|
|||
bim
Caleffi Rep Locator
Find your nearest Caleffi Representative
Faq - Frequent questions
I have a pressure rise problem downstream of the pressure reducing valve, what can I do?
It may be a problem of a dirty reducing valve or a rise in pressure due to a rise in temperature downstream of the reducing valve as the result of a boiler without an expansion vessel. To check, just switch off the boiler to see whether the pressure rises or not.If there is no domestic water heating system, the reducing valve is dirty. Normally, you will only have to clean the cartridge to reset correct operations.
