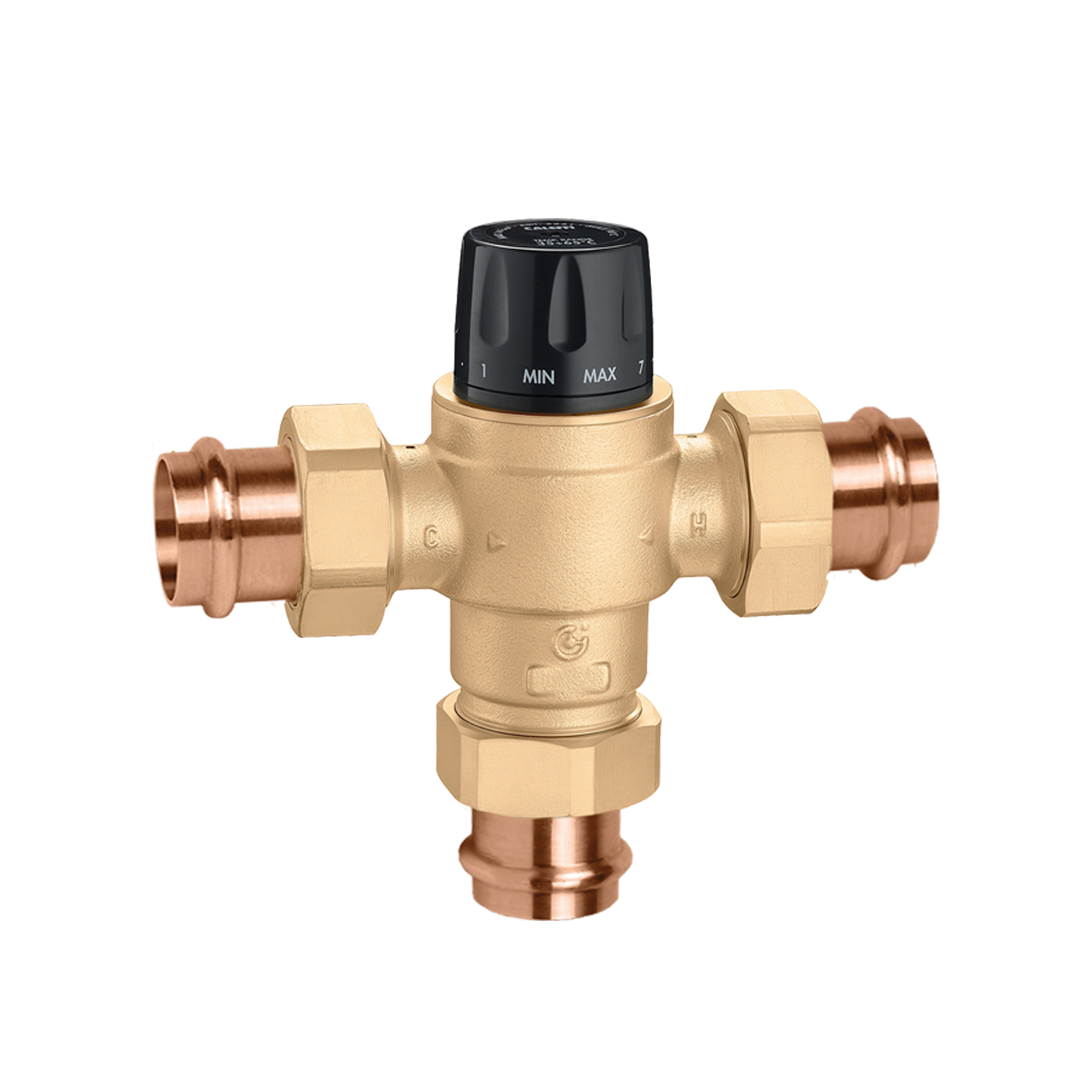

MixCal+™, High flow adjustable thermostatic mixing valve (press)
Product Description
High flow adjustable thermostatic mixing valve (press)
Technical data
Maximum operating pressure:
200 psi
Adjustment temperature range:
95–150 °F
Maximum inlet temperature:
195 °F
Material:
DZR low lead brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Flow rate working range | Cv |
|---|---|---|---|
| 523166A | 1" press union |
4.4–40 gpm | 7 |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (press)
Connection: 1", press union. Maximum working pressure: 200 psi. Adjustment temperature range: 95–150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 4.4–40 gpm. Cv: 7. Material: low lead brass.
|
|||
| 523176A | 1 1/4" press union |
4.4–40 gpm | 7 |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (press)
Connection: 1 1/4", press union. Maximum working pressure: 200 psi. Adjustment temperature range: 95–150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 4.4–40 gpm. Cv: 7. Material: low lead brass.
|
|||
| 523186A | 1 1/2" press union |
8.8–70 gpm | 17 |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (press)
Connection: 1 1/2", press union. Maximum working pressure: 200 psi. Adjustment temperature range: 95–150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 8.8–70 gpm. Cv: 17. Material: low lead brass.
|
|||
| 523196A | 2" press union |
8.8–70 gpm | 18 gpm |
|
3D models
Tender text
High flow adjustable thermostatic mixing valve (press)
Connection: 2", press union. Maximum working pressure: 200 psi. Adjustment temperature range: 95–150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 8.8–70 gpm. Cv: 18 gpm. Material: low lead brass.
|
|||
