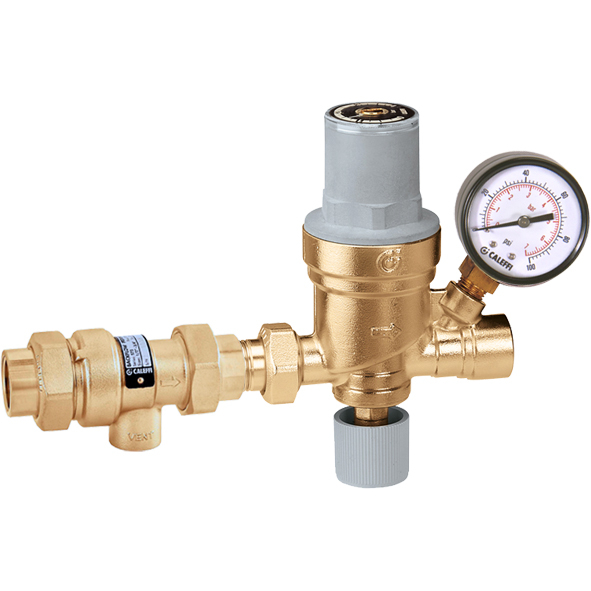

AutoFill™, Automatic filling valve with backflow preventer and pressure gauge
Product Description
Automatic filling valve with backflow preventer and pressure gauge
Pre-adjustable automatic filling valve with backflow preventer.
Technical data
Fluid temperature range:
40–150 °F
Adjustment pressure range:
3–60 psi
Pressure gauge scale:
0—60 psi
Pressure gauge scale - Notes:
0–4 bar
Material:
brass
pdf
Drawings and specifications
| Part number | Inlet Connection | Outlet Connection | Note |
|---|---|---|---|
| 573012A | 1/2" FNPT union |
1/2" FNPT |
- |
|
3D models
Tender text
Automatic filling valve with backflow preventer and pressure gauge
Pre-adjustable automatic filling valve with backflow preventer.
Inlet Connection: 1/2" FNPT, union. Outlet Connection: 1/2" FNPT. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 573016A | 1/2" press union |
1/2" press |
Inlet fittings |
|
3D models
Tender text
Automatic filling valve with backflow preventer and pressure gauge
Pre-adjustable automatic filling valve with backflow preventer.
Inlet Connection: 1/2", press union. Outlet Connection: 1/2", press. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 573017A | 1/2" press union |
1/2" FNPT |
- |
|
3D models
Tender text
Automatic filling valve with backflow preventer and pressure gauge
Pre-adjustable automatic filling valve with backflow preventer.
Inlet Connection: 1/2", press union. Outlet Connection: 1/2" FNPT. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
| 573019A | 1/2" sweat union |
1/2" FNPT |
- |
|
3D models
Tender text
Automatic filling valve with backflow preventer and pressure gauge
Pre-adjustable automatic filling valve with backflow preventer.
Inlet Connection: 1/2", sweat union. Outlet Connection: 1/2" FNPT. Fluid temperature range: 40–150 °F. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0–4 bar). Material: brass.
|
|||
