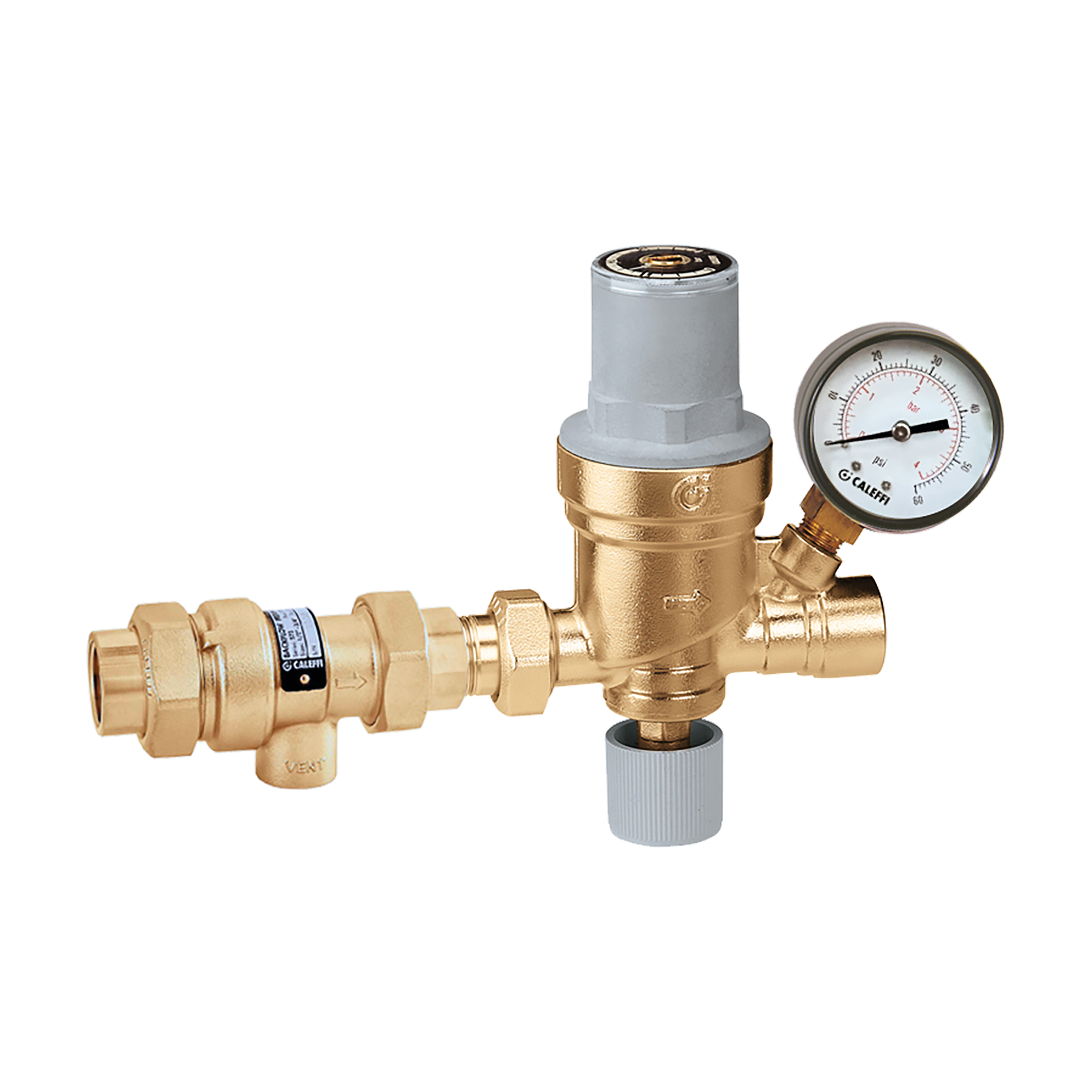

AutoFill™, Automatic filling valve with backflow preventer
Product Description
Automatic filling valve with backflow preventer
Pre-adjustable automatic filling valve with backflow preventer.
Technical data
Maximum working pressure:
175 psi
Maximum upstream pressure:
175 psi
Medium temperature range:
41–150 °F, 40–150 °F
Setting:
15 psi
Adjustment pressure range:
3–60 psi
Pressure gauge scale:
0–60 psi, 0—60 psi
Pressure gauge scale - Notes:
0–4 bar , 0—4 bar
Material:
brass
pdf
Drawings and specifications
| Part number | IN connection | OUT connection | Note |
|---|---|---|---|
| 573002A | 1/2" FNPT union |
1/2" FNPT |
- |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Automatic filling valve with backflow preventer
Pre-adjustable automatic filling valve with backflow preventer.
IN connection: 1/2" FNPT, union. OUT connection: 1/2" FNPT. Maximum working pressure: 175 psi. Maximum upstream pressure: 175 psi. Medium temperature range: 41–150 °F. Setting: 15 psi. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0–60 psi (0–4 bar). Material: brass.
|
|||
| 573006A | 1/2" press union |
1/2" FNPT |
Inlet fittings |
|
3D models
Tender text
Automatic filling valve with backflow preventer
Pre-adjustable automatic filling valve with backflow preventer.
IN connection: 1/2", press union. OUT connection: 1/2" FNPT. Maximum working pressure: 175 psi. Medium temperature range: 40–150 °F. Setting: 15 psi. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0—4 bar ). Material: brass.
|
|||
| 573007A | 1/2" press union |
1/2" FNPT |
- |
|
3D models
Tender text
Automatic filling valve with backflow preventer
Pre-adjustable automatic filling valve with backflow preventer.
IN connection: 1/2", press union. OUT connection: 1/2" FNPT. Maximum upstream pressure: 175 psi. Medium temperature range: 40–150 °F. Setting: 15 psi. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0—60 psi (0—4 bar ). Material: brass.
|
|||
| 573009A | 1/2" sweat union |
1/2" FNPT |
- |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Automatic filling valve with backflow preventer
Pre-adjustable automatic filling valve with backflow preventer.
IN connection: 1/2", sweat union. OUT connection: 1/2" FNPT. Maximum working pressure: 175 psi. Maximum upstream pressure: 175 psi. Medium temperature range: 41–150 °F. Setting: 15 psi. Adjustment pressure range: 3–60 psi. Pressure gauge scale: 0–60 psi (0–4 bar). Material: brass.
|
|||
igs
stp
bim
DWS
