AngleMix™, Angled thermostatic mixing valve (press)
Product Description

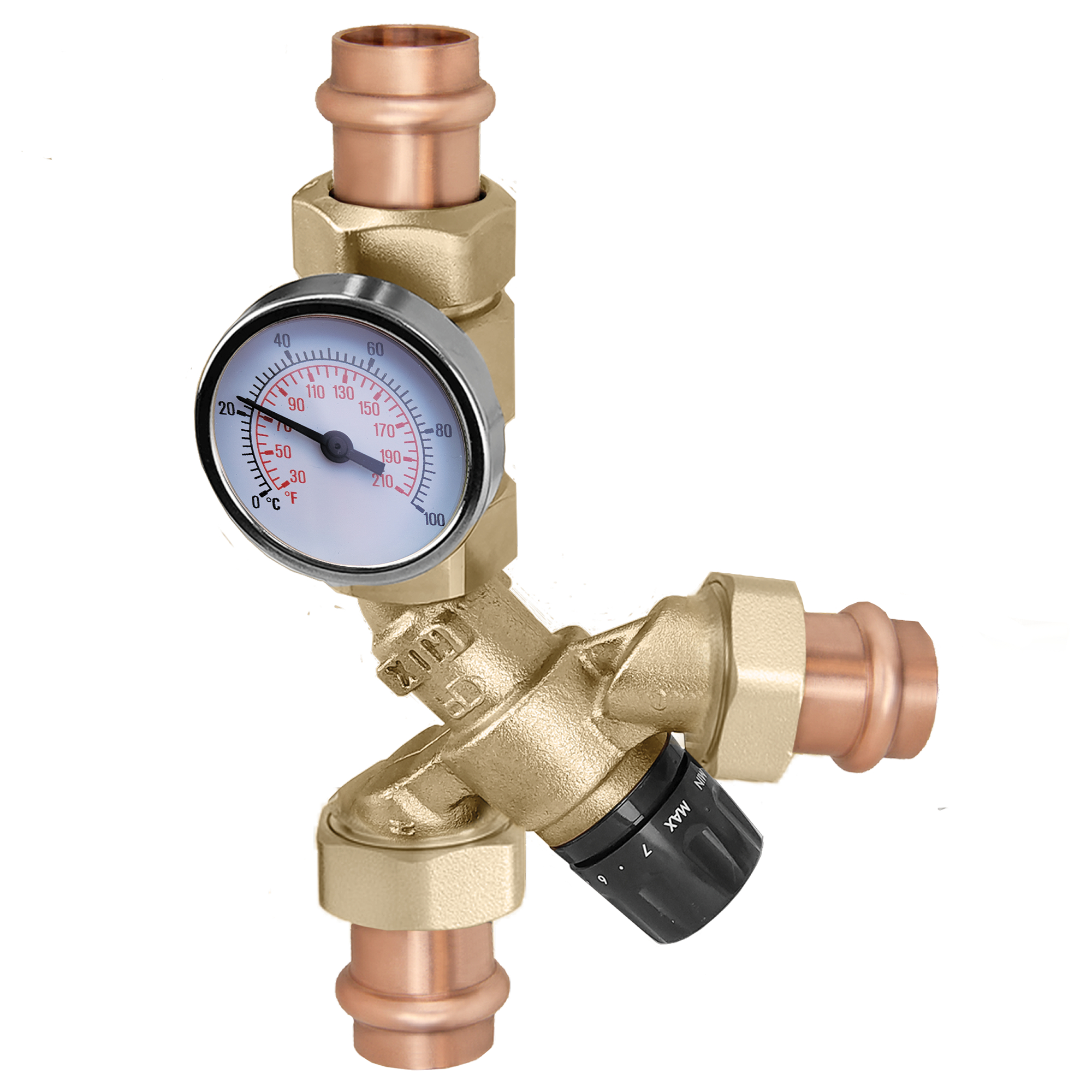

Angled thermostatic mixing valve (press)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
Technical data
Maximum static operating pressure:
150 psi
Maximum dynamic operating pressure:
75 psi
Adjustment temperature range:
95 – 150 °F
Maximum inlet temperature:
195 °F
Flow rate working range:
0.5 – 9 gpm
Material:
DZR low lead brass
Note
*Meets the "lead free" requirement of Section 1417 of the Safe Drinking Water Act (SDWA). This product has a weighted average lead content of less than 0.25% for its wetted surfaces contacted with consumable water.
Certifications













Download
Drawings and specifications
Part number | Connection | Note | Cv |
---|---|---|---|
520416A | 1/2" press union |
- | 2.0 |
3D models
Tender text
Angled thermostatic mixing valve (press)
connection: 1/2", press union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0. Material: DZR low lead brass.
|
|||
520416AC | 1/2" press union |
Check valves | 2.0 |
3D models
Tender text
Angled thermostatic mixing valve (press)
connection: 1/2", press union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0. Material: DZR low lead brass.
|
|||
520516A | 3/4" press union |
- | 2.0 |
3D models
Tender text
Angled thermostatic mixing valve (press)
connection: 3/4", press union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0. Material: DZR low lead brass.
|
|||
520516AC | 3/4" press union |
Check valves | 2.0 |
3D models
Tender text
Angled thermostatic mixing valve (press)
connection: 3/4", press union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0. Material: DZR low lead brass.
|
|||
520616A 001 | 1" press union |
- | 2.0 |
3D models
Tender text
Angled thermostatic mixing valve (press)
connection: 1", press union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0. Material: DZR low lead brass.
|
|||
520616AC 001 | 1" press union |
Check valves | 2.0 |
3D models
Tender text
Angled thermostatic mixing valve (press)
connection: 1", press union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Cv: 2.0. Material: DZR low lead brass.
|
