AngleMix™, Angled thermostatic mixing valve (PEX)
Product Description
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
Technical data
Maximum static operating pressure:
150 psi
Maximum dynamic operating pressure:
75 psi
Adjustment temperature range:
95 – 150 °F
Maximum inlet temperature:
195 °F
Flow rate working range:
0.5 – 9 gpm
Material:
DZR low lead brass
Note
*Meets the "lead free" requirement of Section 1417 of the Safe Drinking Water Act (SDWA). This product has a weighted average lead content of less than 0.25% for its wetted surfaces contacted with consumable water.
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 520414A | 1/2" Press PEX crimp union |
- | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520414A, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1/2" Press, PEX crimp union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520414AC | 1/2" Press PEX crimp union |
Check valves | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520414AC, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1/2" Press, PEX crimp union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520415A | 1/2" Press PEX expansion union |
- | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520415A, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1/2" Press, PEX expansion union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520415AC | 1/2" Press PEX expansion union |
Check valves | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520415AC, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1/2" Press, PEX expansion union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||

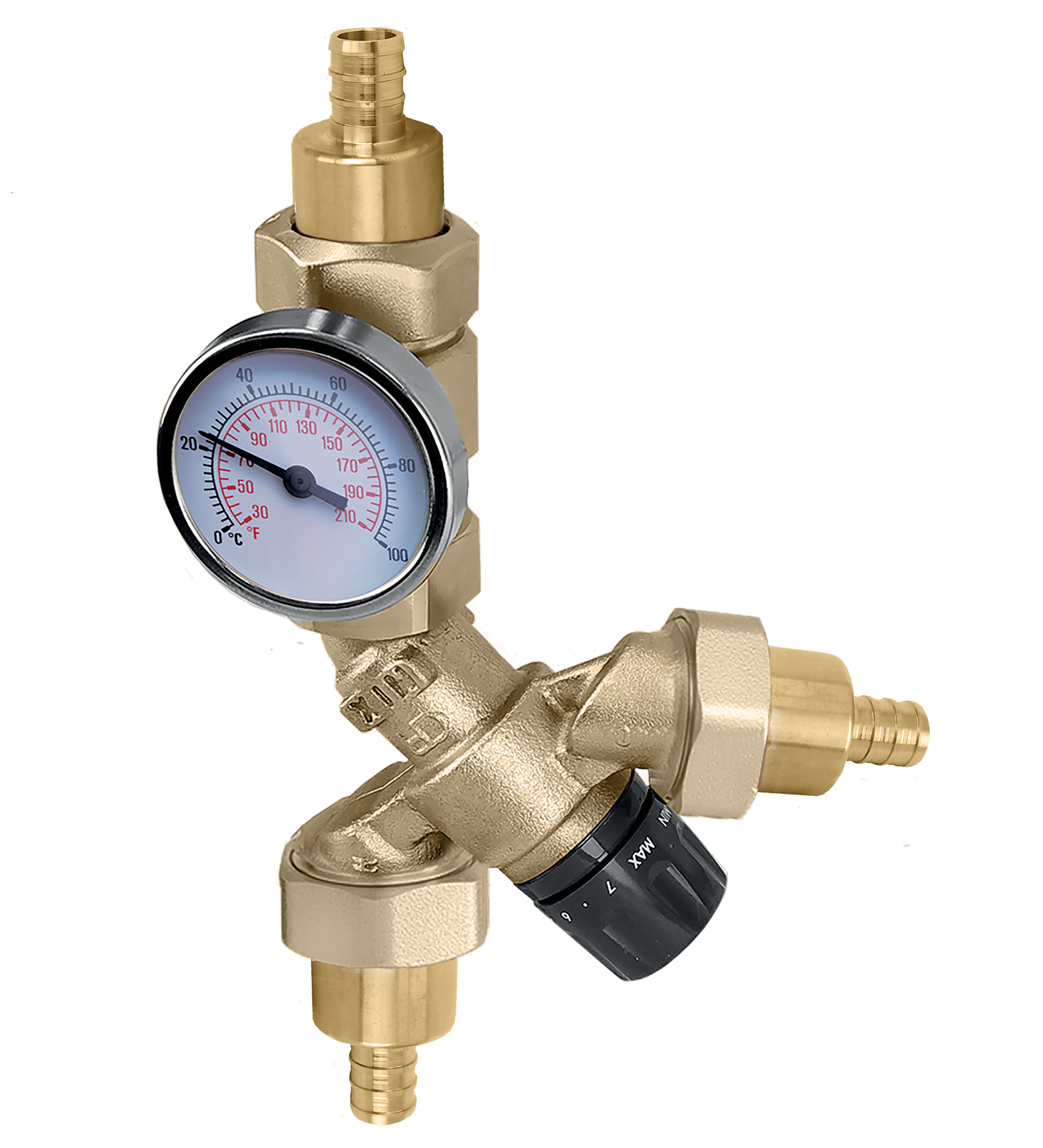

| 520514A | 3/4" Press PEX crimp union |
- | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520514A, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 3/4" Press, PEX crimp union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520514AC | 3/4" Press PEX crimp union |
Check valves | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520514AC, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 3/4" Press, PEX crimp union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520515A | 3/4" Press PEX expansion union |
- | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520515A, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 3/4" Press, PEX expansion union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520515AC | 3/4" Press PEX expansion union |
Check valves | 2.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 520515AC, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 3/4" Press, PEX expansion union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520614A 001 | 1" Press PEX crimp union |
- | 2.0 |
|
3D models
Tender text
CALEFFI, 520614A 001, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1" Press, PEX crimp union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520614AC 001 | 1" Press PEX crimp union |
Check valves | 2.0 |
|
3D models
Tender text
CALEFFI, 520614AC 001, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1" Press, PEX crimp union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520615A 001 | 1" Press PEX expansion union |
- | 2.0 |
|
3D models
Tender text
CALEFFI, 520615A 001, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1" Press, PEX expansion union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
| 520615AC 001 | 1" Press PEX expansion union |
- | 2.0 |
|
3D models
Tender text
CALEFFI, 520615AC 001, AngleMix™.
Angled thermostatic mixing valve (PEX)
For use in point of distribution applications
Adjustment knob with set point locking mechanism
Optional: Inlet check valves
connection: 1" Press, PEX expansion union. Maximum static operating pressure: 150 psi. Maximum dynamic operating pressure: 75 psi. Adjustment temperature range: 95 – 150 °F. Maximum inlet temperature: 195 °F. Flow rate working range: 0.5 – 9 gpm. Cv: 2.0. Material: DZR low lead brass.
|
|||
igs
stp
bim
